D-Pillar Moulding: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: LH side shown, RH side similar.

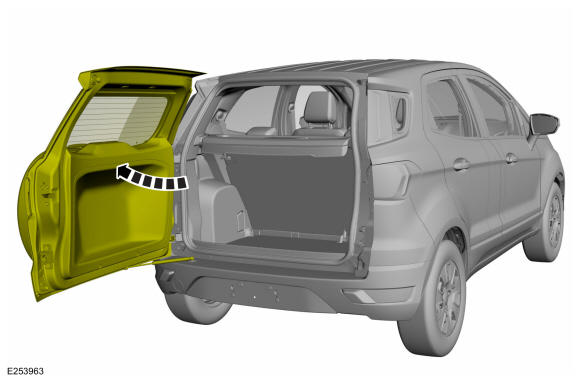

Carefully open the liftgate.

Courtesy of FORD MOTOR COMPANY

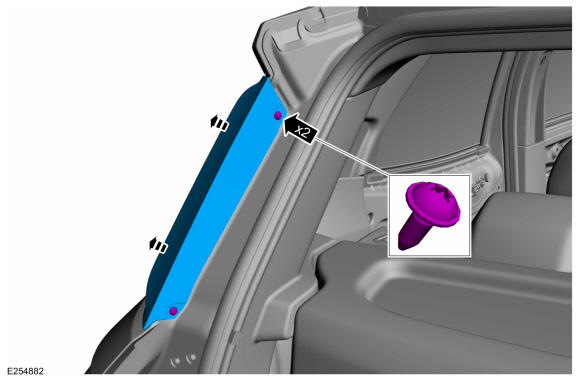

Remove the D-pillar moulding screws and remove the D-pillar moulding.

Courtesy of FORD MOTOR COMPANY
