D-Pillar Moulding: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE:
Make sure that a new component is installed.

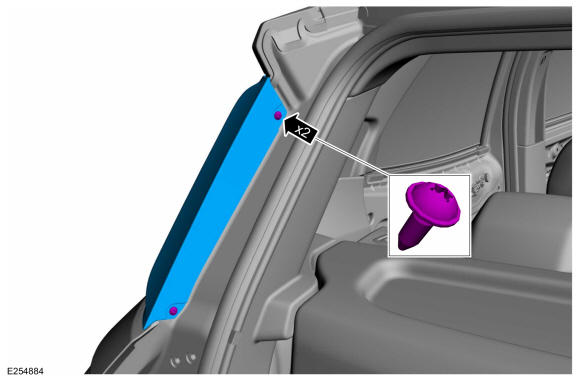

Install the D-pillar moulding.
Torque: 15 lb.in (1.7 Nm)
 Courtesy of FORD MOTOR COMPANY
|

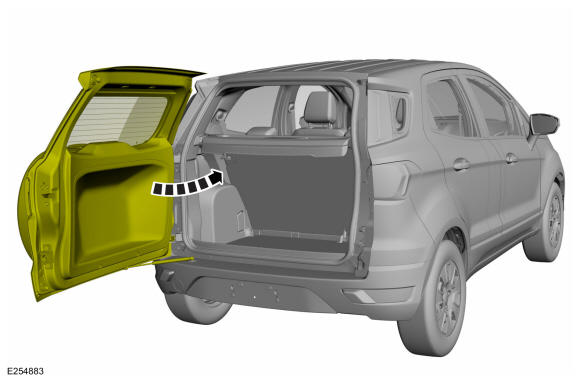

- Carefully close the liftgate.
 Courtesy of FORD MOTOR COMPANY
|
