A-Pillar Moulding: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

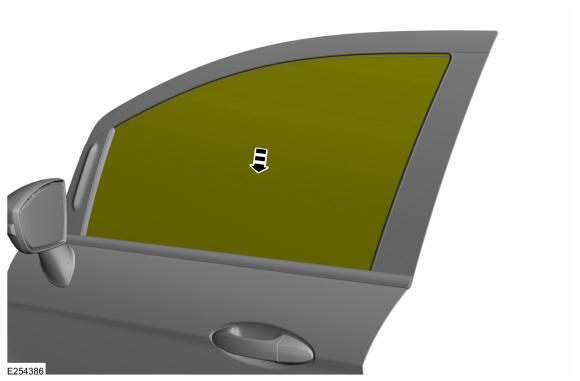

Lower the door window glass.

Courtesy of FORD MOTOR COMPANY

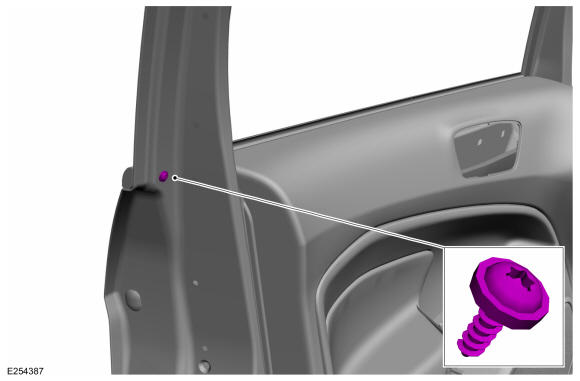

Remove the upper belt moulding screw at rear of the door.

Courtesy of FORD MOTOR COMPANY

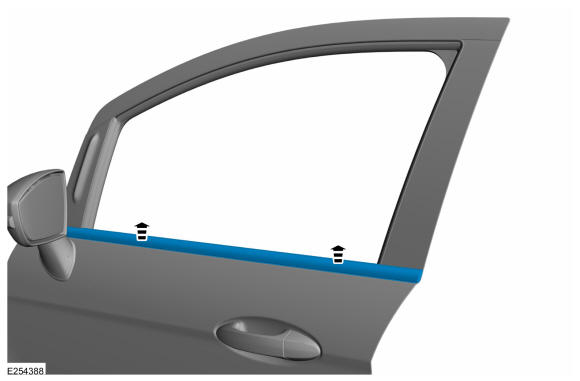

Using a non-marring trim tool, disengage the moulding from the channel in the door and remove the moulding.

Courtesy of FORD MOTOR COMPANY

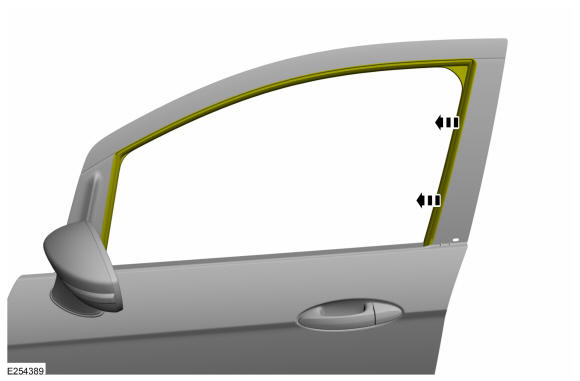

Position aside the glass run weatherstrip.

Courtesy of FORD MOTOR COMPANY

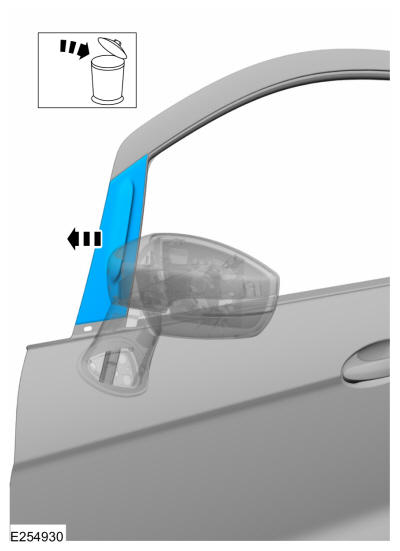

Remove and discard the A-pillar moulding.

Courtesy of FORD MOTOR COMPANY
