Rear Parking Aid Camera: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Vehicles with bumper cover mounted camera

Remove the rear bumper cover. Refer to: Rear Bumper Cover .

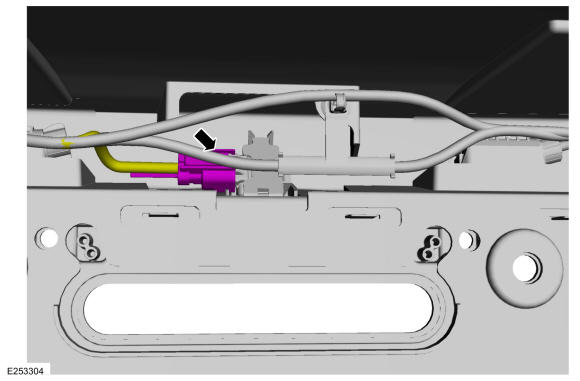

Disconnect the rear parking aid camera electrical connector.

Courtesy of FORD MOTOR COMPANY

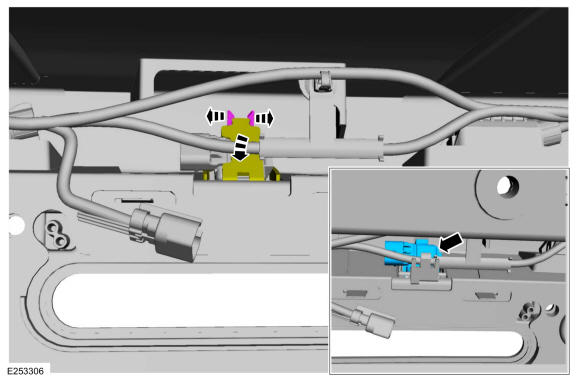

Release the bracket and remove the rear parking aid camera.

Courtesy of FORD MOTOR COMPANY

Vehicles with liftgate mounted camera
Remove the liftgate moulding. Refer to: Liftgate Moulding .

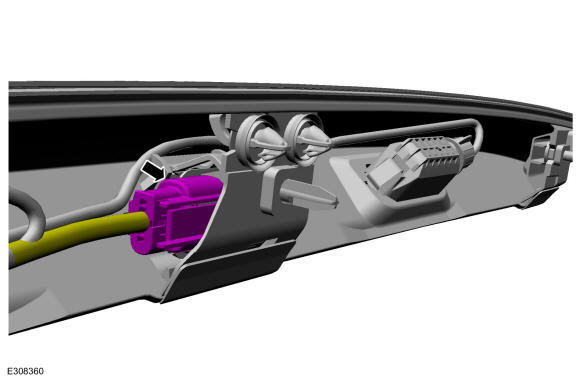

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

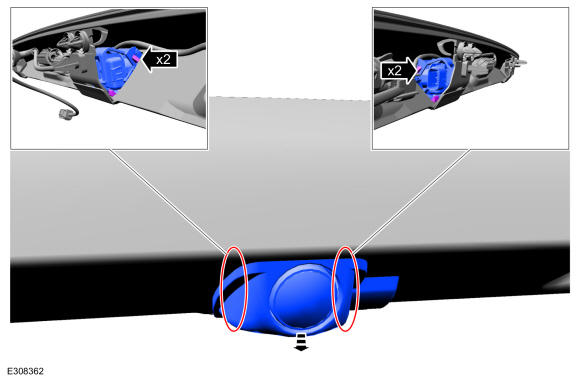

Release the tabs and remove the camera and housing assembly.

Courtesy of FORD MOTOR COMPANY

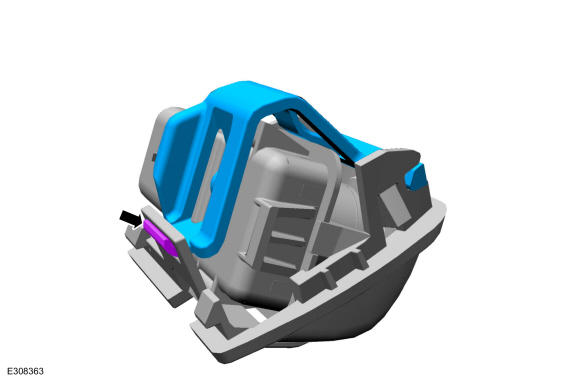

Release the tab and remove the camera bracket.

Courtesy of FORD MOTOR COMPANY

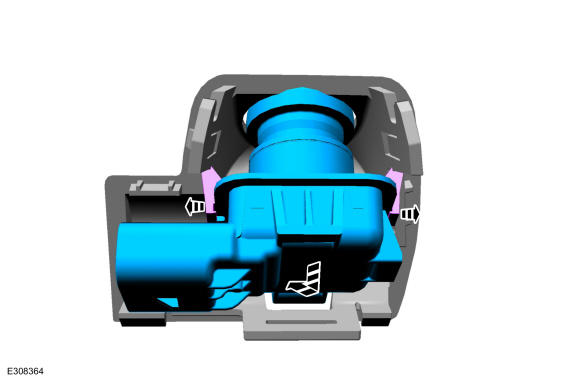

Release the tabs and remove the rear view camera.

Courtesy of FORD MOTOR COMPANY
