Rear Door Window Glass: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown in illustration, RH side similar.
  1. Remove the rear door glass run and bracket. Refer to: Rear Door Glass Run and Bracket .
  2. Remove the rear door glass top run. Refer to: Rear Door Glass Top Run .

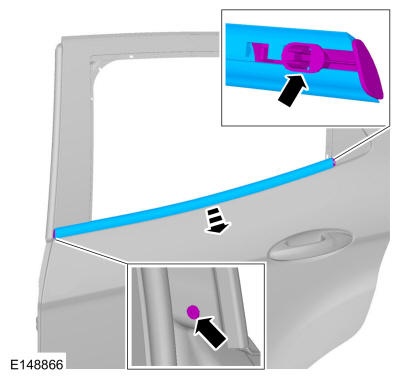

  3. Remove the rear door outer belt moulding.
    GFD329044Courtesy of FORD MOTOR COMPANY

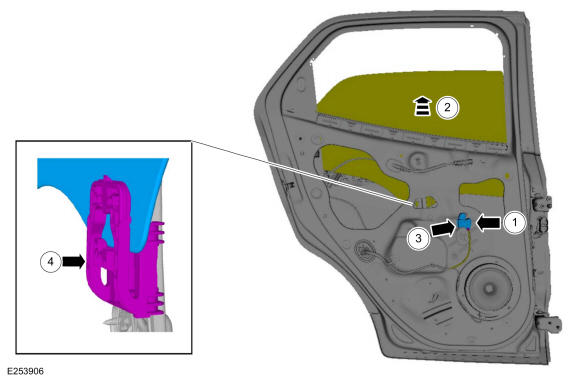

  4. Release the rear door window glass from the rear door window regulator.

    1. Connect the rear door window control switch.
    2. Raise the rear door window glass to the half up position.
    3. Disconnect the rear door window control switch.
    4. Release the rear door window glass retaining clip.

    GFD329045Courtesy of FORD MOTOR COMPANY
  5. Remove the rear door window glass

    1. NOTE: For the RH side, rotate the rear door window glass 90 degrees counter clockwise.

      Rotate the rear door window glass clockwise 90 degrees.

    2. Remove the rear door window glass

GFD329046Courtesy of FORD MOTOR COMPANY
