Rear Door Window Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

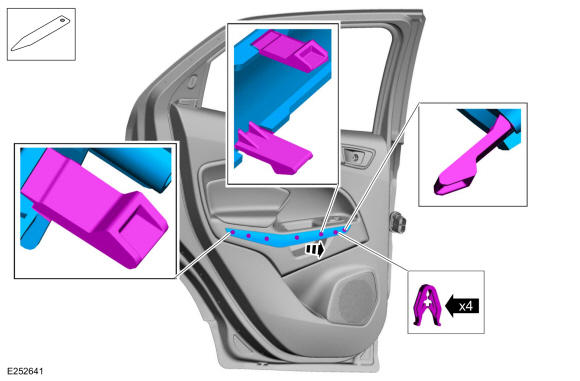

Release the clips and the tabs and remove the rear door armrest side trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

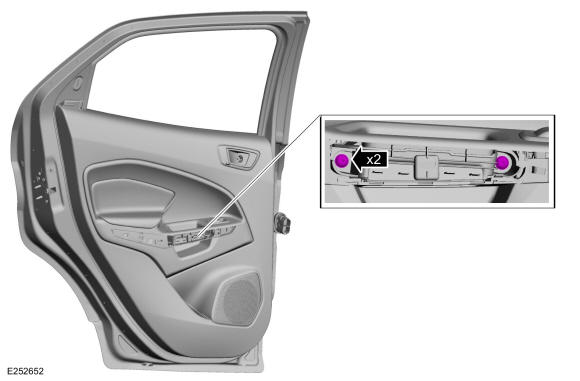

Remove the rear door trim panel screws.

Courtesy of FORD MOTOR COMPANY

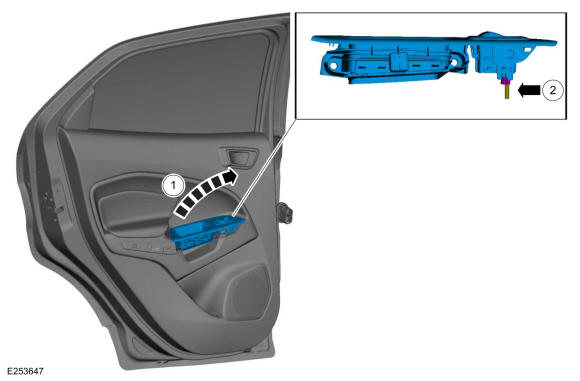

Remove the rear door window control switch and bezel as an assembly.
1. Release the clips.
2. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

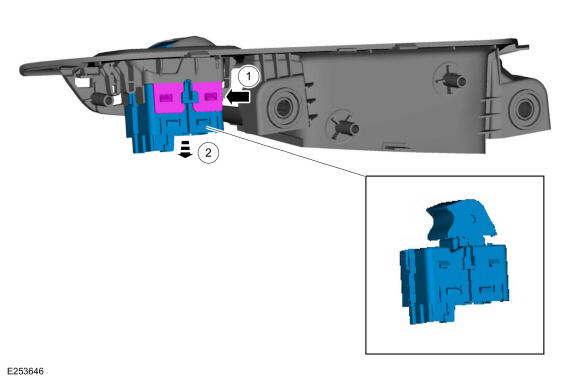

Remove the rear door window control switch.
1. Release the rear door window control switch retaining clips.
2. Remove the rear door window control switch from the bezel.

Courtesy of FORD MOTOR COMPANY
