Rear Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown in illustration, RH side similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear door window control switch. Refer to: Rear Door Window Control Switch .
  2. Remove the rear door trim panel. Refer to: Rear Door Trim Panel .
  3. Remove the rear door watershield.
    GFD329039Courtesy of FORD MOTOR COMPANY

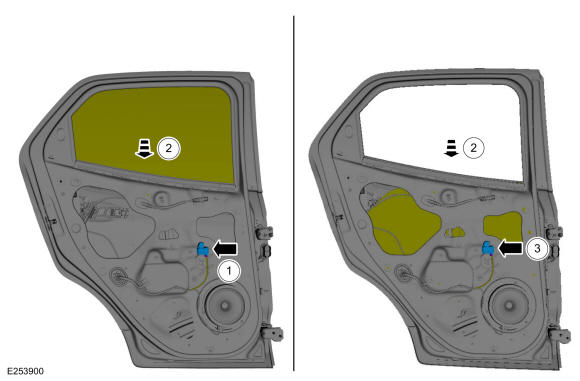

  4. Lower the rear door window glass to the full down position.

    1. Connect the rear door window control switch.
    2. Lower the rear door window glass to the full down position.
    3. Remove the rear door window control switch.

    GFD329041Courtesy of FORD MOTOR COMPANY

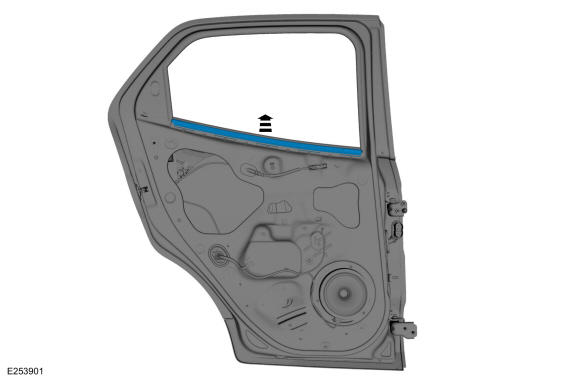

  5. Remove the rear door inner belt moulding.
    GFD329042Courtesy of FORD MOTOR COMPANY

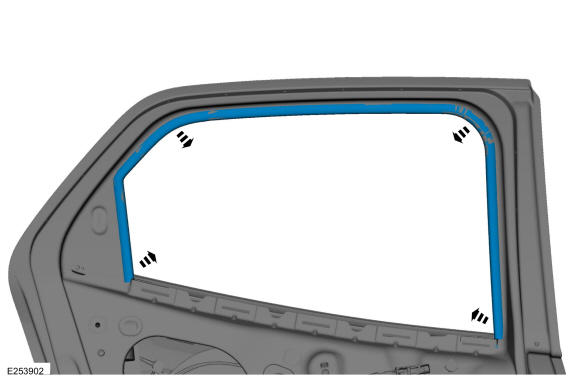

  6. Remove the rear door glass top run.
GFD329043Courtesy of FORD MOTOR COMPANY
