Rear Door Glass Run and Bracket: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH side similar.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel .
Remove the rear door watershield.

Courtesy of FORD MOTOR COMPANY

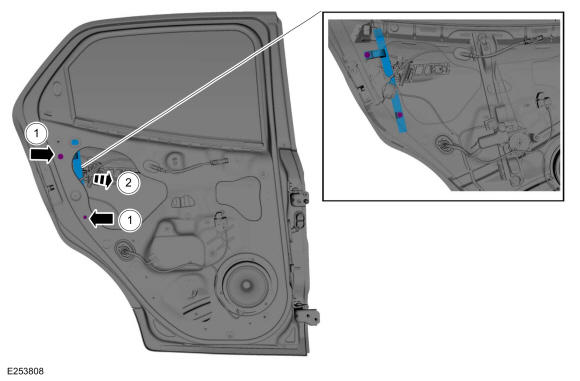

Remove the rear door glass run and bracket.
1. Remove the rear door glass run and bracket bolts.
  Torque: 27 lb.in (3 Nm)
2. Remove the rear door glass run and bracket.

Courtesy of FORD MOTOR COMPANY
