Front Door Window Glass: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the window control switch. Refer to: Driver Door Window Control Switch . Refer to: Passenger Door Window Control Switch .
Remove the front door trim panel. Refer to: Front Door Trim Panel .

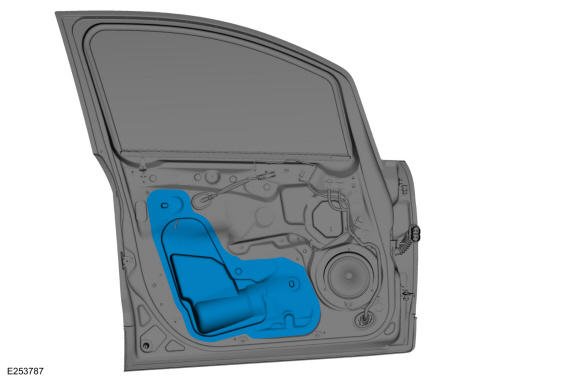

Remove the front door watershield.

Courtesy of FORD MOTOR COMPANY

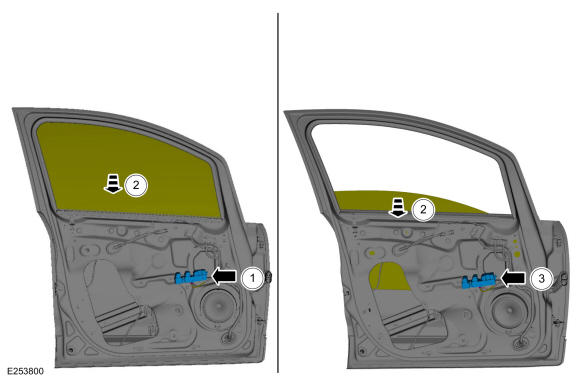

Lower the front door window glass to the three quarters down position.
1. Connect the front door window control switch.
2. Lower the front door window glass to the three quarters down position.
3. Remove the front door window control switch.
Courtesy of FORD MOTOR COMPANY

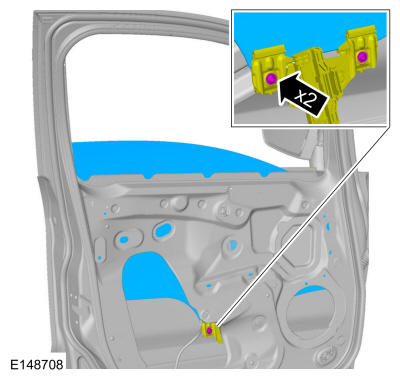

Remove the bolts from the front door window glass.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the front door window glass.
1. NOTE: For the RH side, rotate the front door window glass 45 degrees clockwise.

  Rotate the front door window glass 45 degrees counter clockwise.
2. Remove the front door window glass.

Courtesy of FORD MOTOR COMPANY
