Front Door Glass Run and Bracket: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown in illustration, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front door trim panel. Refer to: Front Door Trim Panel .
- Remove the front door watershield.

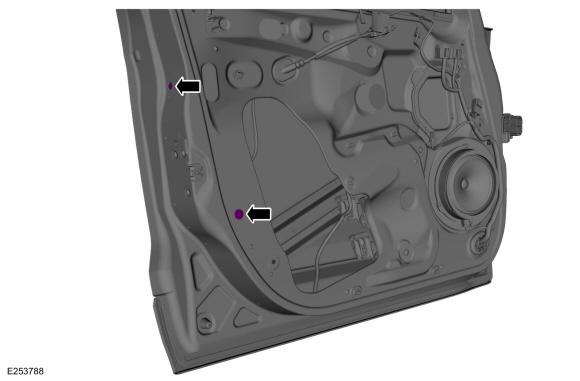

- Remove the front door glass run and bracket bolts.
Torque: 27 lb.in (3 Nm)

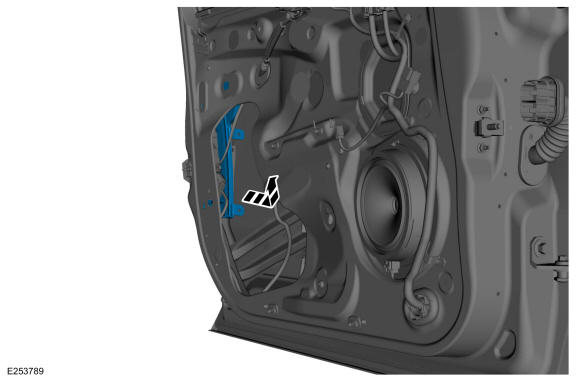

- Remove the front door glass run and bracket.
