Fuel Tank: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Before installing the fuel tank, make sure the vapor tubes are routed properly on top of the fuel tank.

    Install the fuel tank and tighten the bolts in sequence shown.

    Torque: 18 lb.ft (25 Nm)

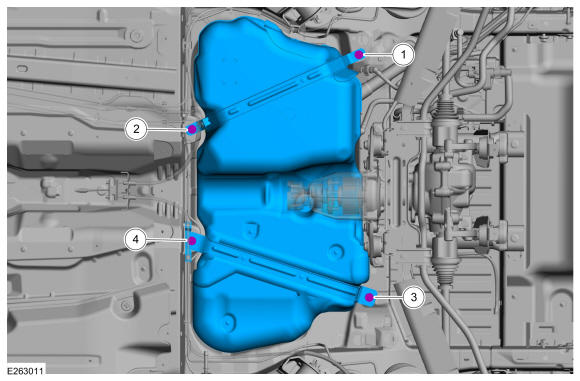

    Fig 1: Fuel Tank Location W/ Bolt Tightening Sequence
    GFD328077Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
