Fuel Tank: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel tank and tighten the bolts in sequence shown.

    Torque: 18 lb.ft (25 Nm)

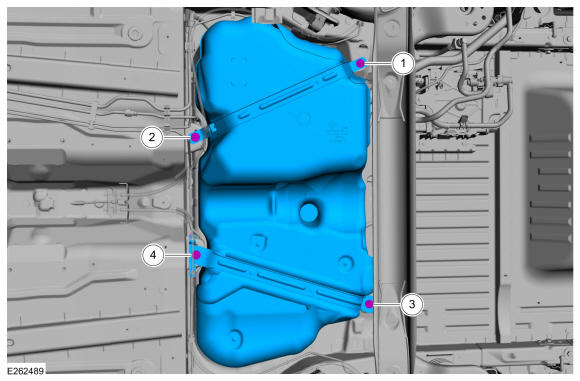

    Fig 1: Fuel Tank Location W/ Bolt Tightening Sequence
    GFD328023Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
