Fuel Pump and Sender Unit: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the Fuel Tank. Refer to: Fuel Tank .
-
NOTE: To avoid introducing contamination into the fuel tank use compressed air to clean the Fuel Pump and Sender Unit connections, couplings, flange surfaces and the immediate surrounding area of any dirt or foreign material.
Remove the nuts and remove the fuel pump and sender unit shield.

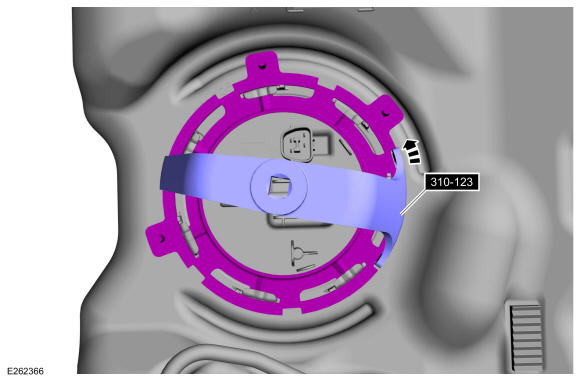

- Using the special tool, rotate the lock ring counter-clockwise and remove the fuel pump and sender unit lock ring. Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.
-
NOTE: The Fuel Pump and Sender Unit must be handled carefully to avoid damage to the float arm.NOTE: Some residual fuel may remain in the Fuel Pump and Sender Unit. Carefully drain into a suitable container.

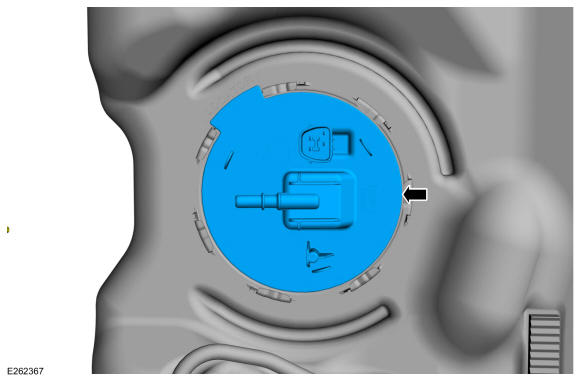

Carefully lift the fuel pump and sender unit from the fuel tank.

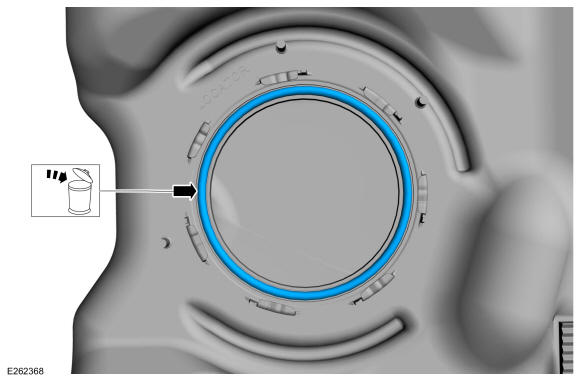

- Remove and discard the fuel pump and sender unit O-ring seal.
