Fuel Pump and Sender Unit: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

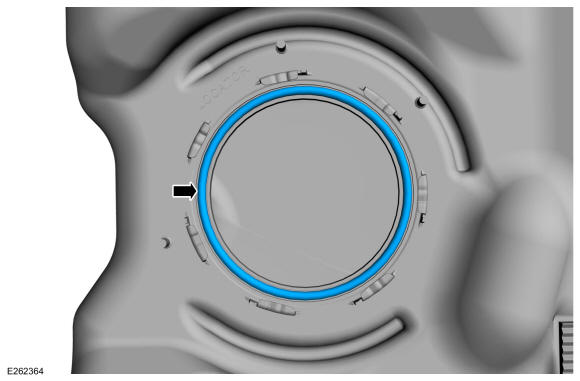

- Install the new fuel pump and sender unit O-ring seal.
-
NOTE: Make sure the alignment locator on the fuel pump and sender unit and the fuel tank meet before tightening the fuel pump and sender unit lock ring.NOTE: Inspect the mating surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Wipe clean with a lint free towel. Install a new Fuel Pump and Sender Unit or fuel tank if the O-ring seal contact area is bent, scratched or corroded.

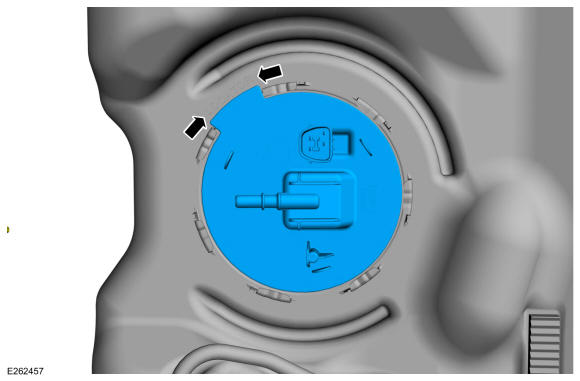

Install the fuel pump and sender unit.

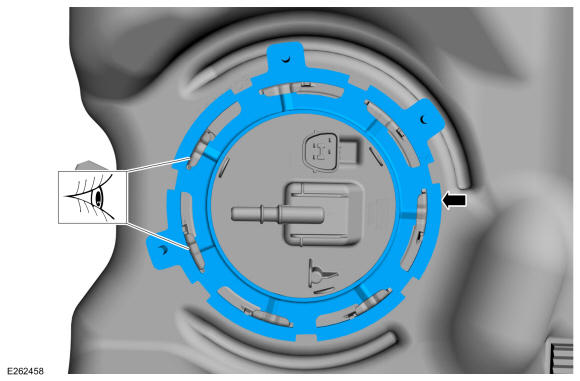

- Tighten the fuel pump and sender unit lock ring until it meets the stop tabs on the fuel tank.

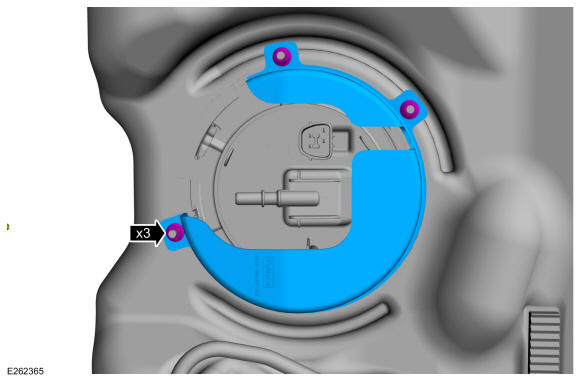

- Install the fuel pump and sender unit shield and tighten the nuts.
Torque: 80 lb.in (9 Nm)
- Install the Fuel Tank. Refer to: Fuel Tank .
