Fuel Level Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .
-
NOTE: Take extra care not to damage the fuel tank level sensor float and arm.

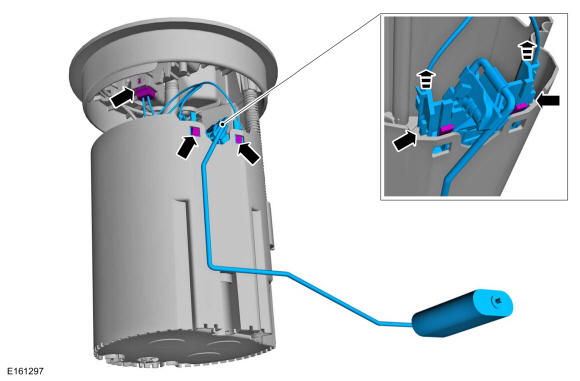

- Disconnect the fuel level sender electrical connector.
- Depress the lock tabs and slide the fuel level sender upwards, and remove the sender from the Fuel Pump assembly.
