Cooler Bypass Valve: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the transmission fluid cooler tubes bracket bolt.
Torque: 89 lb.in (10 Nm)
-
NOTE: Be prepared to collect escaping fluid.

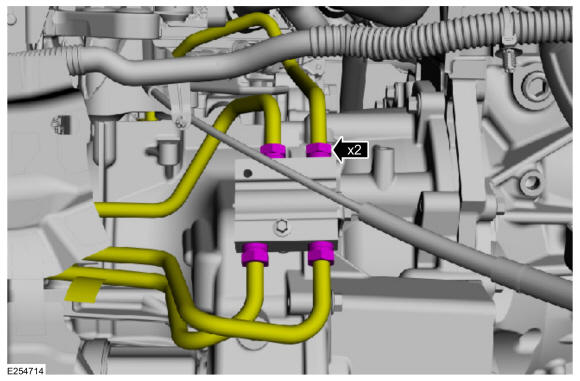

Completely loosen the transmission fluid cooler tube fittings from the cooler bypass valve.

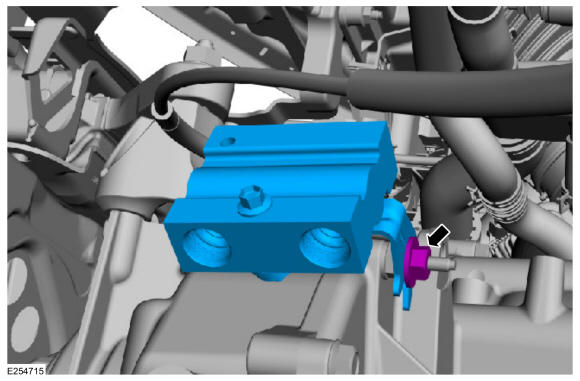

- Loosen the nut and remove the cooler bypass valve.
Torque: 80 lb.in (9 Nm)
