Transmission Fluid Cooler - 1.0L EcoBoost (92kW 125PS): Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Be prepared to collect escaping fluid.

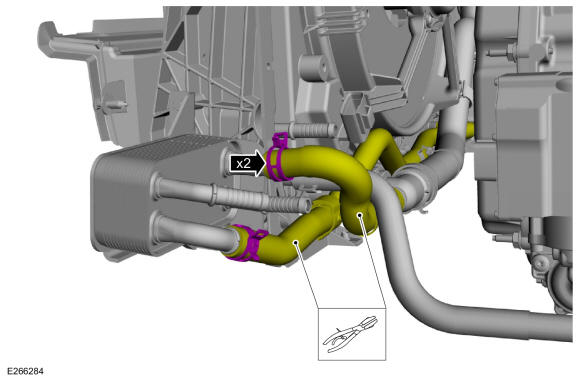

Release the clamps and disconnect the transmission fluid cooler hoses from the transmission fluid cooler.
-
NOTE: Be prepared to collect escaping fluid.

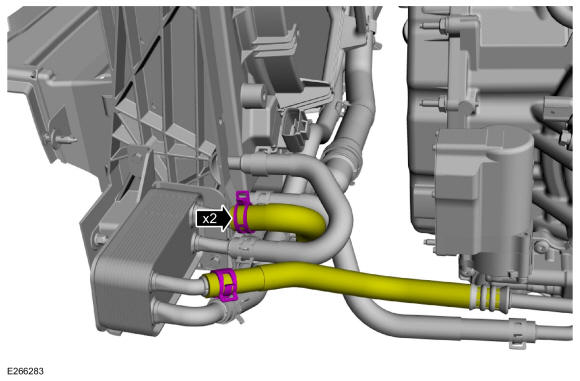

Clamp the transmission fluid cooler coolant hoses, release the clamps and disconnect the hoses. Use the General Equipment: Hose Clamp(s)

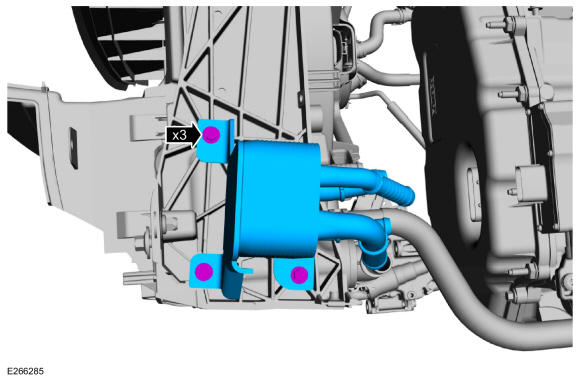

- Remove the bolts and the transmission fluid cooler.
Torque: 89 lb.in (10 Nm)
