Transmission Fluid Auxiliary Cooler: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: It is not necessary to remove the A/C condenser from the radiator.
Remove the radiator. Refer to: Radiator .

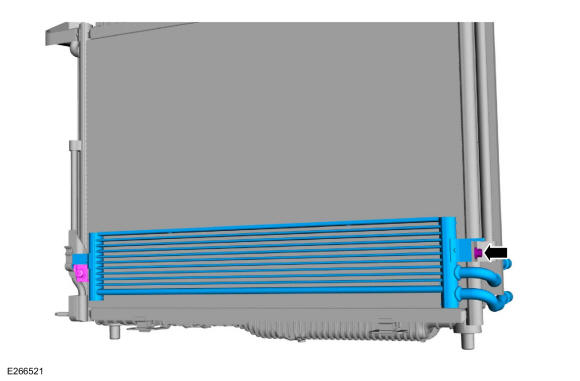

- Remove the bolt and the transmission fluid auxiliary cooler.
Torque: 62 lb.in (7 Nm)
