1.5L Duratec
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

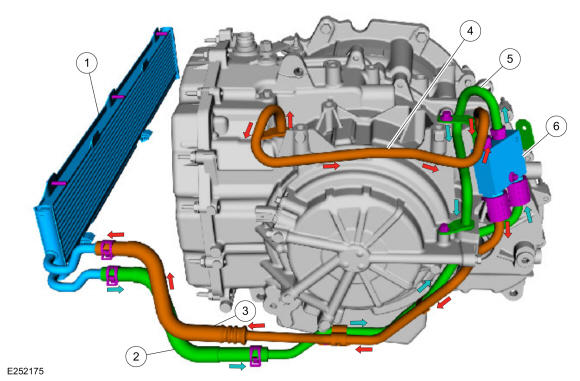

| Item |
Description |
| 1 |
Transmission fluid cooler |
| 2 |
Transmission fluid cooler-to-cooler bypass valve tube |
| 3 |
Cooler bypass valve-to-transmission fluid cooler tube |
| 4 |
Transmission-to-cooler bypass valve tube |
| 5 |
Cooler bypass valve-to-transmission tube |
| 6 |
Cooler bypass valve |
