Rear Bumper: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear bumper cover. Refer to: Rear Bumper Cover .

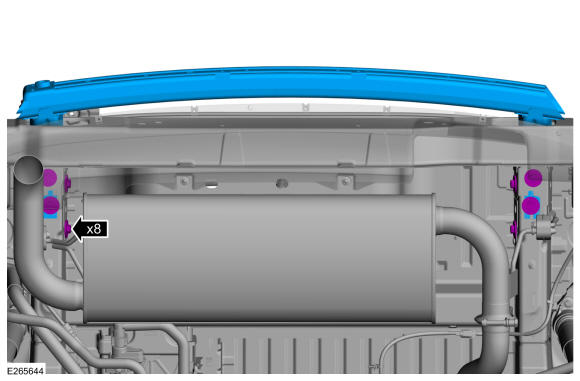

- Remove the mounting bolts and the rear bumper.
Torque: 35 lb.ft (47.5 Nm)
