Rear Bumper Cover: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear wheel and tire assemblies. Refer to: Wheel and Tire .

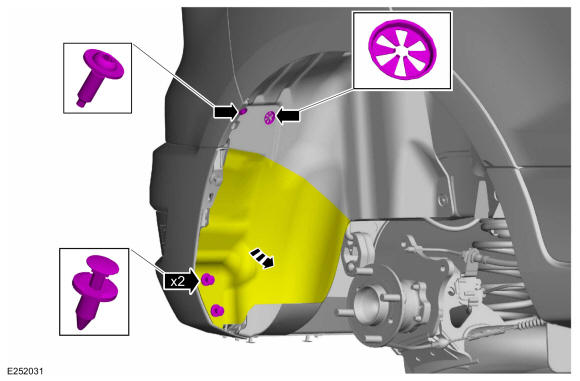

On both sides. Remove the pin-type retainers, the clip, the screw and position the wheel liner aside.
Torque: 15 lb.in (1.7 Nm)

Courtesy of FORD MOTOR COMPANY

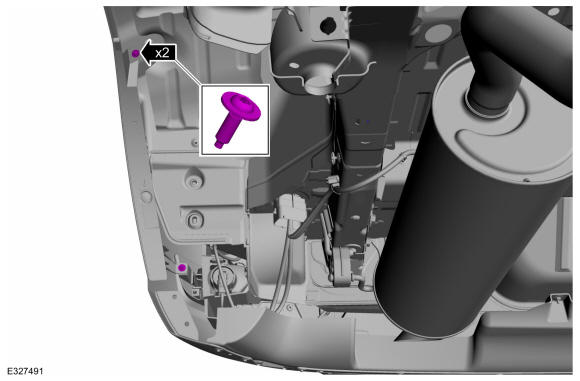

On both sides. Remove the screws.
Torque: 15 lb.in (1.7 Nm)

Courtesy of FORD MOTOR COMPANY

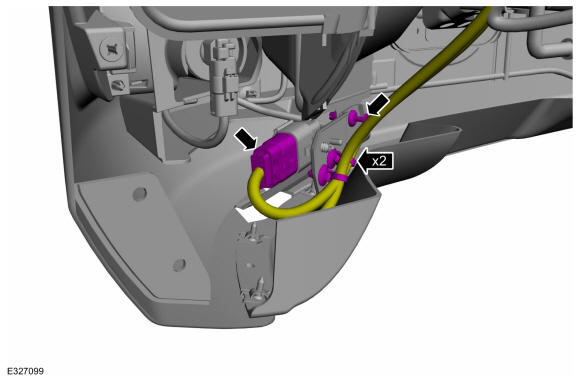

NOTE: RH side only.

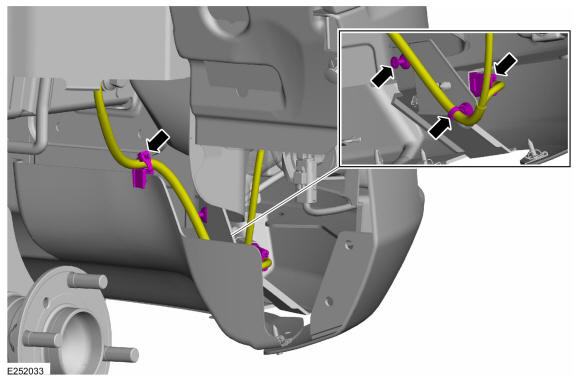

Disconnect the rear bumper harness electrical connector, detach the wiring harness retainers and remove the push pin.

Courtesy of FORD MOTOR COMPANY
NOTE: LH side only.

Disconnect the rear bumper harness electrical connector, detach the wiring harness retainers and remove the push pin.

Courtesy of FORD MOTOR COMPANY

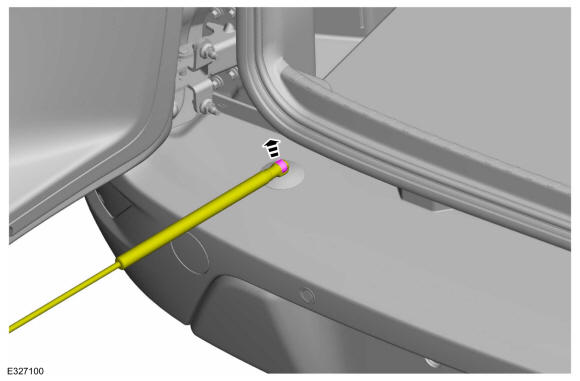

Using the pliers squeeze the clips and position the strut aside. Use the General Equipment: Long Nose Pliers

Courtesy of FORD MOTOR COMPANY

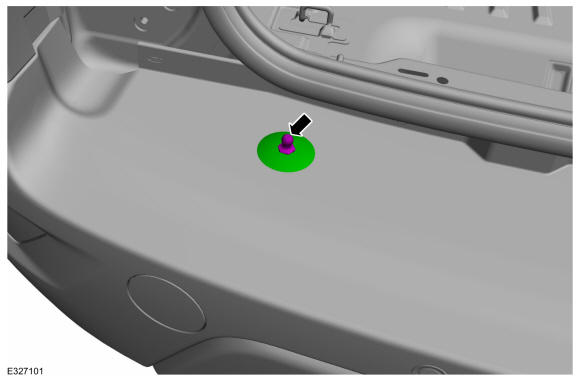

Remove the stud and washer.

Courtesy of FORD MOTOR COMPANY

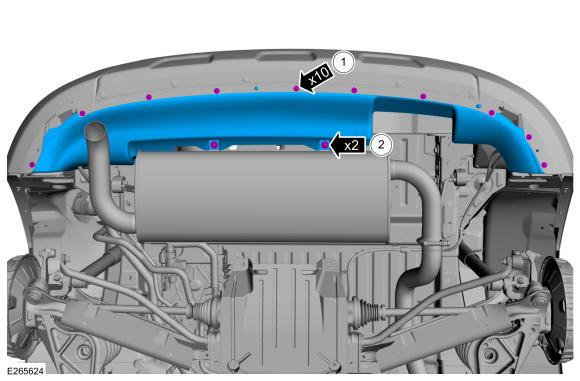

1. Remove the screws.
  Torque: 13 lb.in (1.5 Nm)
2. Remove the clips and the rear air deflector.
  Torque: 19 lb.in (2.2 Nm)
Courtesy of FORD MOTOR COMPANY

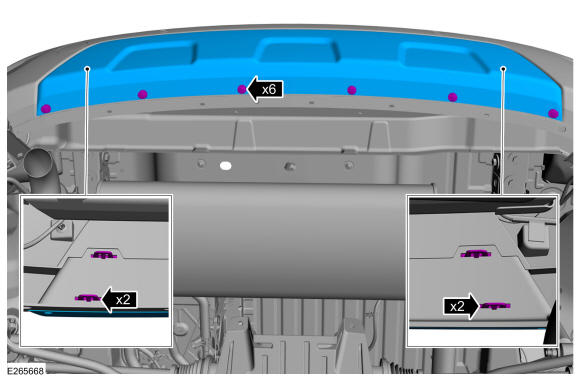

Remove the pushpins, release the tabs and remove the bumper cover.

Courtesy of FORD MOTOR COMPANY

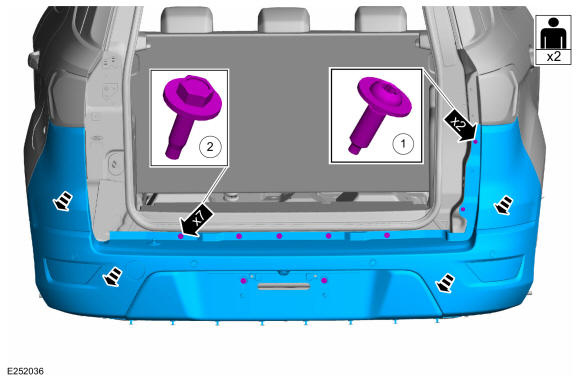

With the help of an assistant. Remove the screws and the rear bumper cover.
Torque: 1.: 13 lb.in (1.5 Nm) 2.: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

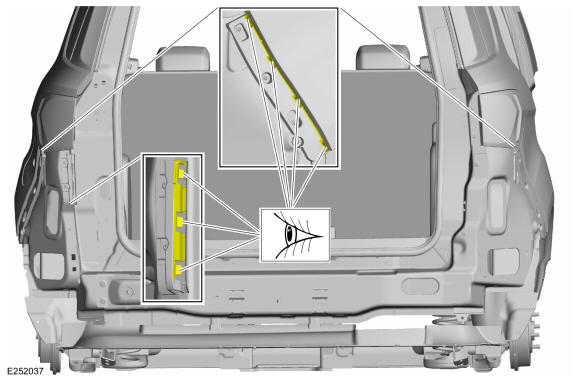

Inspect the bumper reinforcements for damage to the bumper cover gripping surfaces.

Courtesy of FORD MOTOR COMPANY

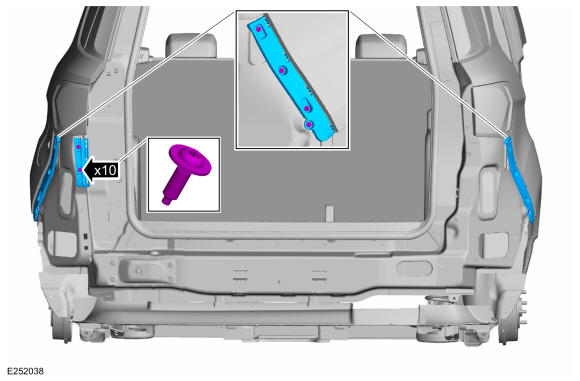

If required. Remove the screws and the damaged bracket.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
