Front Bumper: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover .
NOTE: LH side only.

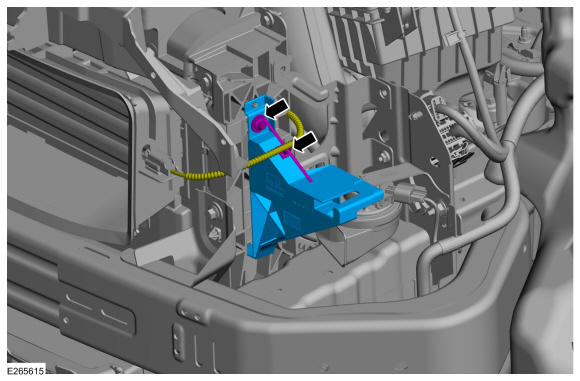

- Detach the retainer and position the wiring harness aside.
- Remove the bolt and the headlamp stand.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: RH side only.

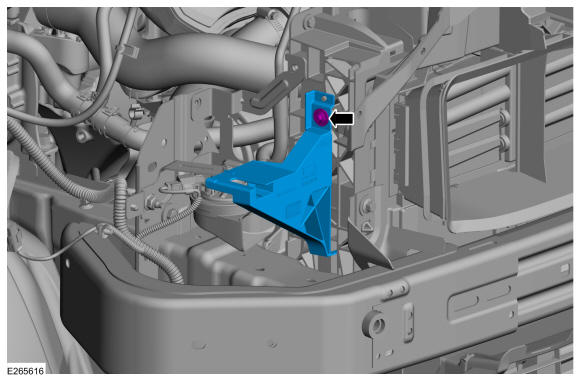

Remove the bolt and the headlamp stand.

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

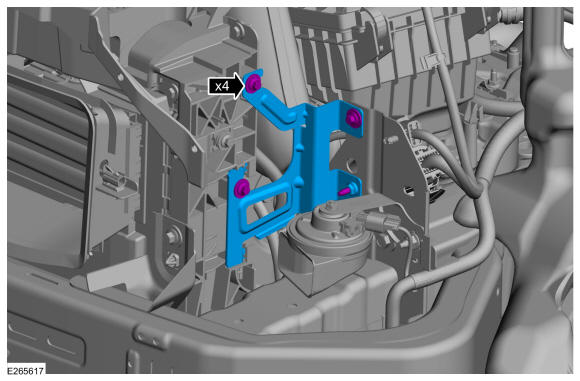

On both sides. Remove the bolts and the bracket.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: LH side only.

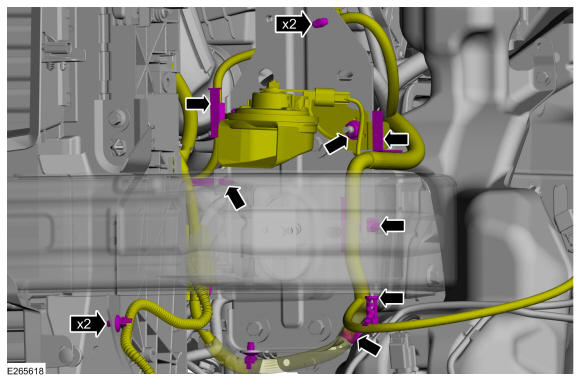

- Detach the wiring harness routing retainers.
- Remove the nut and position the horn and wiring harness assembly aside.
Courtesy of FORD MOTOR COMPANY
NOTE: RH side only.

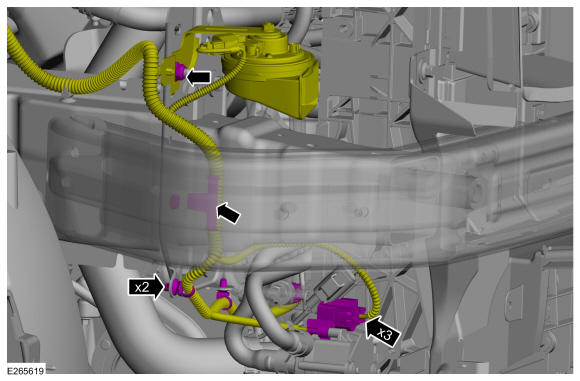

- Detach the wiring harness routing retainers.
- Disconnect the electrical connectors.
- Remove the nut and position the horn and wiring harness assembly aside.
Courtesy of FORD MOTOR COMPANY

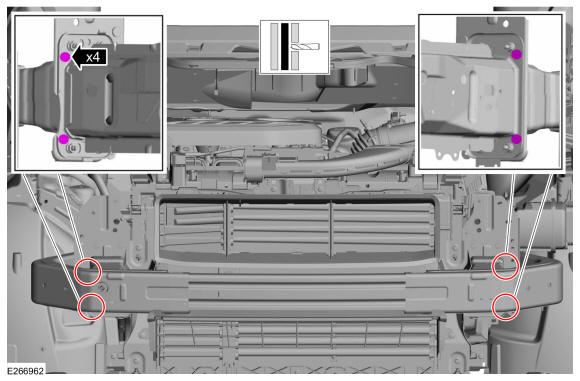

If applicable. Drill out the spot welds from the front bumper beam.

Courtesy of FORD MOTOR COMPANY

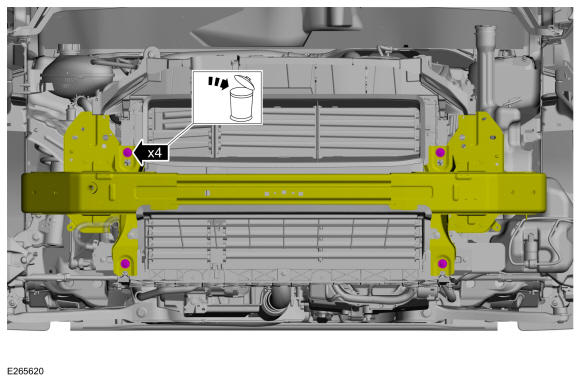

Support the cooling module.
Remove and discard the bumper mounting bolts.

Courtesy of FORD MOTOR COMPANY

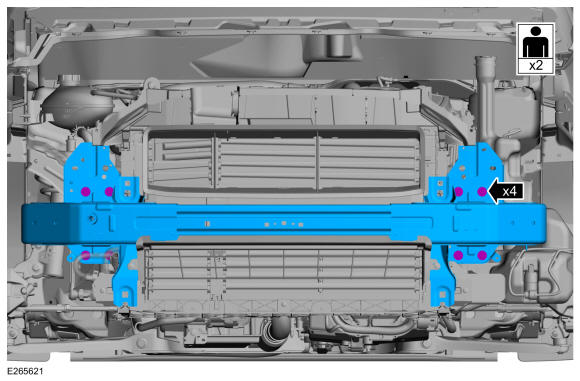

With the help of an assistant. Remove the bumper mounting bolts and the front bumper.

Courtesy of FORD MOTOR COMPANY
