Front Bumper: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

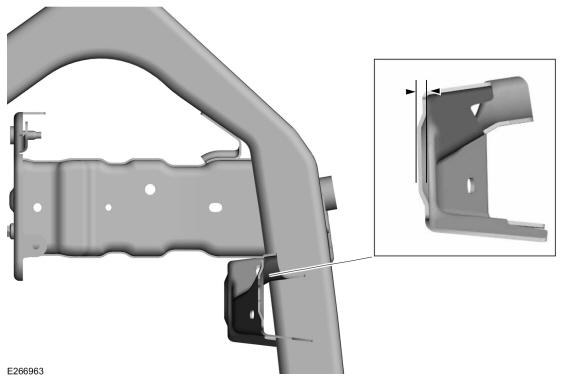

- Measure the depth on the damaged bumper beam bracket.
-
NOTE: The front bumper service component is supplied without the front bumper beam radiator mounting holes present. It is intended that the required holes be drilled in the bracket while performing the service procedure. The location of the holes is marked on the bracket with cross marks.

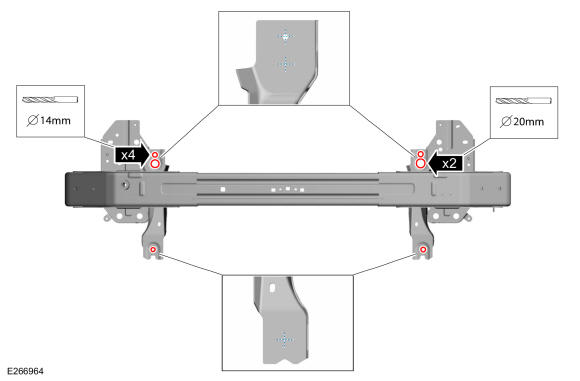

Drill the front bumper beam radiator mounting holes on the bracket.

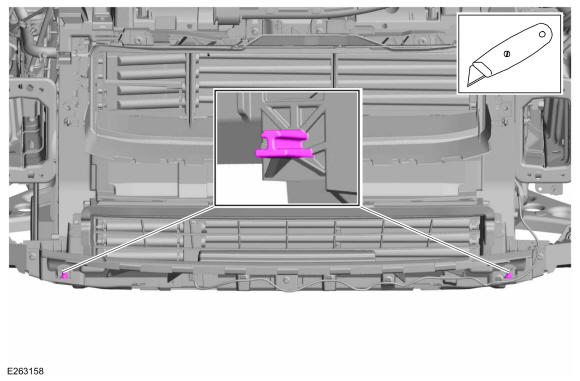

- Carefully cut the dowels on the radiator assembly. Use the General Equipment: Knife
-
NOTE: Make sure that new bolts are installed.NOTE: Only tighten the bolts finger tight at this stage.NOTE: Adjust the shim thickness to achieve correct bumper alignment.

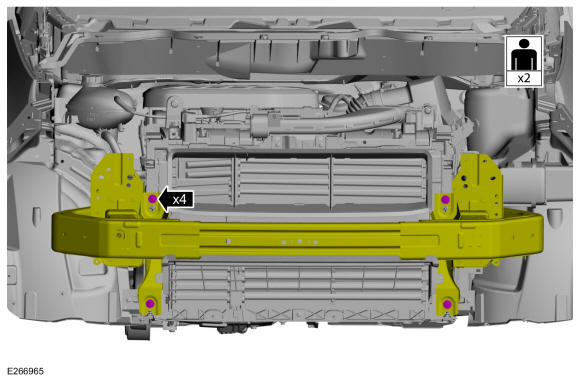

With the help of an assistant. Install the shim thickness equivalent to the measurement made in step 1, determining the shim thickness will aid the technician to complete the service procedure and achieve the correct bumper alignment.
-
NOTE: Only tighten the bolts finger tight at this stage.

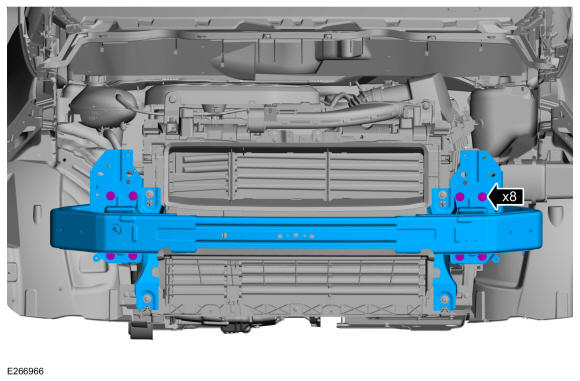

Install the bolts.

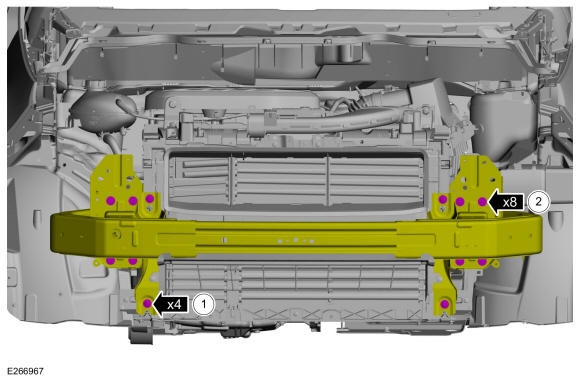

- Tighten the bolts.
Torque: 1 : 80 lb.in (9 Nm) 2 : 18 lb.ft (25 Nm)
- To install, reverse the removal procedure.
- Check the body-to-front bumper cover dimensions.
