Front Bumper Cover: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the fender splash shield. Refer to: Fender Splash Shield .
On both sides.

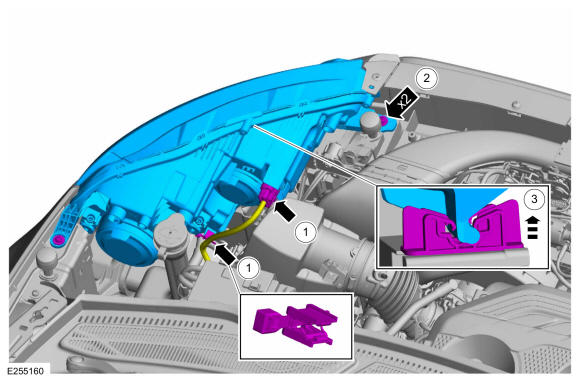

1. Disconnect the headlamp electrical connector and detach the wiring harness retainer.
2. Remove the screws.
  Torque: 19 lb.in (2.2 Nm)
3. Remove the headlamp.
Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: LH side only.

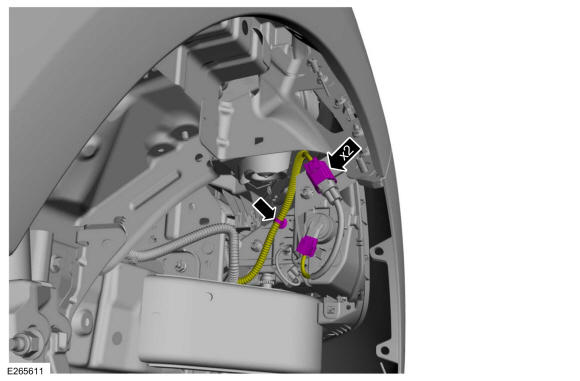

Detach the wiring harness retainer and disconnect the fog lamp wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: RH side only.

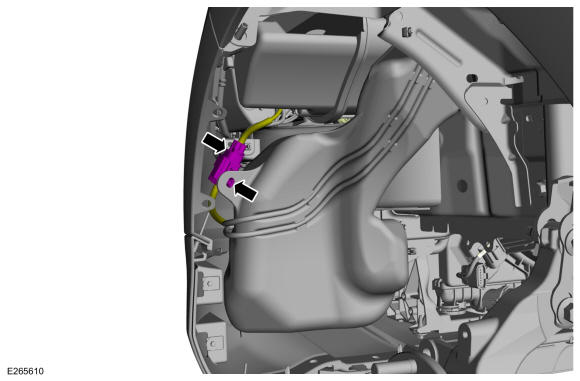

Disconnect the fog lamp electrical connectors and detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

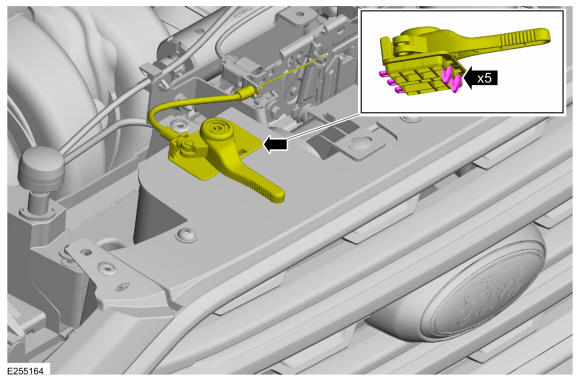

Release the tabs and position the hood lock handle aside.

Courtesy of FORD MOTOR COMPANY

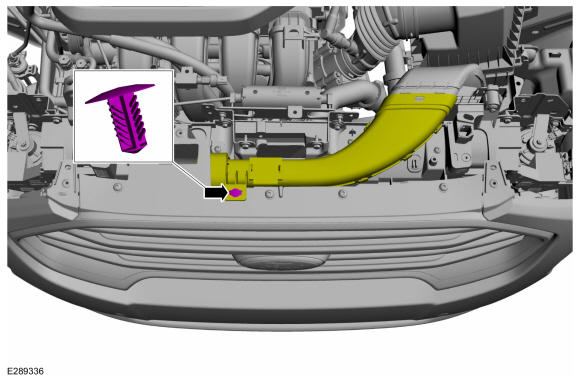

If equipped. Remove the trim pin and position the air inlet tube aside.

Courtesy of FORD MOTOR COMPANY

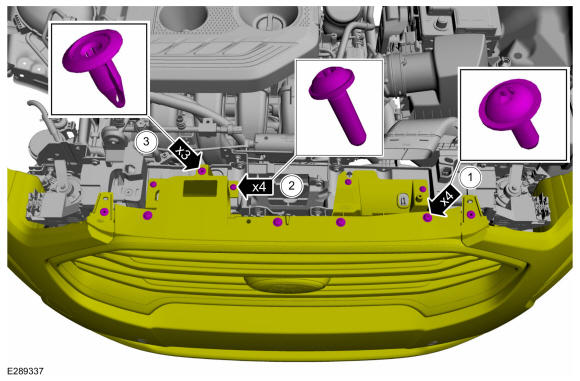

Remove the front bumper cover screws and push pins.

Courtesy of FORD MOTOR COMPANY

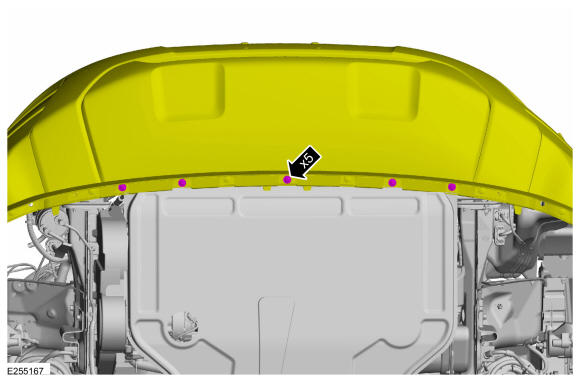

Remove the front bumper cover to air deflector bolts.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

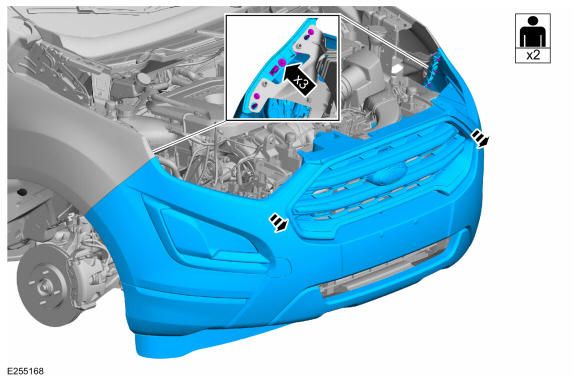

With the help of an assistant. Remove the bolts and front bumper cover.
Torque: 42 lb.in (4.8 Nm)
