Front Bumper Cover: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

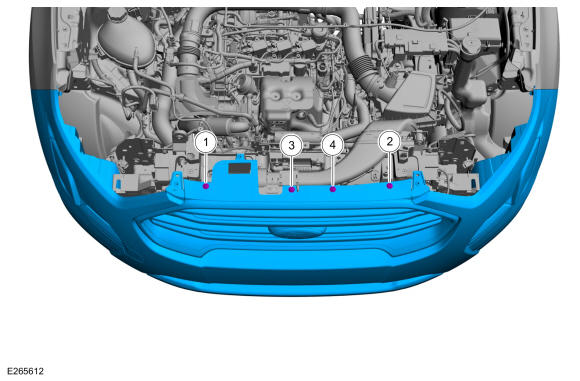

  1. Install the front bumper cover and tighten the bolts in sequence shown.

    Torque: 48 lb.in (5.4 Nm)

    GFD329279Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
