Rear Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

All vehicles

Remove the rear bumper cover. Refer to: Rear Bumper Cover .

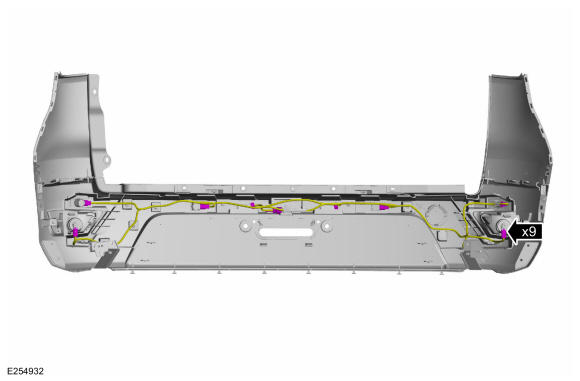

Disconnect the rear bumper cover harness electrical connectors.

Courtesy of FORD MOTOR COMPANY

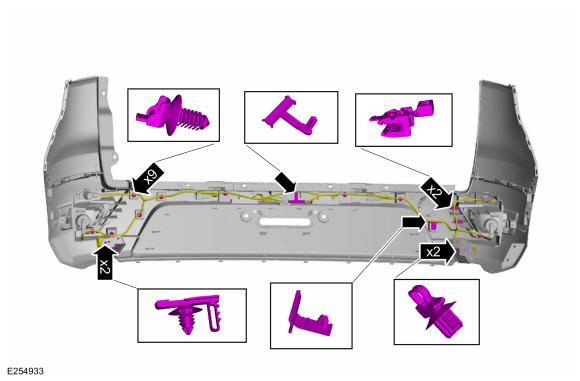

Separate the wire harness guides and remove the rear bumper cover wire harness.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with rear parking aid sensors
NOTE: Make sure that the isolator rings are installed correctly while installing the sensors.

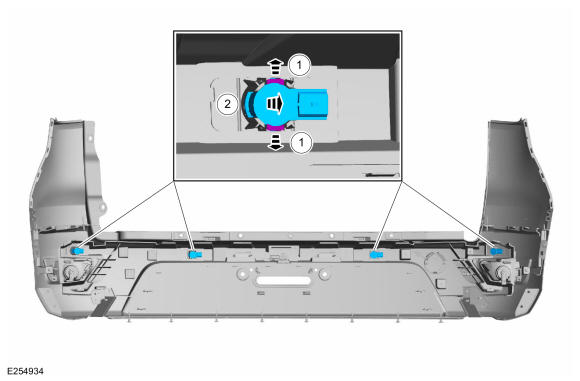

Remove the rear parking aid sensors.
1. Release the tabs.
2. Separate the sensor from the bracket.
Courtesy of FORD MOTOR COMPANY

Vehicles equipped with rear parking aid camera

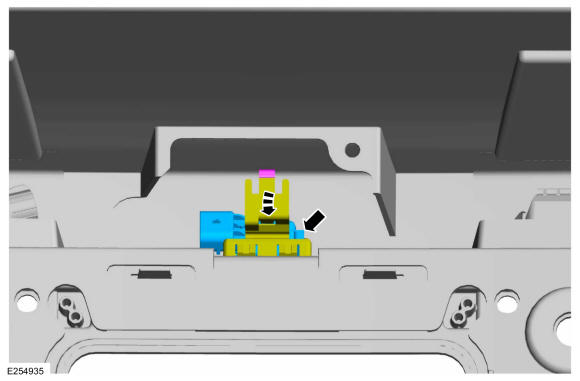

Release the bracket and remove the rear parking aid camera.

Courtesy of FORD MOTOR COMPANY

All vehicles

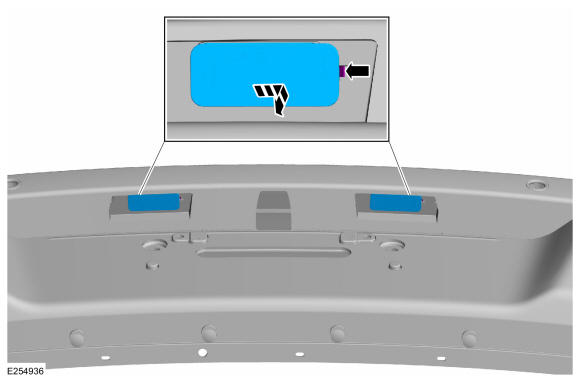

If equipped. Release the tabs and remove the rear licence plate lamp assembly.

Courtesy of FORD MOTOR COMPANY

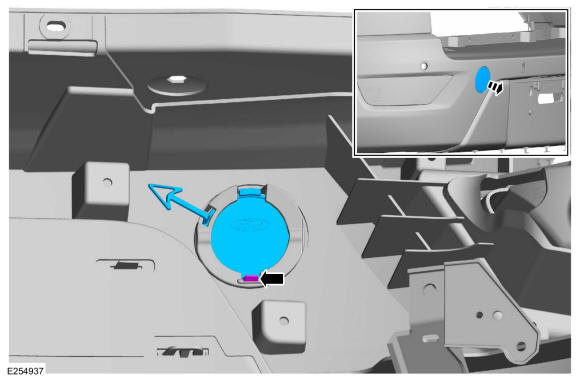

Release the tab and remove the tow hook cover.

Courtesy of FORD MOTOR COMPANY

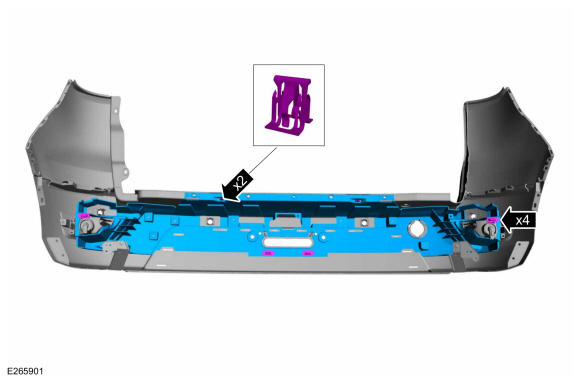

Release the tabs and remove the central bracket.

Courtesy of FORD MOTOR COMPANY

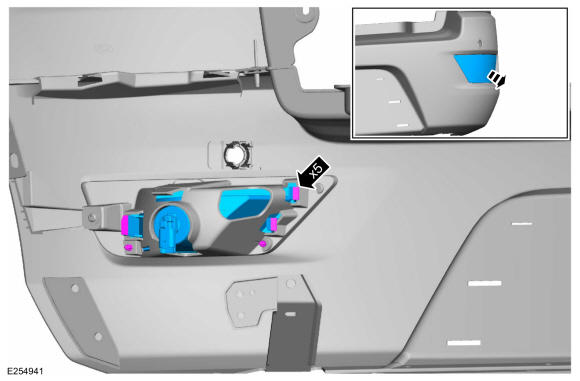

On both sides. Release the tabs and remove the rear light assembly.

Courtesy of FORD MOTOR COMPANY

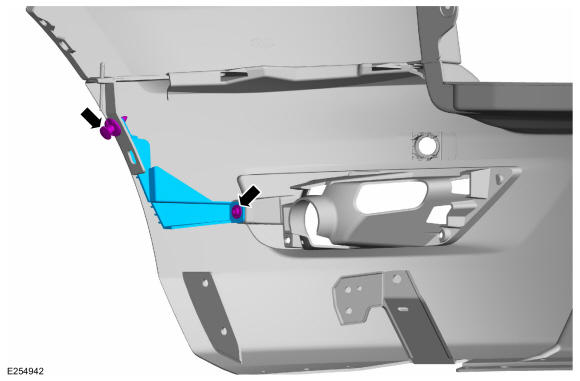

If equipped, on both sides. Remove the pin-type retainer, the screw and the rear bumper mounting bracket.

Courtesy of FORD MOTOR COMPANY

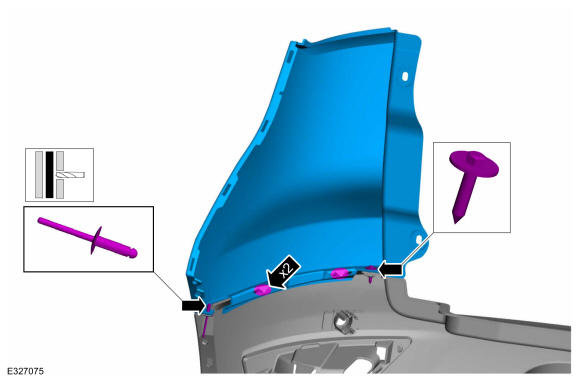

On both sides. Drill the rivet, remove the screw, release the tabs and remove the side valance.
