Front Bumper Cover: Disassembly
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front bumper cover. Refer to: Front Bumper Cover .

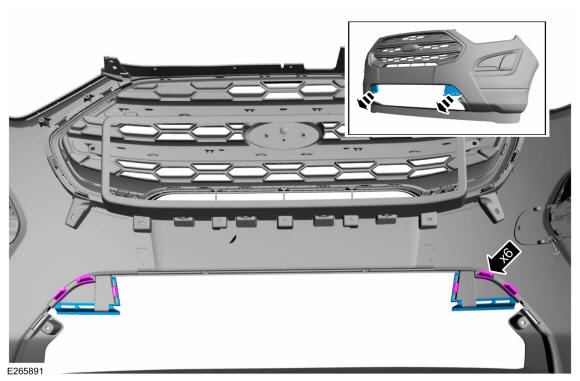

- Release the tabs and remove the front bumper lower cover.
- Release the tabs and remove the front bumper cover.

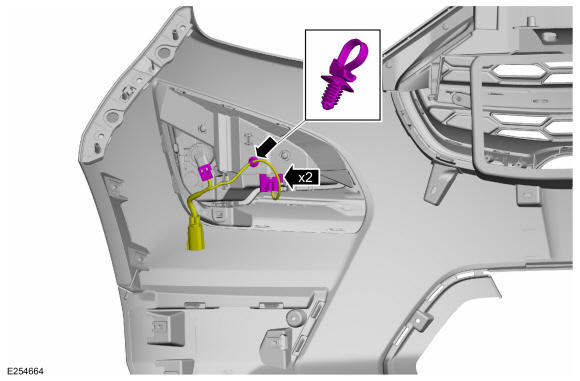

- On both sides. Disconnect the electrical connectors, release the retainer and remove the fog lamp wiring harness.

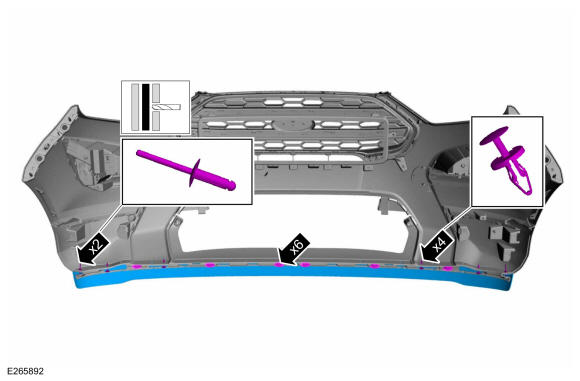

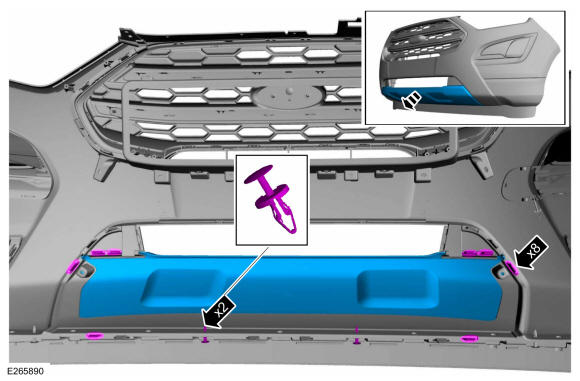

- Drill the rivets, remove the pin-type retainers, release the tabs and remove the speed lip.

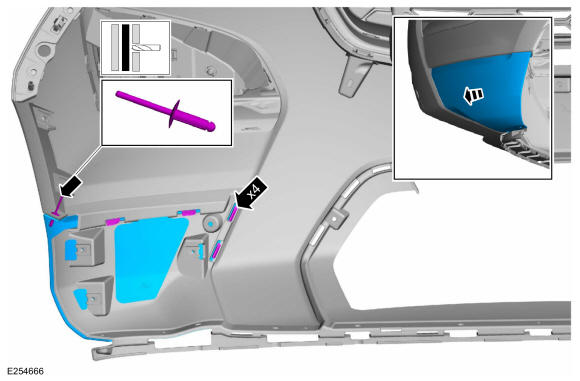

- On both sides. Drill the rivets, release the tabs and remove the front bumper cover assembly.

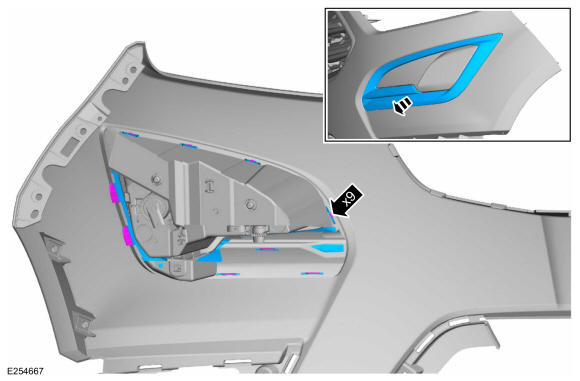

- On both sides. Release the tabs and remove the fog lamp bezel.

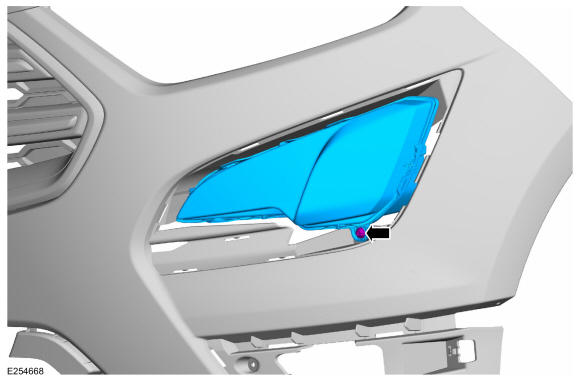

- On both sides. Remove the screw and the fog lamp assembly.
Torque: 15 lb.in (1.7 Nm)

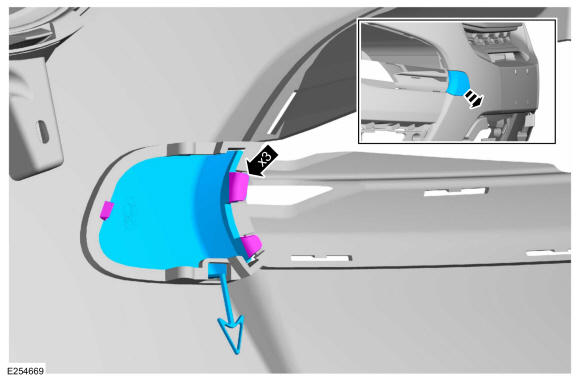

- Release the tabs and remove the tow hook cover.

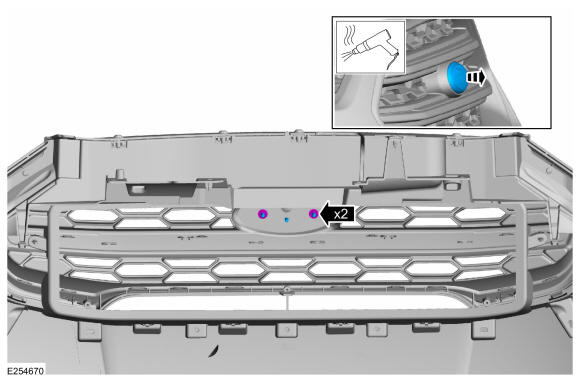

- Remove the nuts and the front bumper emblem. Use the General Equipment: Hot Air Gun
Torque: 13 lb.in (1.5 Nm)

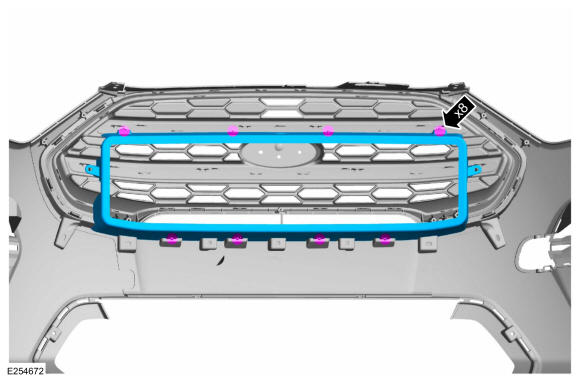

- Release the tabs and remove the upper deflector frame.

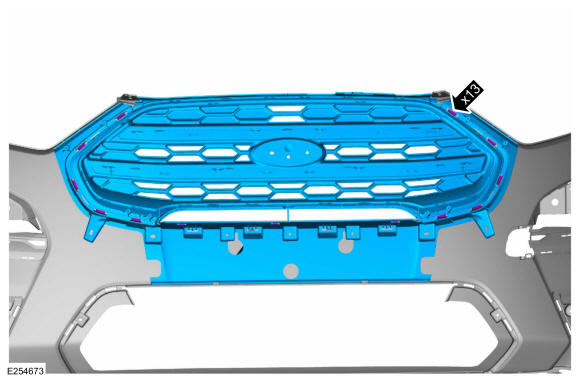

- Release the tabs and remove the upper radiator grille.

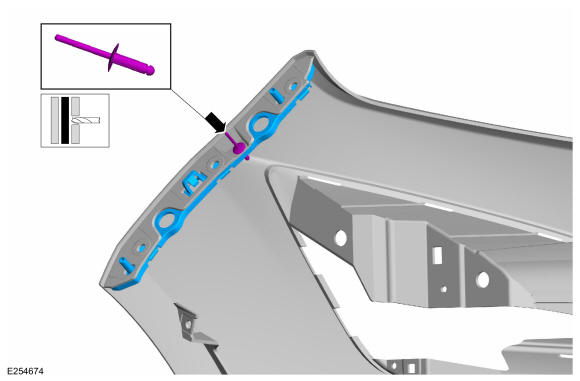

- On both sides. Drill the rivet and remove the front bumper cover to fender bracket.
