Start Inhibit Switch: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Make sure that the clutch pedal remains in the rest position.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Left hand drive (LHD) shown, right hand drive (RHD) similar.

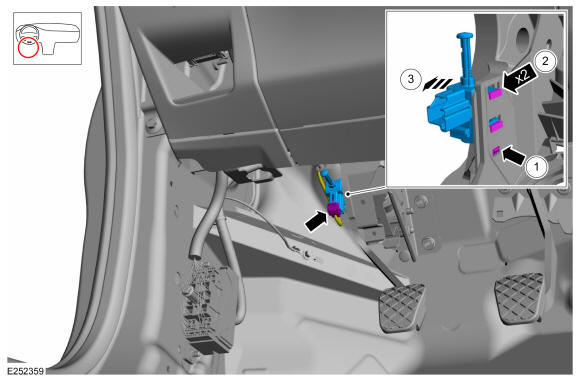

- Disconnect the electrical connector and remove the start inhibit switch.
