Front Seat: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LHD driver seat shown in illustration, RHD driver seat similar.
  1. WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: Pyrotechnic Device Health and Safety Precautions .

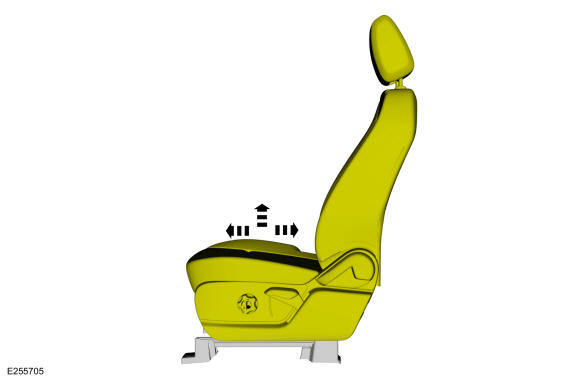

  2. Move the seat to the full upward position and forward or rearward to access all the front seat bolts.
    GFD328924Courtesy of FORD MOTOR COMPANY
  3. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

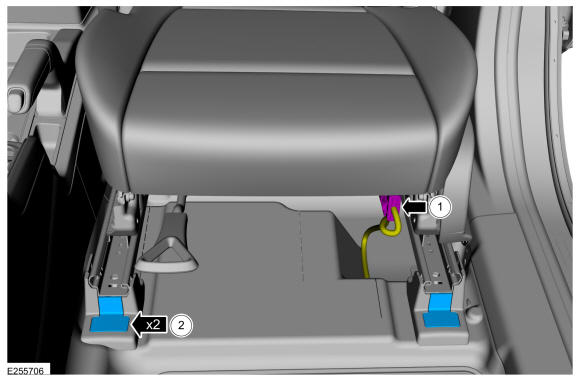

    1. Disconnect the front seat harness electrical connector.
    2. Remove the front seat bolt covers.
    GFD328925Courtesy of FORD MOTOR COMPANY

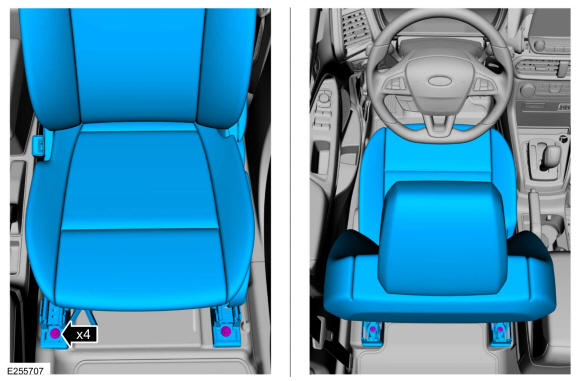

  5. Remove the bolts and the front seat.

    Torque: 26 lb.ft (35 Nm)

GFD328926Courtesy of FORD MOTOR COMPANY
