Front Seat Track: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LHD driver seat shown in illustration, other seats similar.

Remove the front seatbelt buckle. Refer to: FRONT SEATBELT BUCKLE .
Remove the front seat cushion cover. Refer to: Front Seat Cushion Cover .

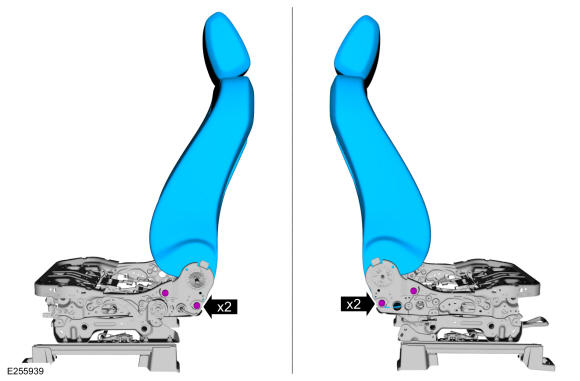

Remove the screws and the inner side shield.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the backrest.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
