Front Seat Track Motor Cable: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Seat removed for clarity.

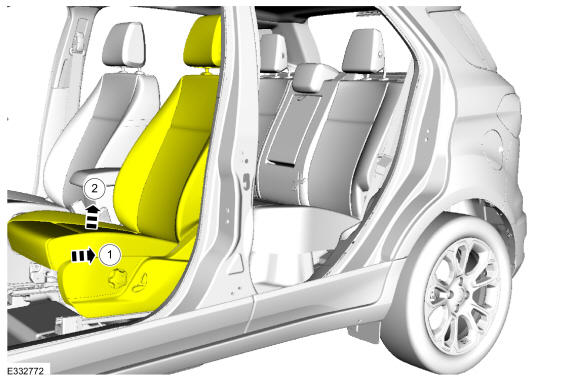

1. Position the front seat in the full rearward position.
2. Position the front seat in the full upward position.
Courtesy of FORD MOTOR COMPANY

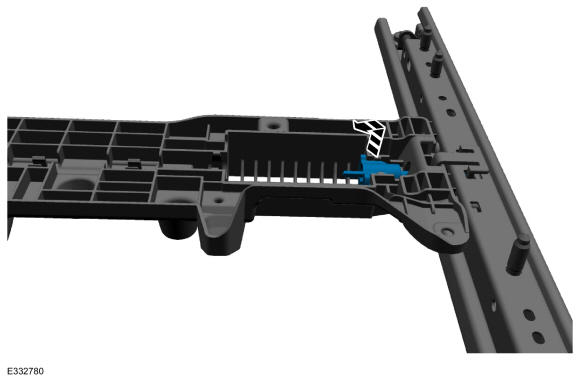

Using a suitable hex wrench locate the access hole and release the tab and position the front seat track motor upward.

Courtesy of FORD MOTOR COMPANY
NOTE: The long front seat track cable does have the ability to flex.

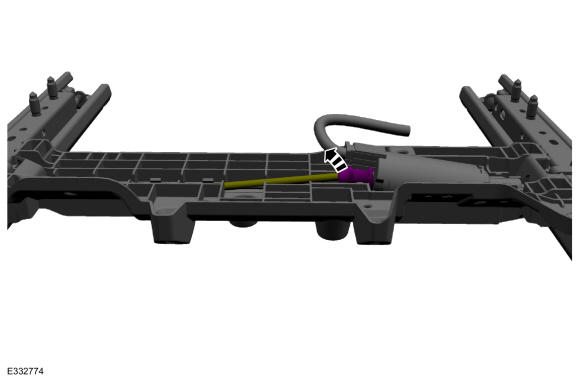

Disconnect the long front seat track motor cable from the front seat track motor.

Courtesy of FORD MOTOR COMPANY

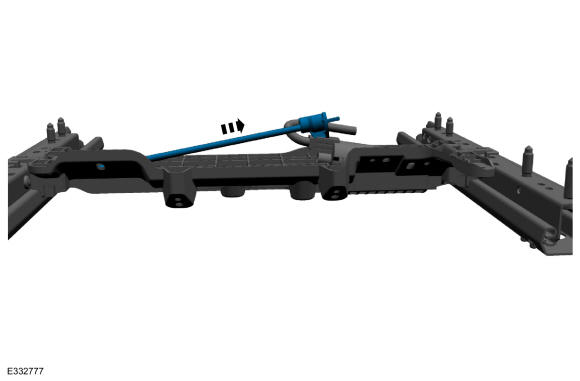

Remove the long front seat track motor cable.

Courtesy of FORD MOTOR COMPANY
NOTE: When positioning the front seat track motor aside the short front seat track motor cable will remain in place.

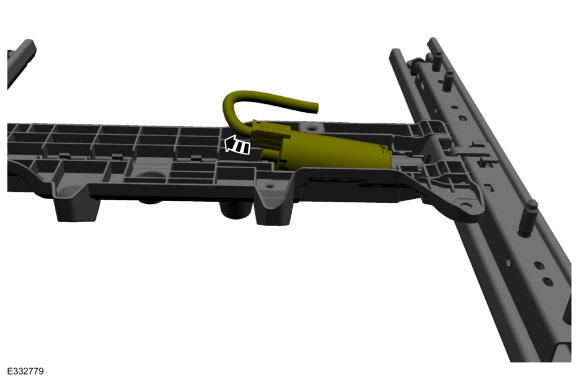

Position the front seat track motor aside.

Courtesy of FORD MOTOR COMPANY

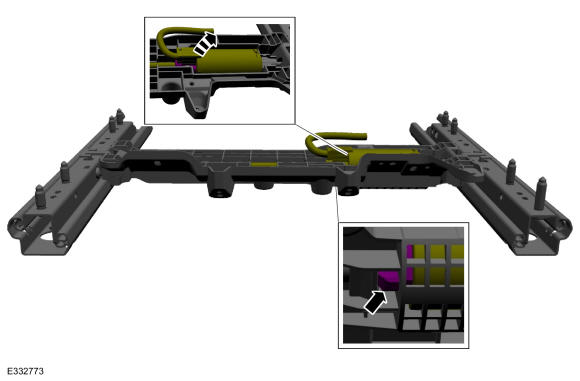

Remove the short front seat track motor cable.

Courtesy of FORD MOTOR COMPANY
