Front Seat Lumbar Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Lumbar adjuster

Remove the front seat. Refer to: Front Seat .
Adjust the manual lumbar to the fully relaxed position.

Courtesy of FORD MOTOR COMPANY

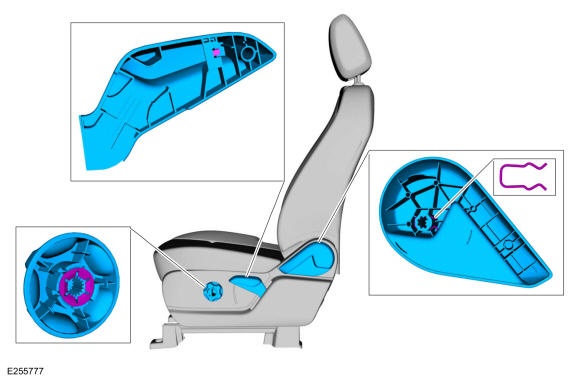

- If equipped with recline handle. Remove the clip and the recline handle.
- If equipped with height adjuster. Release the retaining tab and remove the height adjuster handle.
- Release the retainer and remove the manual lumbar handle.
Courtesy of FORD MOTOR COMPANY

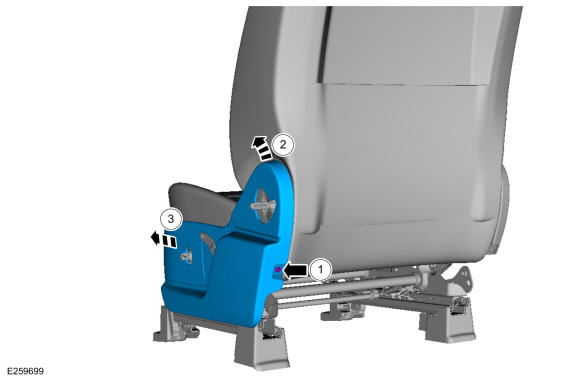

1. Remove the screw.
2. Lift the rear of the side shield up and out.
3. Slide forward and if equipped with a manual seat track, remove the side shield.
Courtesy of FORD MOTOR COMPANY
If equipped with power seat. Position the front seat control switch support bracket aside.
1. Detach the front seat control switch wiring harness.
2. Remove the screws.
Courtesy of FORD MOTOR COMPANY
If equipped with power seat. Disconnect the electrical connectors and remove the side shield.

Courtesy of FORD MOTOR COMPANY

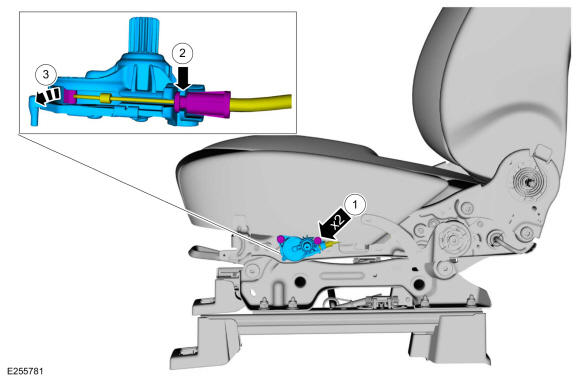

Remove the lumbar adjuster.
1. Remove the screws.
2. Detach the lumbar adjuster cable retainer.
3. Detach the lumbar adjuster cable.
Courtesy of FORD MOTOR COMPANY

Lumbar assembly
Remove the front seat backrest cover and foam. Refer to: Front Seat Backrest Cover .

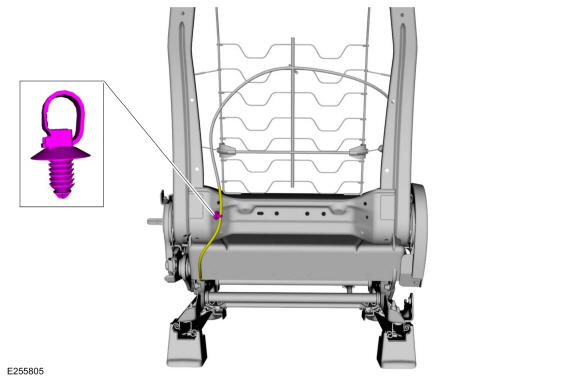

Detach the lumbar cable pin-type retainer and position the lumbar cable aside.

Courtesy of FORD MOTOR COMPANY

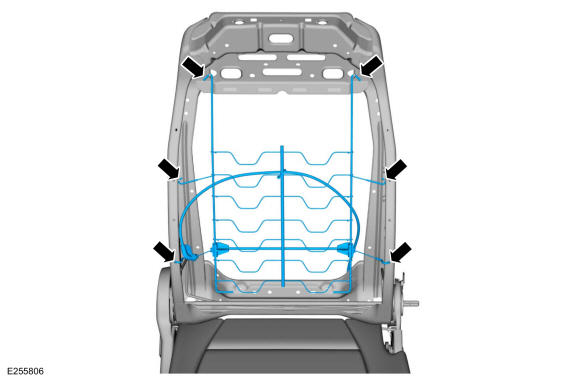

Detach the J-hooks and remove the front seat lumbar assembly.
