Front Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown in illustration, except where called out.
NOTE: Follow the unique instructions or graphics for this step when installing a front passenger seat equipped with OCS.
  1. Remove the front seat. Refer to: Front Seat .
  2. If equipped with manual lumbar. Adjust the manual lumbar to the fully relaxed position.
    GFD328938Courtesy of FORD MOTOR COMPANY
    • If equipped with recline handle. Remove the clip and the recline handle.

    • If equipped with height adjuster. Release the retaining tab and remove the height adjuster handle.

    • If equipped with manual lumbar. Release the retainer and remove the manual lumbar handle.

    GFD328939Courtesy of FORD MOTOR COMPANY
  4. If equipped with manual seat.

    1. Remove the screw.
    2. Lift the rear of the side shield up and out.
    3. Slide forward and remove the side shield.

    GFD328940Courtesy of FORD MOTOR COMPANY
  5. If equipped with power seat.

    1. Remove the screw.
    2. Lift the rear of the side shield up and out.
    3. Slide forward and position the side shield aside.

    GFD328934Courtesy of FORD MOTOR COMPANY
  6. If equipped with power seat. Position the front seat control switch support bracket aside.

    1. Detach the front seat control switch wiring harness.
    2. Remove the screws.

    GFD328935Courtesy of FORD MOTOR COMPANY
  7. If equipped with power seat. Disconnect the electrical connectors and remove the side shield.
    GFD328936Courtesy of FORD MOTOR COMPANY
  8. If equipped with manual lumbar. Remove the lumbar adjuster.

    1. Remove the screws.
    2. Detach the lumbar adjuster cable retainer.
    3. Detach the lumbar adjuster cable.

    GFD328941Courtesy of FORD MOTOR COMPANY

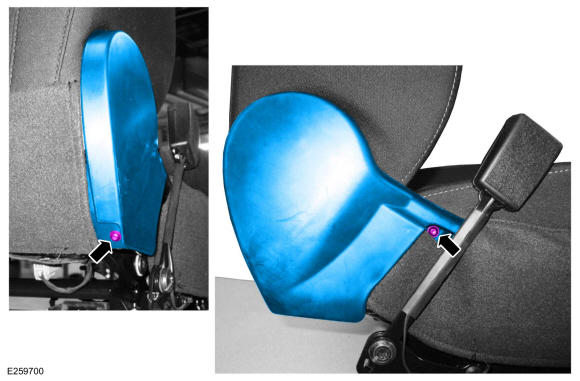

  9. Remove the screws and the recliner cover.
    GFD328942Courtesy of FORD MOTOR COMPANY

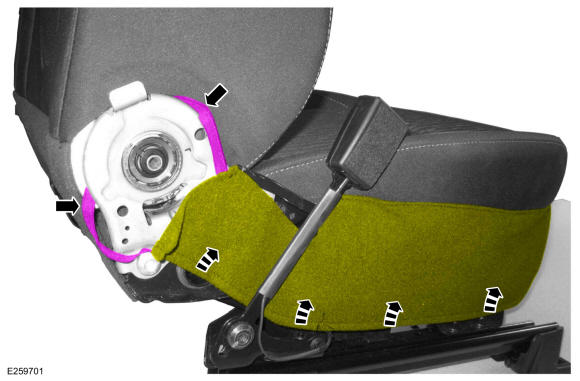

  10. Detach the strap and position the front seat cushion cover apron upward.
    GFD328943Courtesy of FORD MOTOR COMPANY

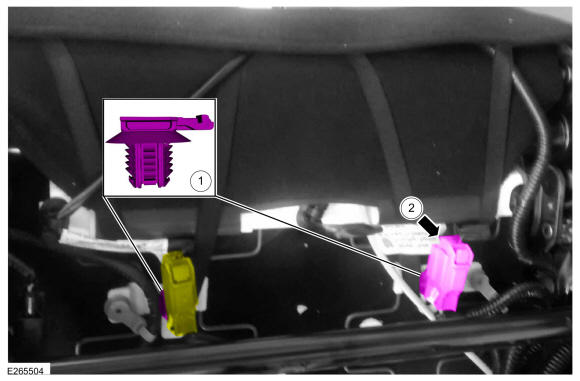

    1. If equipped with heated seat. Detach the electrical connector retainers.
    2. If equipped with heated seat. Disconnect the front seat cushion heater mat electrical connector.
    GFD328944Courtesy of FORD MOTOR COMPANY

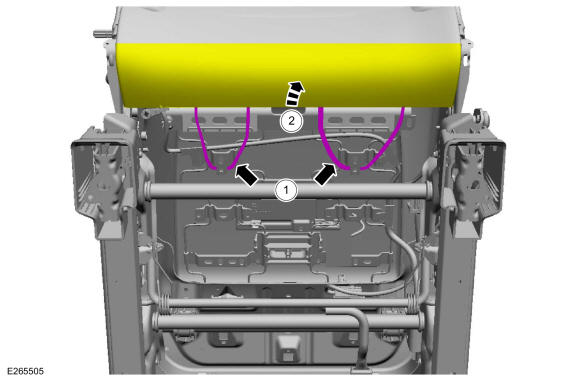

    1. Detach the front seat backrest cover straps.
    2. Position the front seat backrest cover up.
    GFD328945Courtesy of FORD MOTOR COMPANY

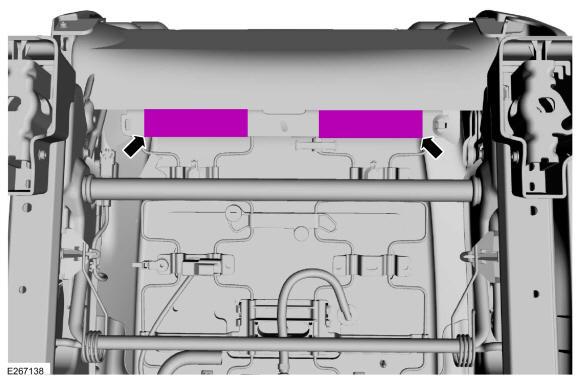

  13. Detach the front seat cushion cover rear J-clips.
    GFD328946Courtesy of FORD MOTOR COMPANY
  14. Route the lumbar cable through the front seat cushion cover.
    GFD328947Courtesy of FORD MOTOR COMPANY

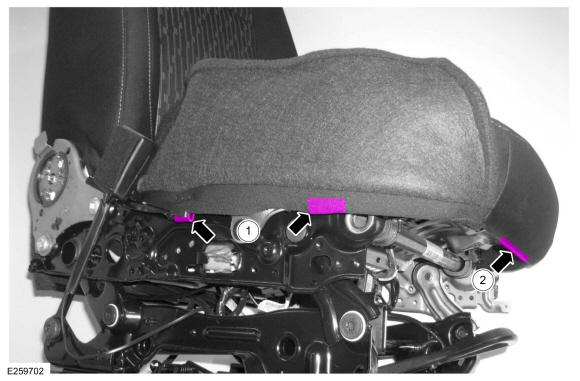

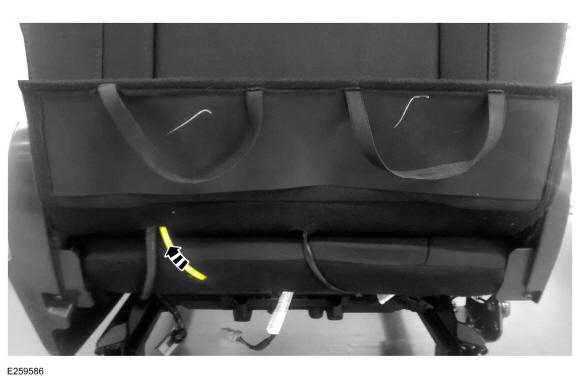

    1. On both sides. Detach the front seat cushion cover J-clips.
    2. Detach the front seat cushion cover J-clip.
    GFD328948Courtesy of FORD MOTOR COMPANY

    Driver seat

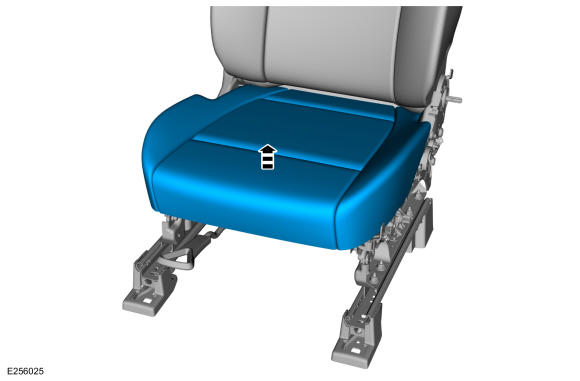

  16. Remove the front seat cushion cover and foam as an assembly.
    GFD328949Courtesy of FORD MOTOR COMPANY

    Passenger seat with seatbelt minder

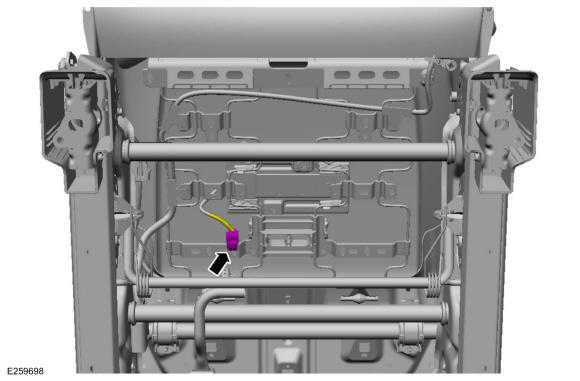

  17. Disconnect the seatbelt minder sensor electrical connector.
    GFD328950Courtesy of FORD MOTOR COMPANY
  18. Lift up on the front seat cushion cover and foam assembly.
    GFD328951Courtesy of FORD MOTOR COMPANY

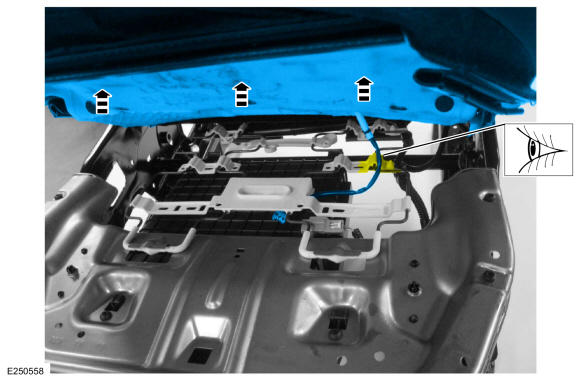

  19. NOTE: For correct installation, note the location of the seatbelt minder sensor wiring pigtail as it passes through the seat track.

    Route out the seatbelt minder sensor wiring pigtail and remove the front seat cushion cover and foam as an assembly.

    GFD328952Courtesy of FORD MOTOR COMPANY

    Passenger seat with OCS

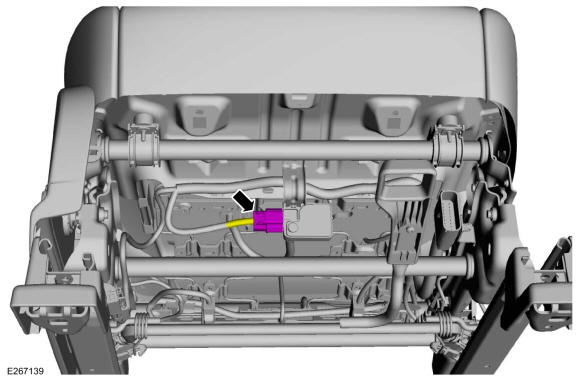

  20. Disconnect the OCS sensor.
    GFD328953Courtesy of FORD MOTOR COMPANY

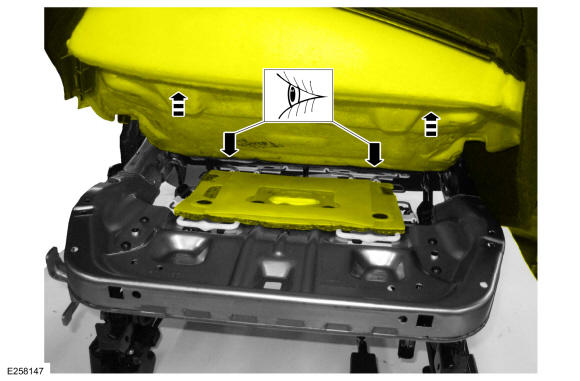

  21. NOTE: When equipped with an OCS service kit, the OCS is adhered to the bottom of the front seat cushion foam. This requires the cushion cover, foam and OCS to be positioned aside as an assembly.

    Lift the front seat cushion foam. If the front seat cushion foam and OCS are adhered together, then the OCS is a service kit. If nothing is adhered together, then the OCS is OE (original equipment).

    GFD328954Courtesy of FORD MOTOR COMPANY

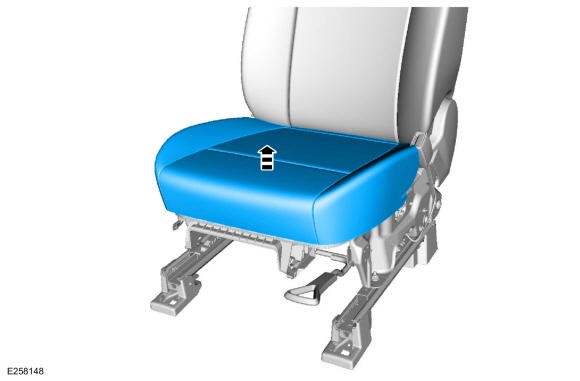

  22. If equipped with an OE OCS. Remove the front seat cushion cover and foam as an assembly.
    GFD328955Courtesy of FORD MOTOR COMPANY
  23. NOTE: Typical OE OCS shown in illustration, service kit similar.

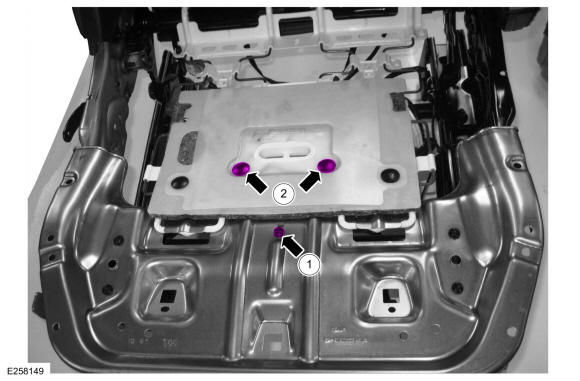

    1. Remove the OCS sensor bracket screw.

      Torque: 44 lb.in (5 Nm)

    2. Remove the OCS pin-type retainers.

    GFD328956Courtesy of FORD MOTOR COMPANY

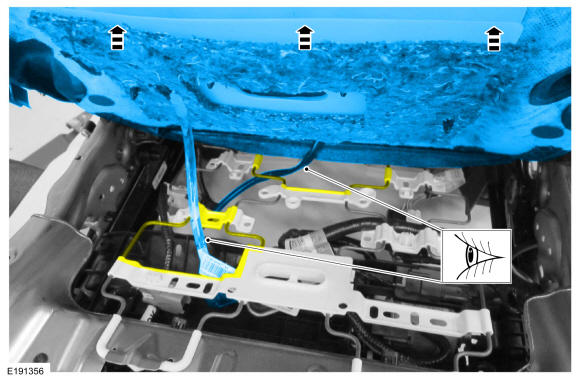

  24. NOTE: For correct installation, note the location of the OCS hose and heater mat pigtail (if equipped) as it passes through the seat springs.

    Route out the OCS hose, sensor, sensor bracket and front heated seat cushion mat wiring pigtail (if equipped) from between the front seat cushion support wires and remove the OCS.

    GFD328957Courtesy of FORD MOTOR COMPANY

    All seats

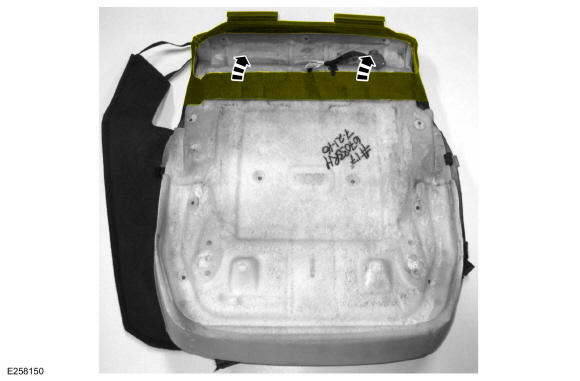

  25. Position the rear portion of the front seat cushion cover from the foam.
    GFD328958Courtesy of FORD MOTOR COMPANY
  26. NOTE: This step is only necessary when installing a new component.
    NOTE: Follow the unique instructions or graphics for this step in installation.

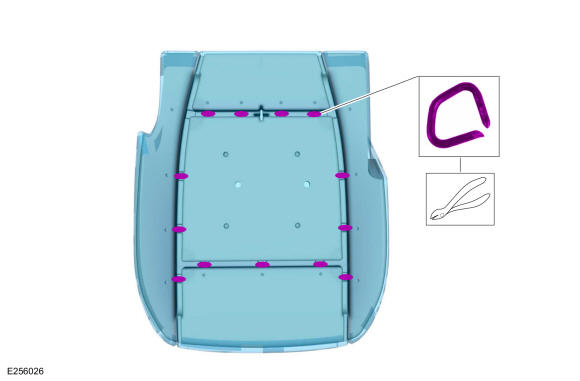

    Remove the hog rings and the front seat cushion cover.

GFD328959Courtesy of FORD MOTOR COMPANY
