Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LHD driver seat shown in illustration, RHD driver seat similar.
  1. Remove the front seat. Refer to: Front Seat .

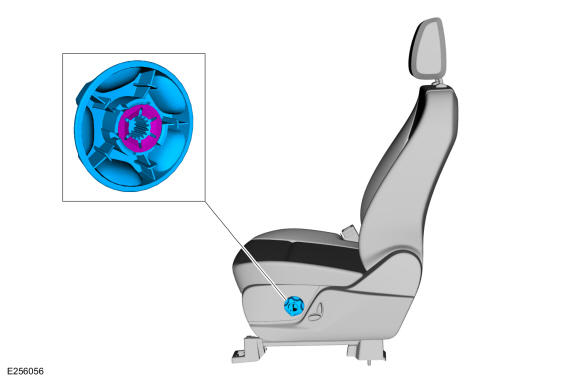

  2. Release the retainer and remove the manual lumbar handle.
    GFD328933Courtesy of FORD MOTOR COMPANY

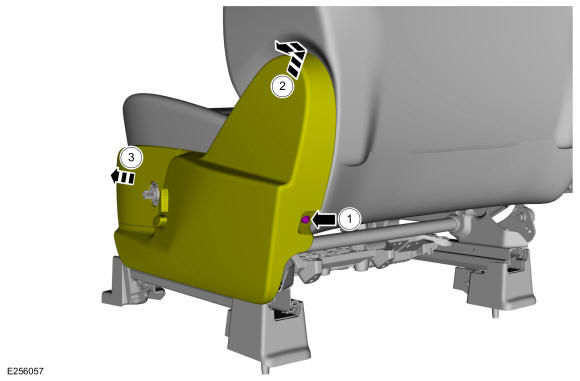

    1. Remove the side shield screw.
    2. Lift the rear of the side shield up and out.
    3. Slide forward and position the side shield aside.
    GFD328934Courtesy of FORD MOTOR COMPANY

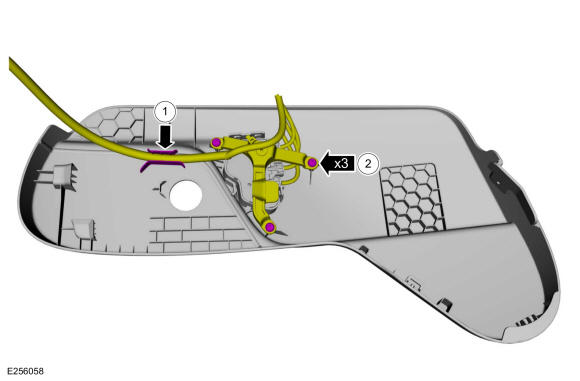

  4. Position the front seat control switch support bracket aside.

    1. Detach the front seat control switch wiring harness.
    2. Remove the screws.

    GFD328935Courtesy of FORD MOTOR COMPANY

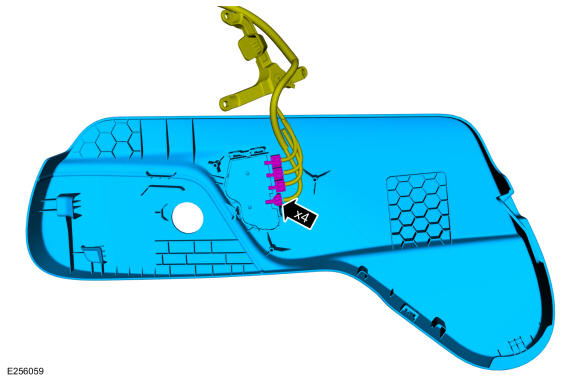

  5. Disconnect the electrical connectors and remove the side shield.
    GFD328936Courtesy of FORD MOTOR COMPANY

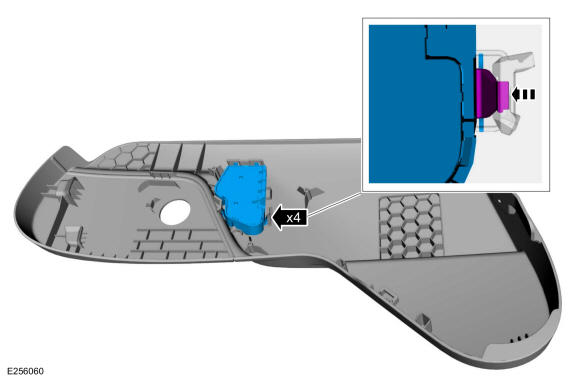

  6. Release the tabs and remove the front seat control switch.
GFD328937Courtesy of FORD MOTOR COMPANY
