Front Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Typical head restraint guide sleeve shown in illustration, others similar.

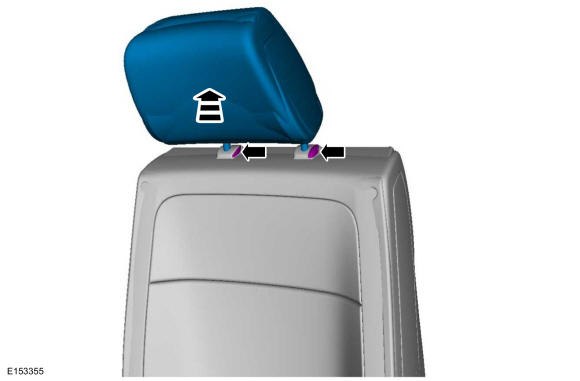

  1. Depress the locking tabs and remove the head restraint.
    GFD328919Courtesy of FORD MOTOR COMPANY

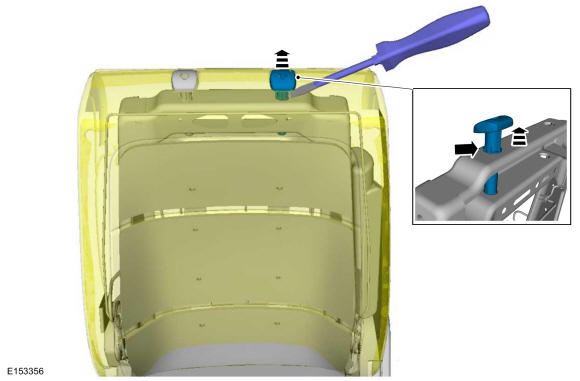

  2. Remove the headrest restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver
    GFD328920Courtesy of FORD MOTOR COMPANY

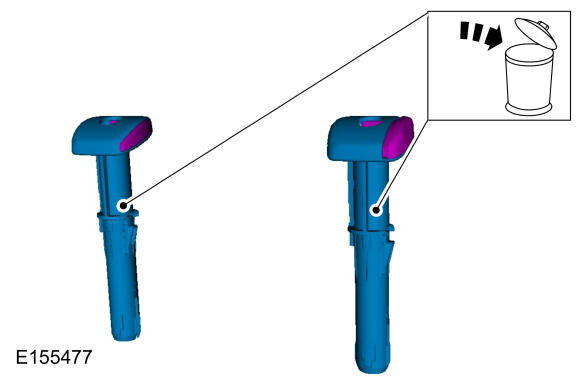

  3. Discard the head restraint guide sleeves.
GFD328921Courtesy of FORD MOTOR COMPANY
