Ignition Coil-On-Plug: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

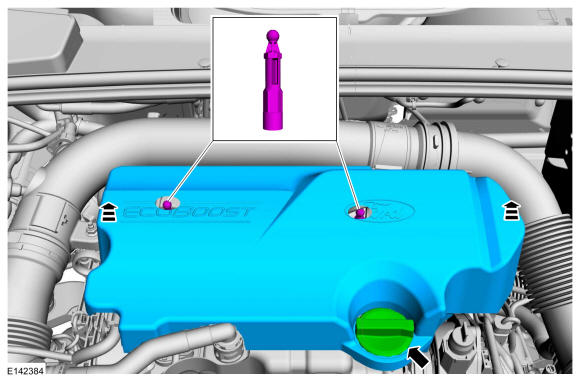

Remove the oil filler cap and then remove the engine appearance cover. Install the oil filler cap.

Courtesy of FORD MOTOR COMPANY

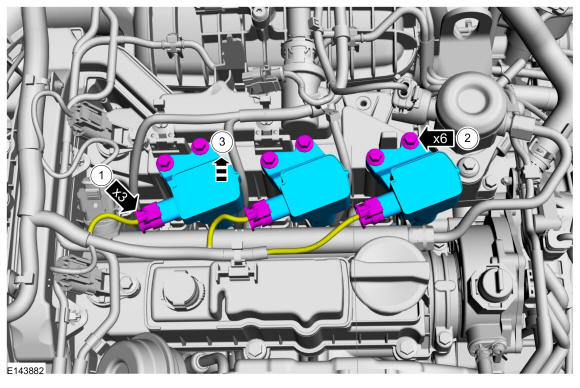

1. Slide the red locking tab (CPA) back away from the ignition coil-on-plug, depress the latch and then remove the connector from the ignition coil-on-plug.
2. Remove the ignition coil-on-plug bolts.
3. Using compressed air, remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs. Remove the ignition coil-on-plugs.

Courtesy of FORD MOTOR COMPANY
