Ignition Coil-On-Plug: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Inspect and replace any ignition coil-on-plugs that have rubber boots with cracks, rips or tears.

Courtesy of FORD MOTOR COMPANY

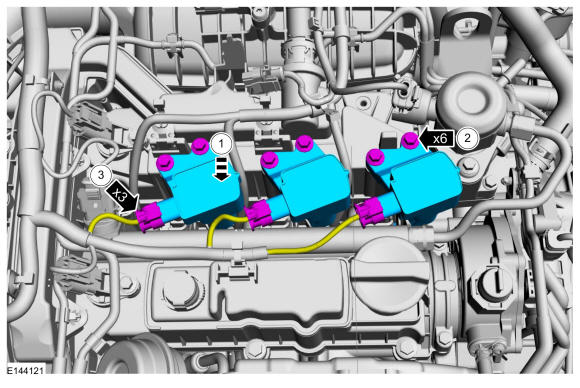

1. Install the ignition coil-on-plugs.
2. Install and tighten the ignition coil-on-plug bolts.
  Torque: 89 lb.in (10 Nm)
3. Push the wire harness side connector onto the ignition coil-on-plug connector until locked. A clicking sound will be heard when fully seated. Slide the red locking tab (CPA) toward the ignition coil-on-plug until a second clicking sound is heard.
Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
