Ignition Coil-On-Plug: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.

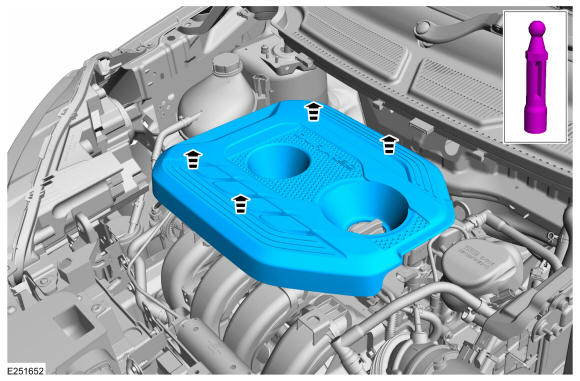

- Remove the engine appearance cover.
- Using compressed air, remove any foreign material from the ignition coil-on-plugs and surrounding area. Remove the ignition coil-on-plugs.

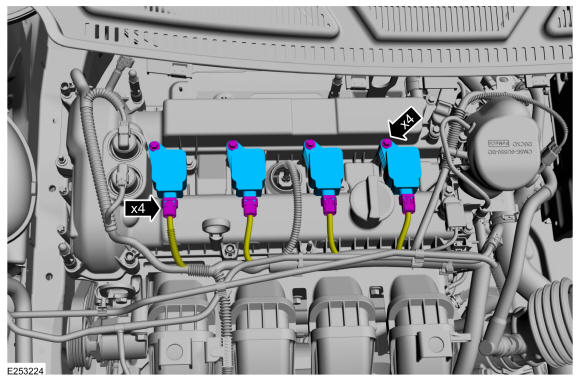

- Slide the ignition coil-on-plug electrical connector cover back to gain access to the locking tab, slide the locking tab back away from the ignition coil-on-plug, depress the latch and then disconnect the ignition coil-on-plug electrical connector. Remove the ignition coil-on-plug bolts and then remove the ignition coil-on-plugs.
Torque: 89 lb.in (10 Nm)

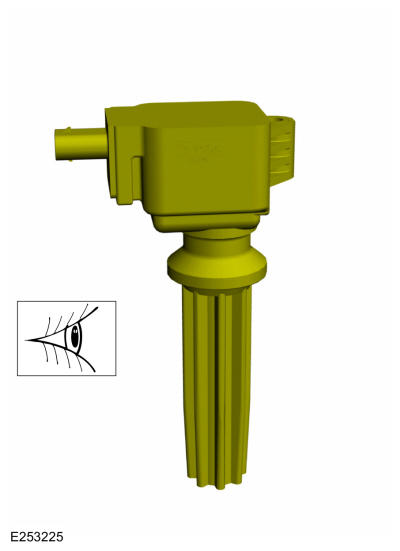

- Inspect the ignition coil-on-plug assembly for cracks, rips or tears. Replace any damaged coil-on-plug assembly's.
