Throttle Body: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
- If equipped, remove the engine appearance cover.
- Remove the air cleaner outlet pipe.
-
NOTE: When disconnecting the throttle body electrical connector disengage the locking tab on the throttle body electrical connector by sliding it to the rear of the throttle body electrical connector, away from the throttle body. Squeeze the throttle body electrical connector while removing.
Detach the throttle body harness retainer, then disconnect the throttle body electrical connector.

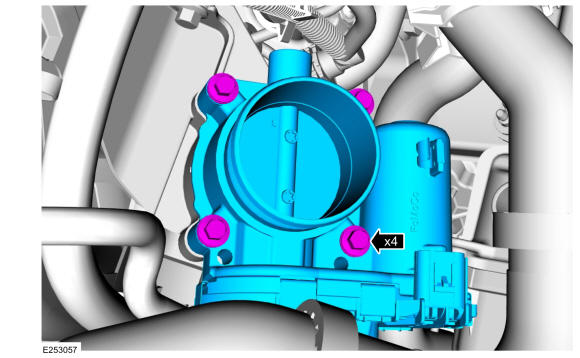

- Remove the throttle body bolts, then remove the throttle body.
