High-Pressure Fuel Pump Drive Unit: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Make sure that the mating faces are clean and free of foreign material.
-
- Make sure that the mating faces are clean and free of foreign material.

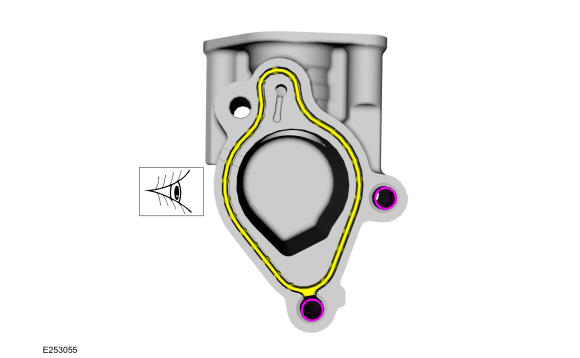

- Inspect the high-pressure fuel pump drive unit gasket, clean and replace the high-pressure fuel pump drive unit gasket as needed.
-
- During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

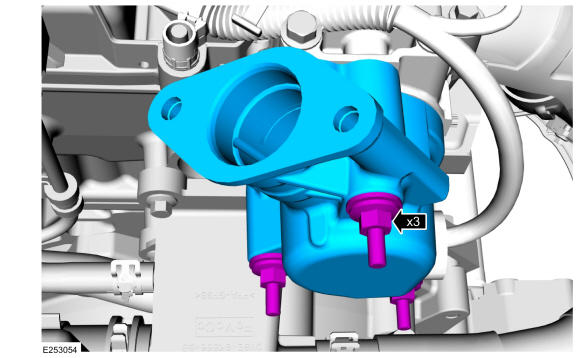

- Install the high-pressure fuel pump drive unit, then install and tighten the high-pressure fuel pump drive unit studbolts in the following 2 stages.
Torque: Stage 1: 16 lb.ft (22 Nm) Stage 2: 45 deg.

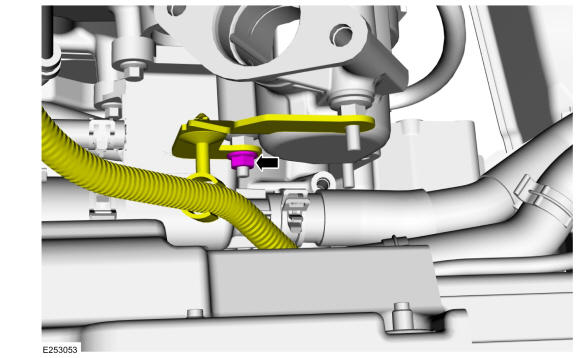

- Install the fuel supply tube and bracket, install and tighten the fuel supply tube bracket nut.
Torque: 97 lb.in (11 Nm)

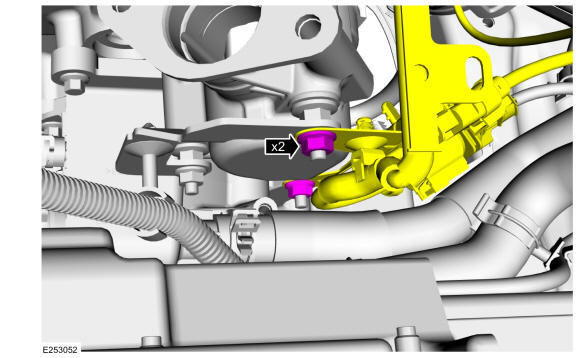

- Install the wire harness and bracket, install and tighten the wire harness bracket nuts.
Torque: 97 lb.in (11 Nm)
-
- During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

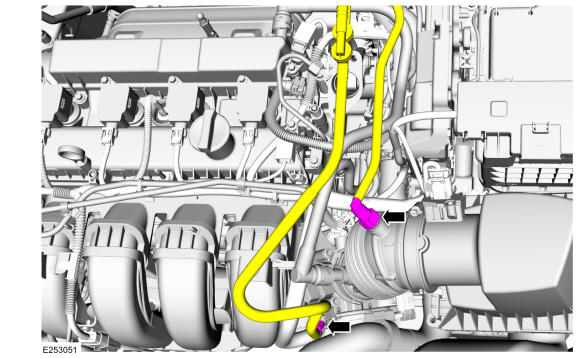

- Install the crankcase ventilation tube, then connect the quick release couplings. Refer to: Quick Release Coupling .
-
- During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

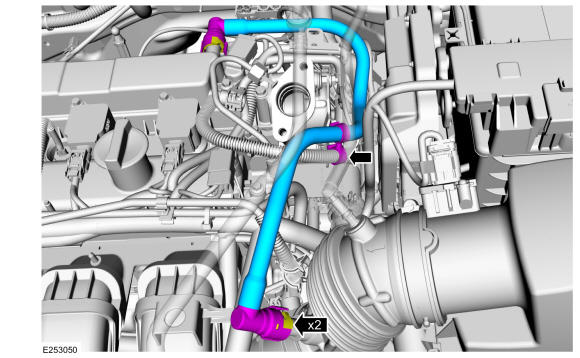

- Connect the vacuum tube quick release couplings. Refer to: Quick Release Coupling .
- Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
