Fuel Pump Driver Module (FPDM): Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
The fuel pump driver module is located under the left front carpet, attached to the rear of the front floor cross support in front of the left front seat.
Vehicles with a carpet access flap

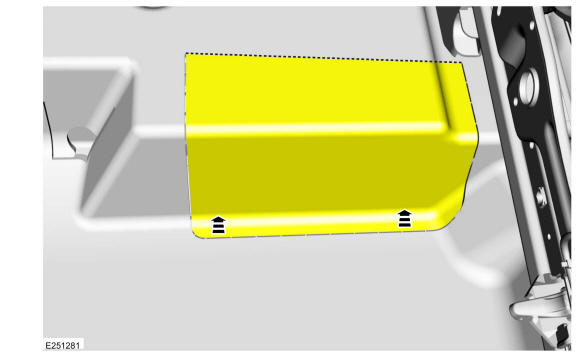

- Move the left front seat to the full rear position. Lift the carpet access flap up and out of the way.
Vehicles without a carpet access flap
- Remove the left front seat. Refer to: Front Seat .
- Remove the lower left b-pillar trim panel. Refer to: B-Pillar Trim Panel .
-
- Release the retainers and remove the LH lower cowl trim panel.
- Position the carpet up and out of the way.
All vehicles
- Disconnect the fuel pump driver module electrical connector.

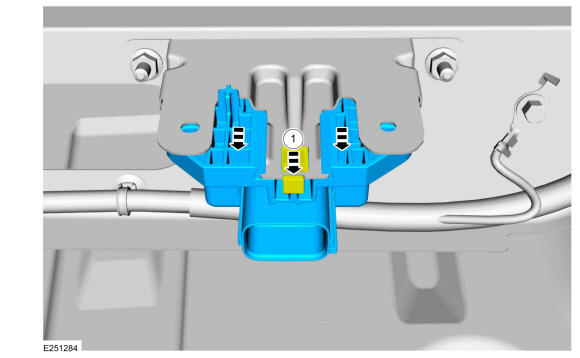

- Release the fuel pump driver module retaining tab and then remove the fuel pump driver module from the bracket.
- If needed, remove the fuel pump driver module bracket nuts, then remove the bracket.
