Fuel Pump Driver Module (FPDM): Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

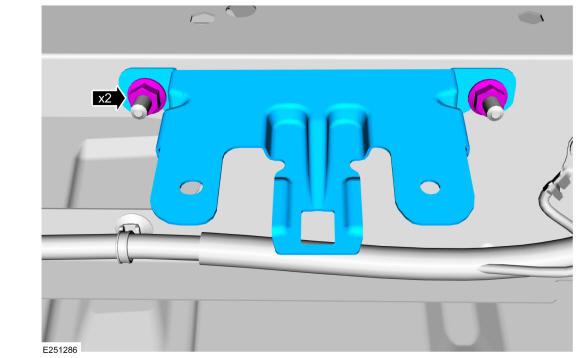

If removed, install the fuel pump driver module bracket, then install and tighten the nuts.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

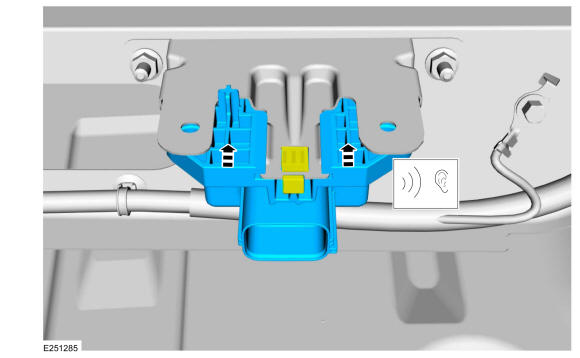

Install the fuel pump driver module to the bracket until it clicks into position.

Courtesy of FORD MOTOR COMPANY

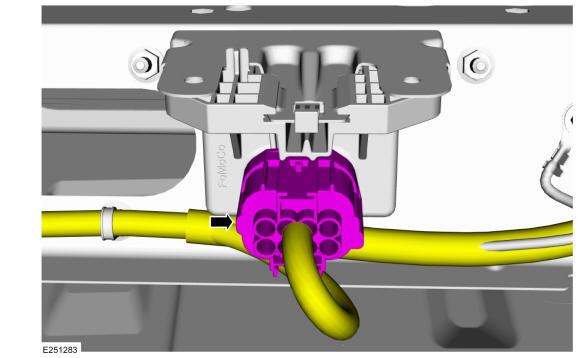

Connect the fuel pump driver module electrical connector.

Courtesy of FORD MOTOR COMPANY

Vehicles without a carpet access flap
1. Position the carpet back.
2. Install the LH lower cowl trim panel.
Courtesy of FORD MOTOR COMPANY
Install the lower left b-pillar trim panel. Refer to: B-Pillar Trim Panel .
Install the left front seat. Refer to: Front Seat .
Vehicles with a carpet access flap

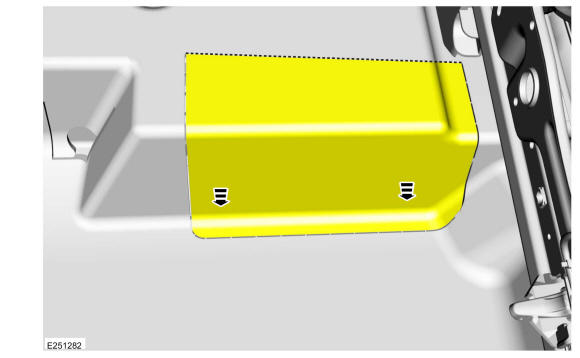

Position the carpet access flap back down, then move the left front seat to it's original position.

Courtesy of FORD MOTOR COMPANY
