1.0L EcoBoost

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

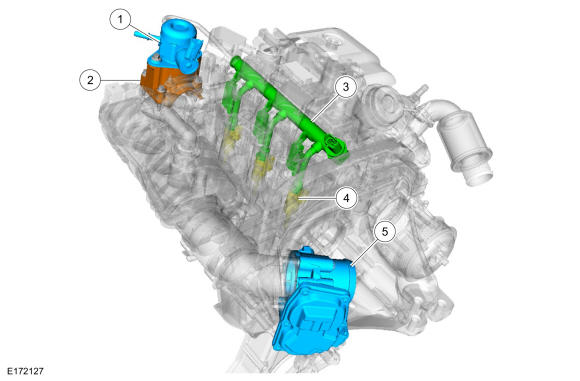

GFD326238Courtesy of FORD MOTOR COMPANY
Item Description
1 Fuel injection pump
2 Fuel injection pump mounting bracket
3 Fuel rail
4 Fuel injector(s)
5 Throttle Body (TB)
