Remote Keyless Entry And Alarm

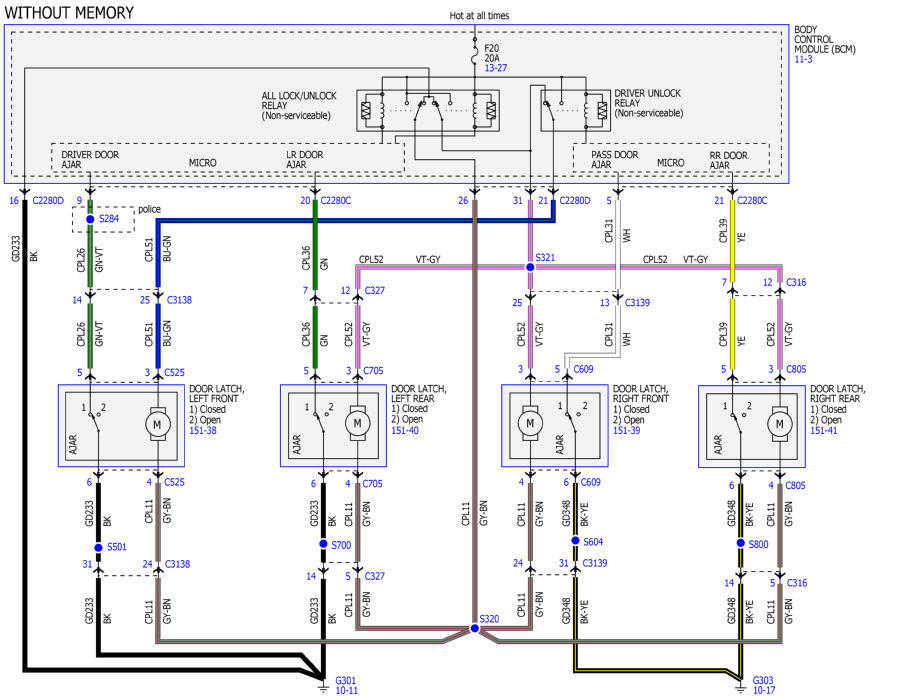

Fig 1: Remote Keyless Entry and Alarm (1 Of 12)

GFDWR31226

Courtesy of FORD MOTOR COMPANY

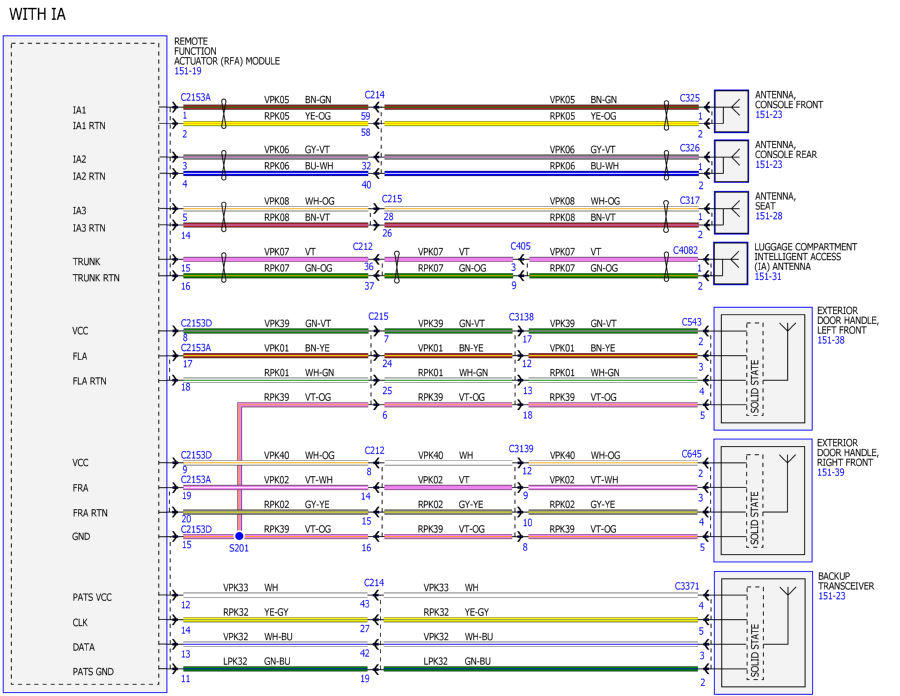

Fig 2: Remote Keyless Entry and Alarm (2 Of 12)

GFDWR31227

Courtesy of FORD MOTOR COMPANY

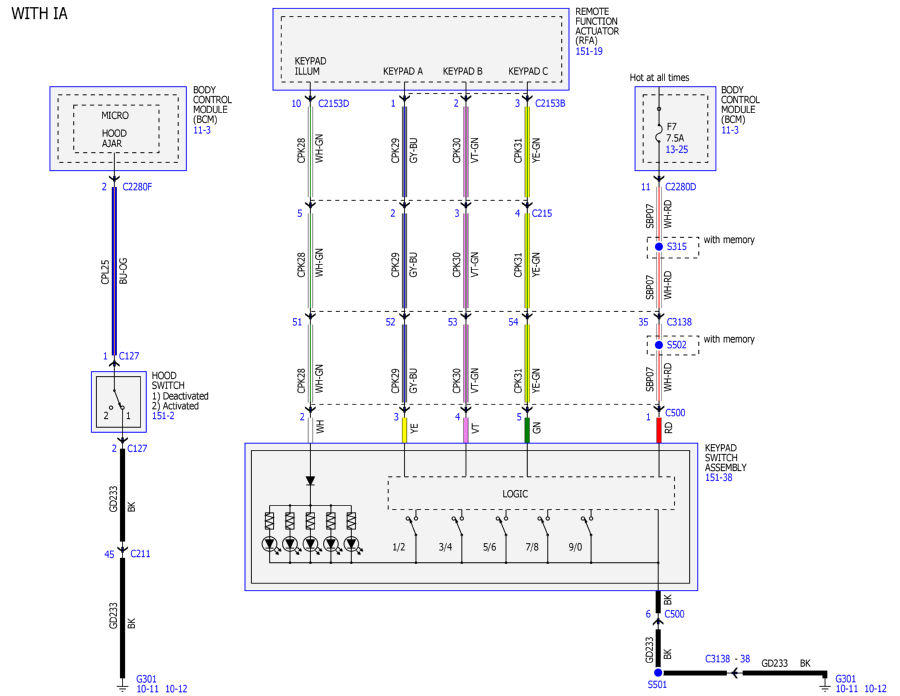

Fig 3: Remote Keyless Entry and Alarm (3 Of 12)

GFDWR31228

Courtesy of FORD MOTOR COMPANY

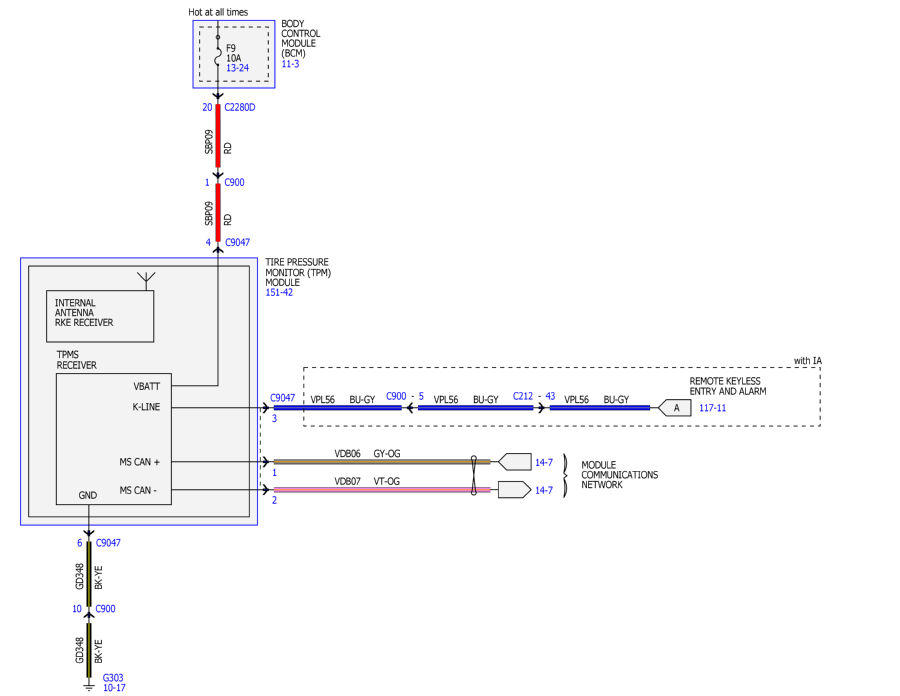

Fig 4: Remote Keyless Entry and Alarm (4 Of 12)

GFDWR31229

Courtesy of FORD MOTOR COMPANY

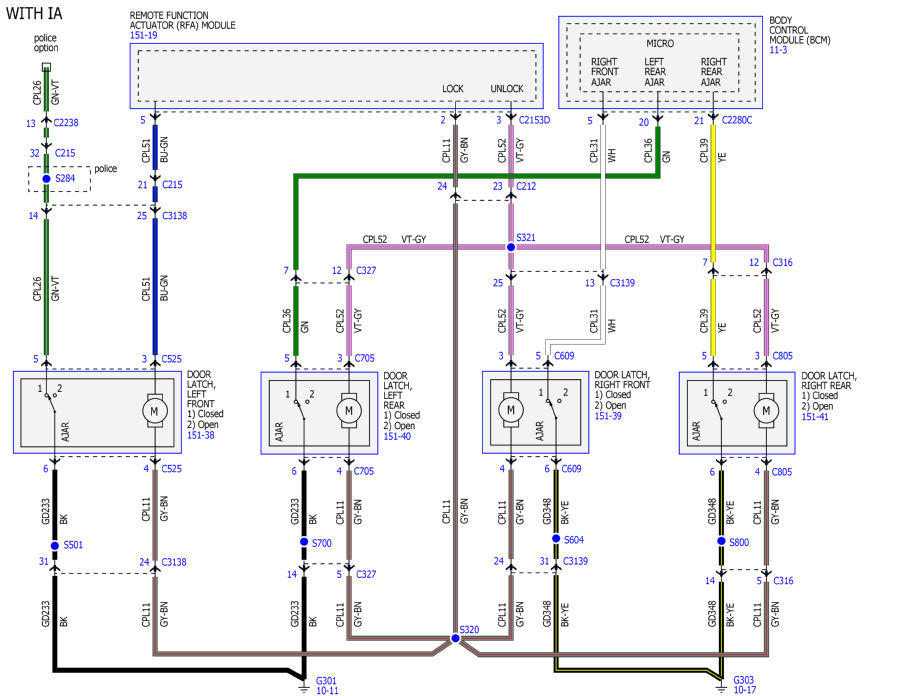

Fig 5: Remote Keyless Entry and Alarm (5 Of 12)

GFDWR31230

Courtesy of FORD MOTOR COMPANY

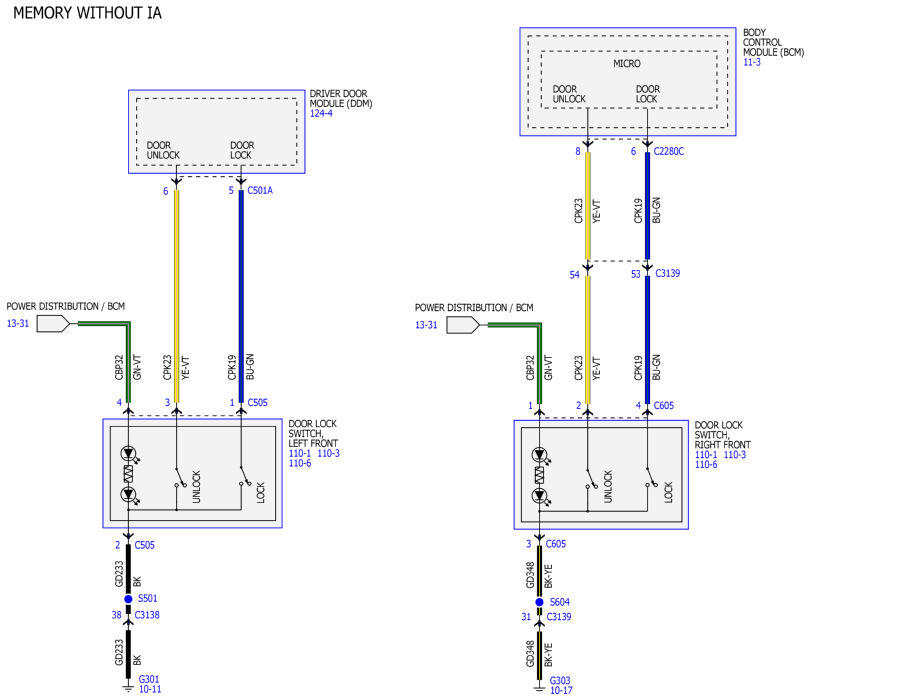

Fig 6: Remote Keyless Entry and Alarm (6 Of 12)

GFDWR31231

Courtesy of FORD MOTOR COMPANY

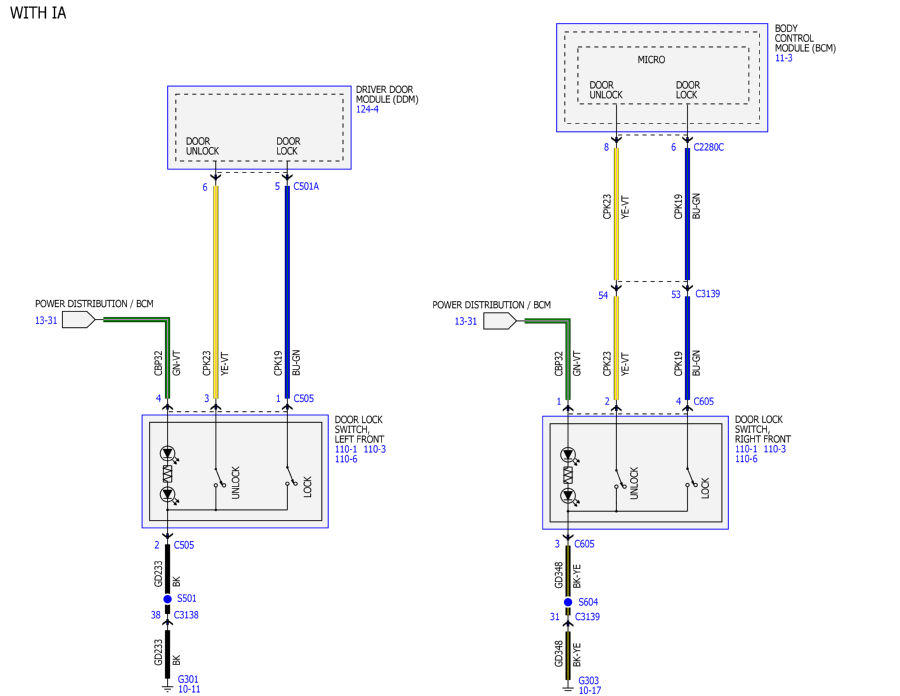

Fig 7: Remote Keyless Entry and Alarm (7 Of 12)

GFDWR31232

Courtesy of FORD MOTOR COMPANY

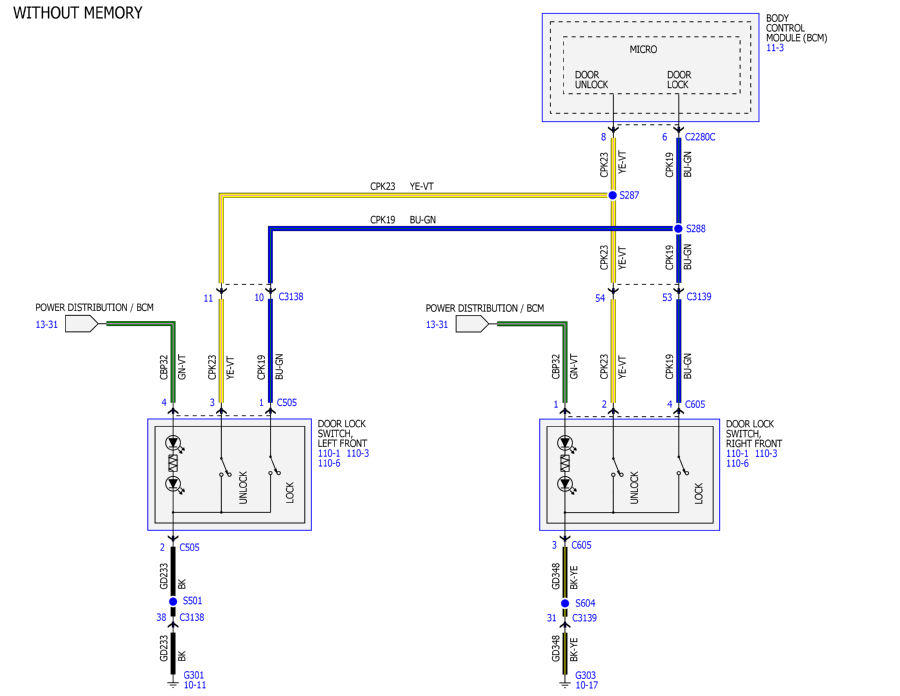

Fig 8: Remote Keyless Entry and Alarm (8 Of 12)

GFDWR31233

Courtesy of FORD MOTOR COMPANY

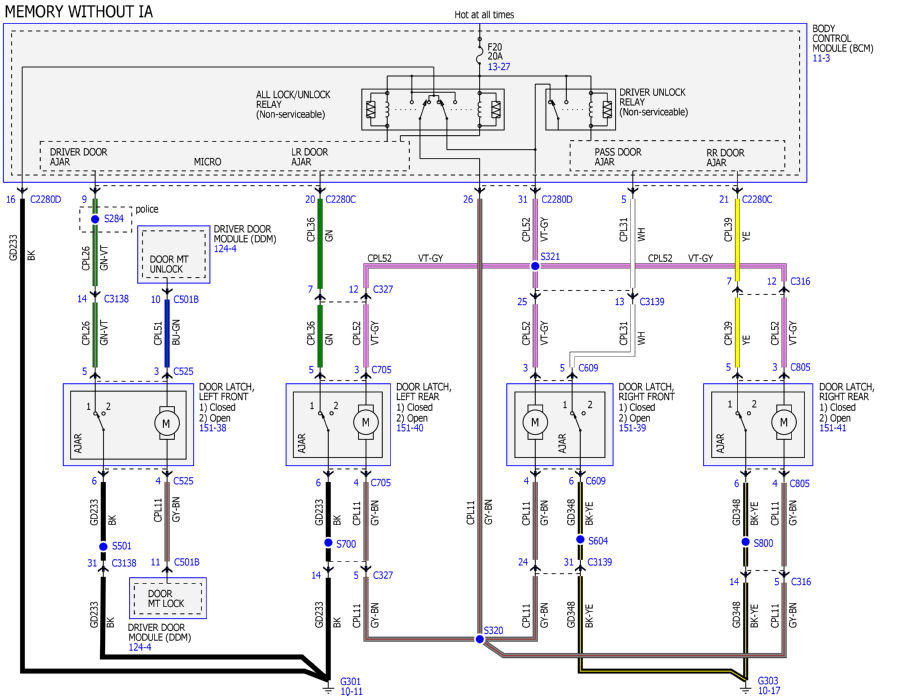

Fig 9: Remote Keyless Entry and Alarm (9 Of 12)

GFDWR31234

Courtesy of FORD MOTOR COMPANY

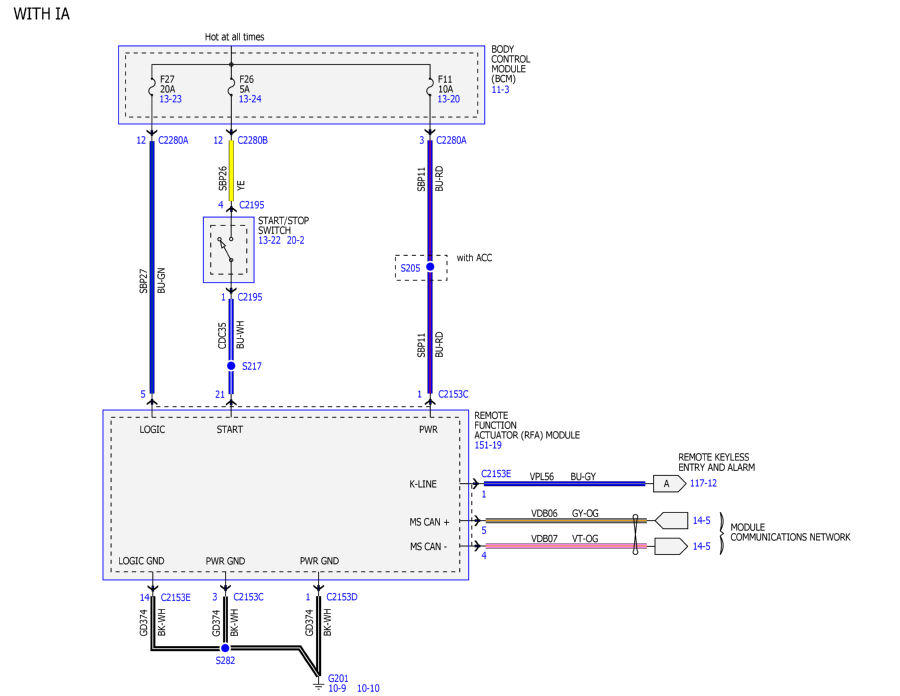

Fig 10: Remote Keyless Entry and Alarm (10 Of 12)

GFDWR31235

Courtesy of FORD MOTOR COMPANY

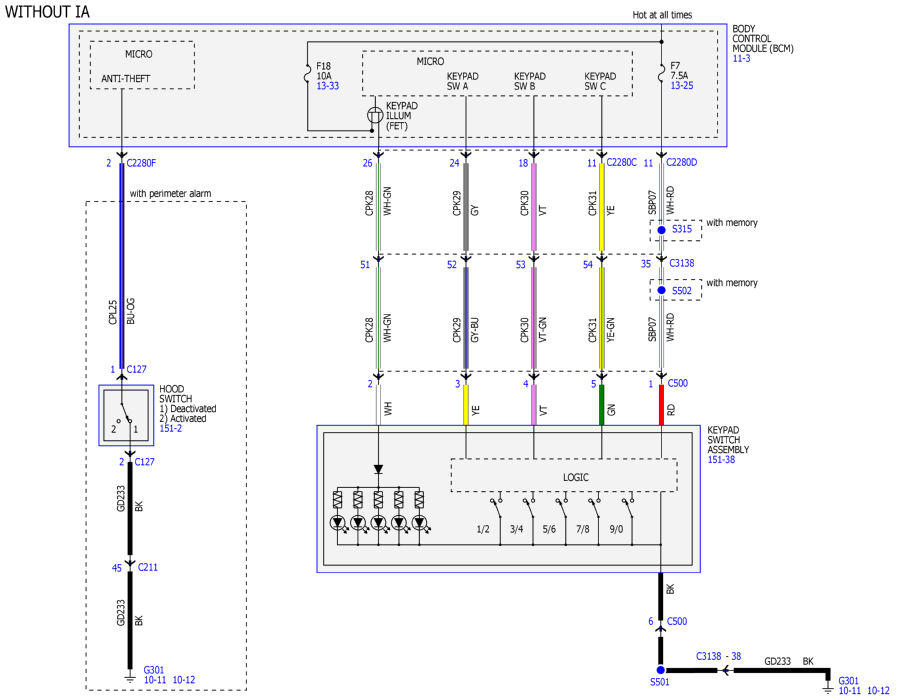

Fig 11: Remote Keyless Entry and Alarm (11 Of 12)

GFDWR31236

Courtesy of FORD MOTOR COMPANY

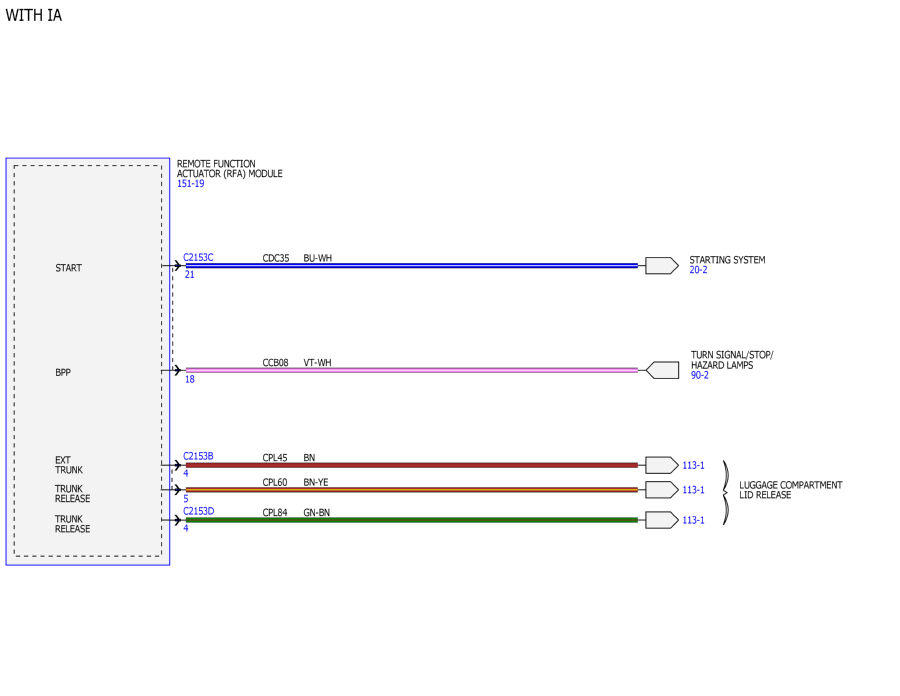

Fig 12: Remote Keyless Entry and Alarm (12 Of 12)

GFDWR31237

Courtesy of FORD MOTOR COMPANY
