Power Seats

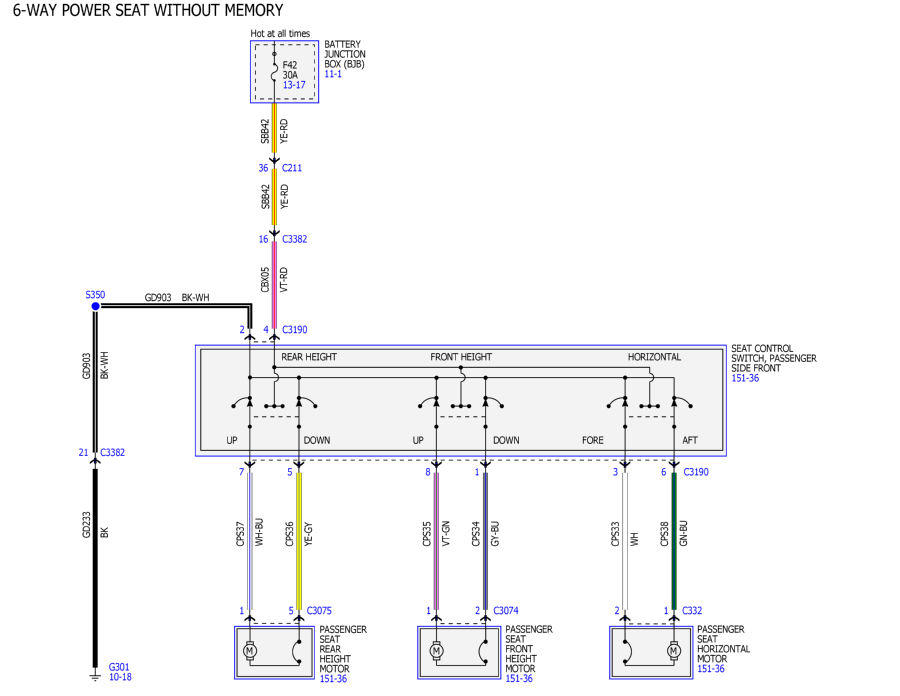

Fig 1: Power Seats Wiring Diagram (1 Of 6)
GFDWR31212Courtesy of FORD MOTOR COMPANY

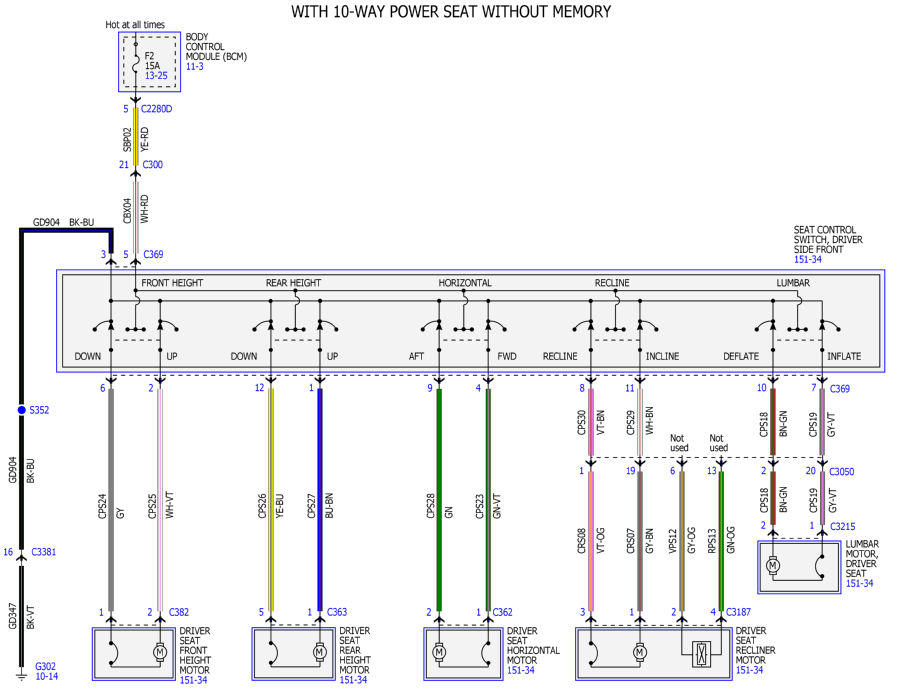

Fig 2: Power Seats Wiring Diagram (2 Of 6)
GFDWR31213Courtesy of FORD MOTOR COMPANY

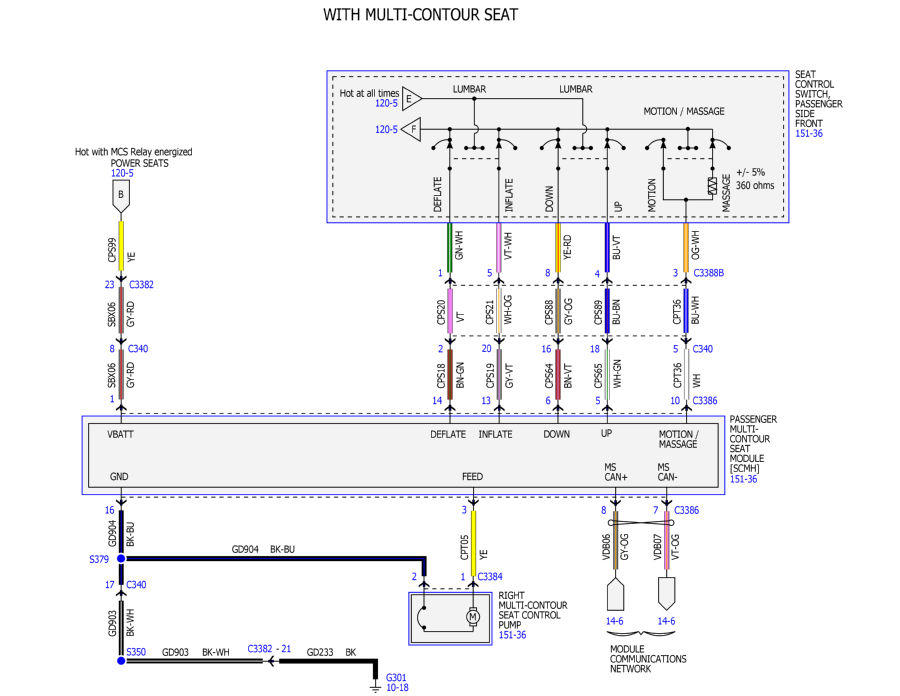

Fig 3: Power Seats Wiring Diagram (3 Of 6)
GFDWR31214Courtesy of FORD MOTOR COMPANY

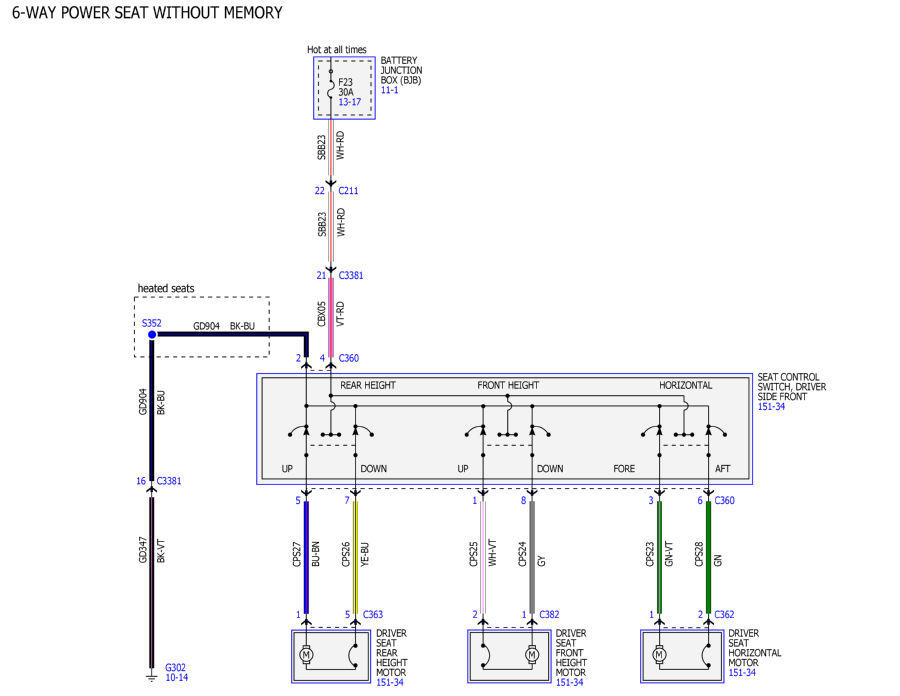

Fig 4: Power Seats Wiring Diagram (4 Of 6)
GFDWR31215Courtesy of FORD MOTOR COMPANY

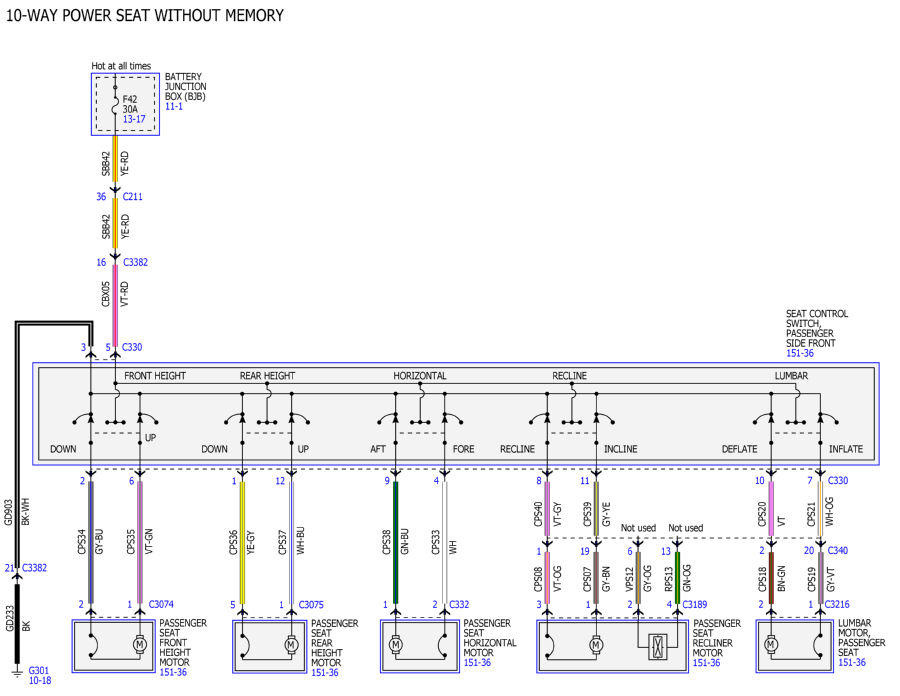

Fig 5: Power Seats Wiring Diagram (5 Of 6)
GFDWR31216Courtesy of FORD MOTOR COMPANY

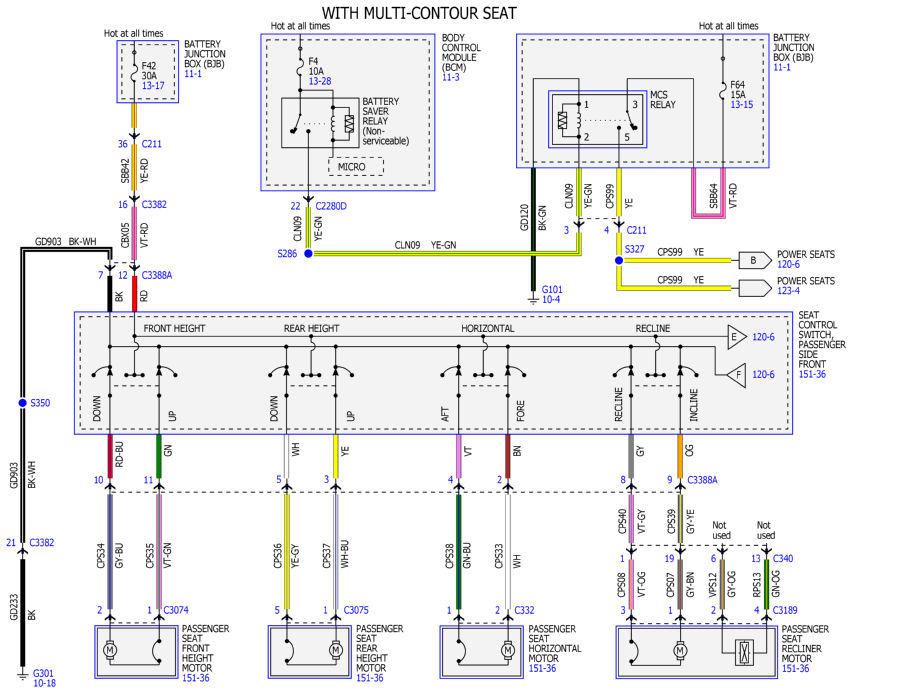

Fig 6: Power Seats Wiring Diagram (6 Of 6)
GFDWR31217Courtesy of FORD MOTOR COMPANY
