Memory Seats

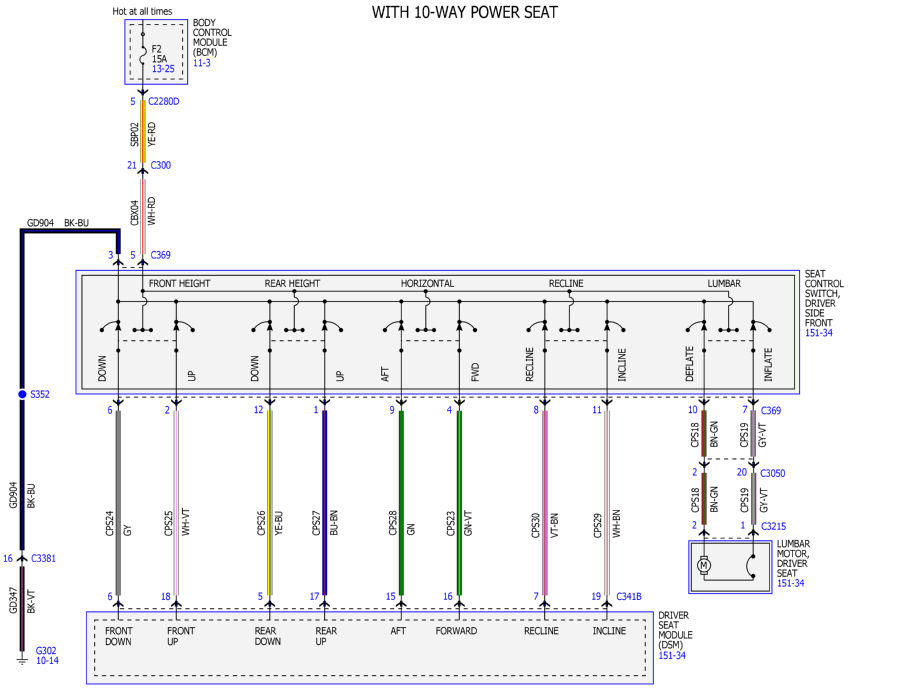

Fig 1: Memory Seats Wiring Diagram (1 Of 8)

GFDWR31094

Courtesy of FORD MOTOR COMPANY

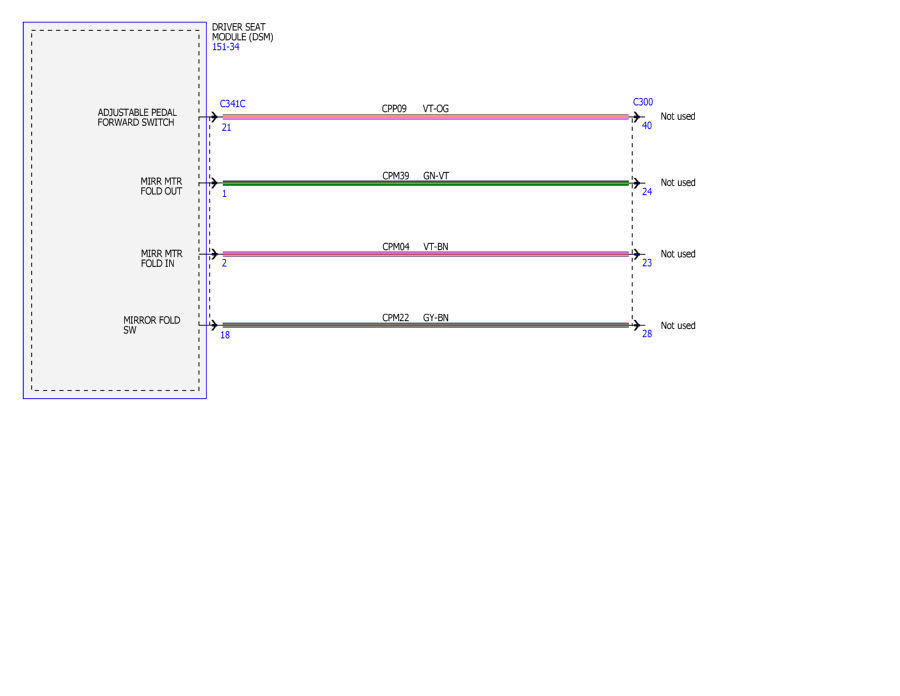

Fig 2: Memory Seats Wiring Diagram (2 Of 8)

GFDWR31095

Courtesy of FORD MOTOR COMPANY

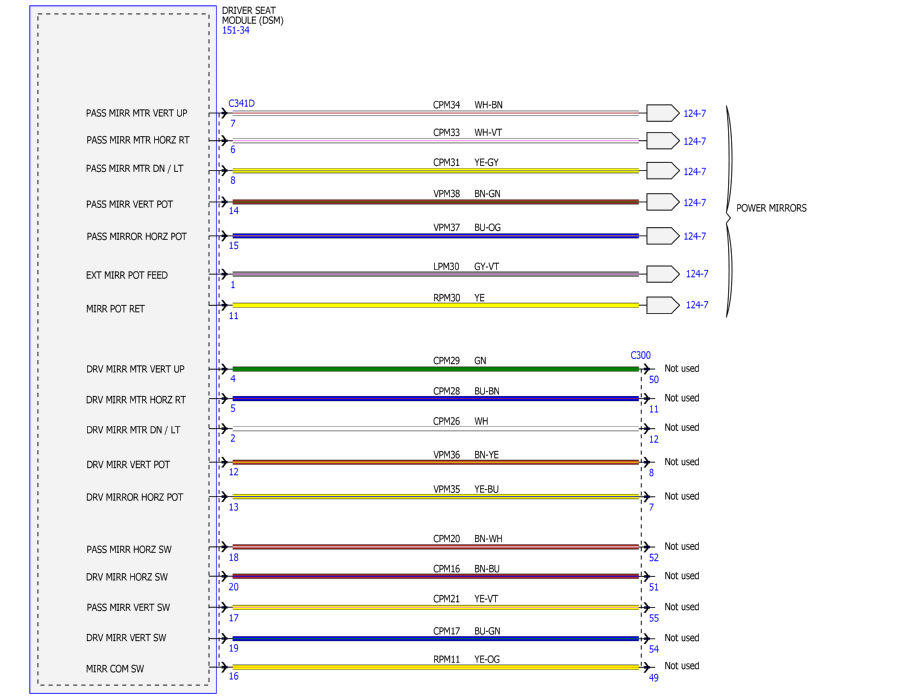

Fig 3: Memory Seats Wiring Diagram (3 Of 8)

GFDWR31096

Courtesy of FORD MOTOR COMPANY

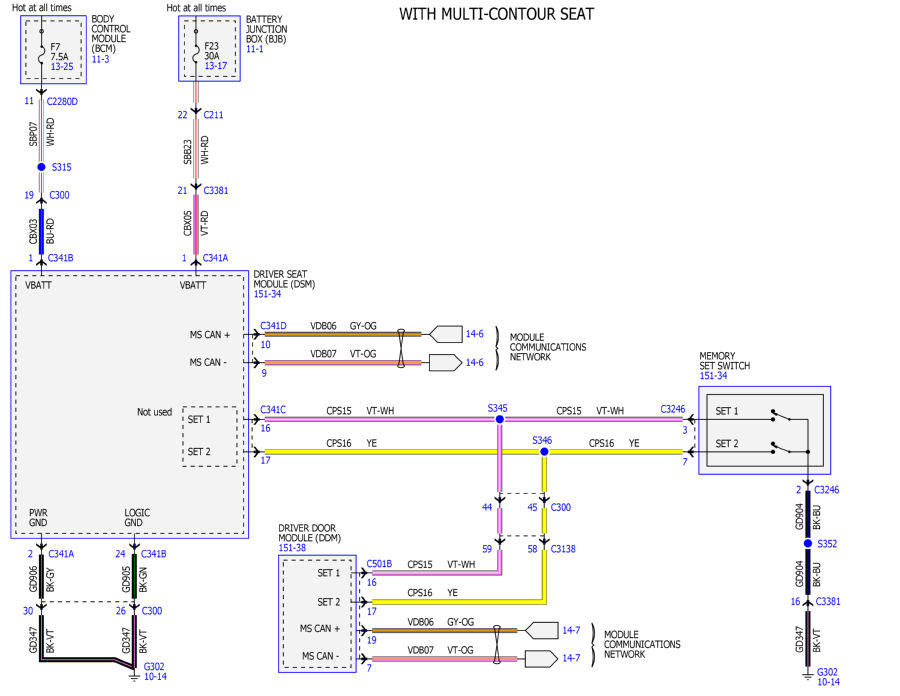

Fig 4: Memory Seats Wiring Diagram (4 Of 8)

GFDWR31097

Courtesy of FORD MOTOR COMPANY

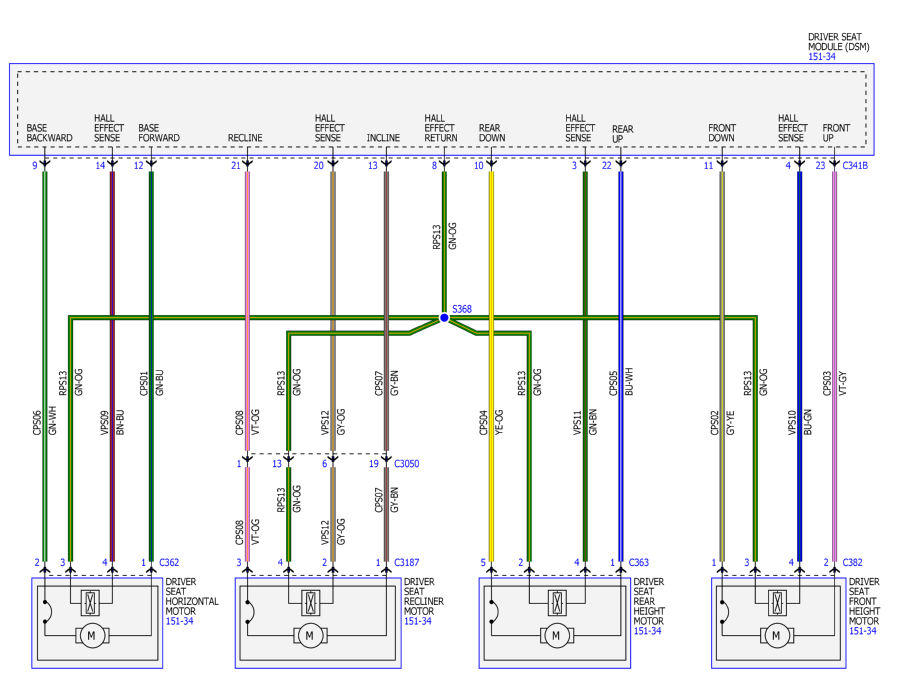

Fig 5: Memory Seats Wiring Diagram (5 Of 8)

GFDWR31098

Courtesy of FORD MOTOR COMPANY

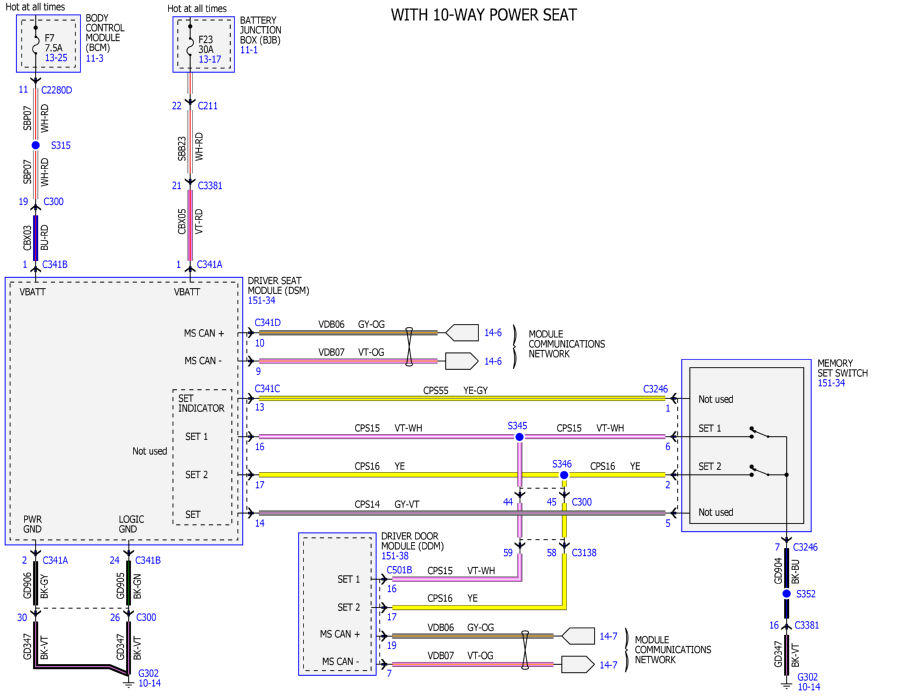

Fig 6: Memory Seats Wiring Diagram (6 Of 8)

GFDWR31099

Courtesy of FORD MOTOR COMPANY

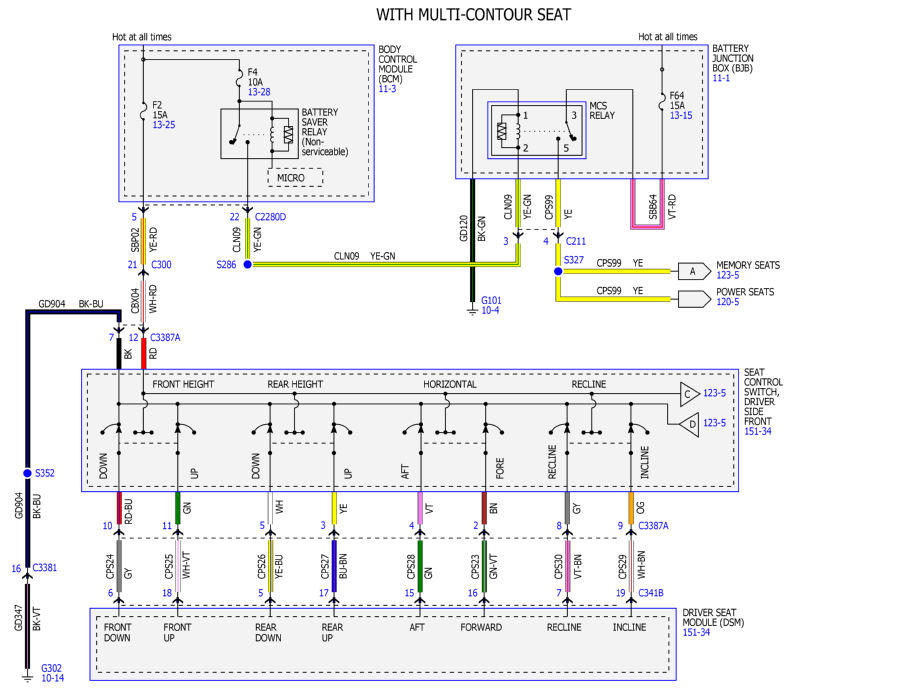

Fig 7: Memory Seats Wiring Diagram (7 Of 8)

GFDWR31100

Courtesy of FORD MOTOR COMPANY

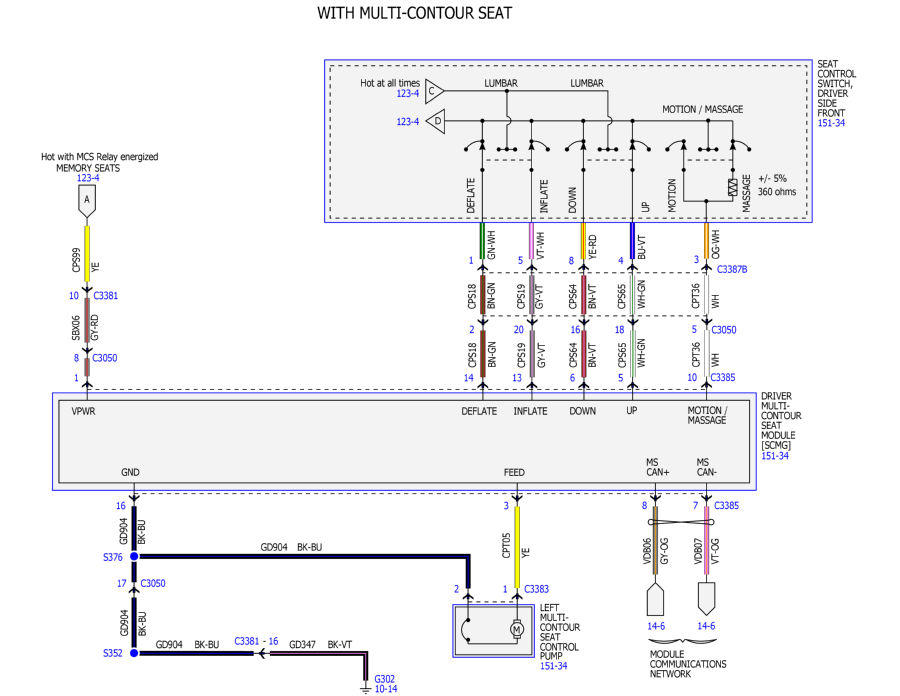

Fig 8: Memory Seats Wiring Diagram (8 Of 8)

GFDWR31101

Courtesy of FORD MOTOR COMPANY
