Climate Controlled Seats

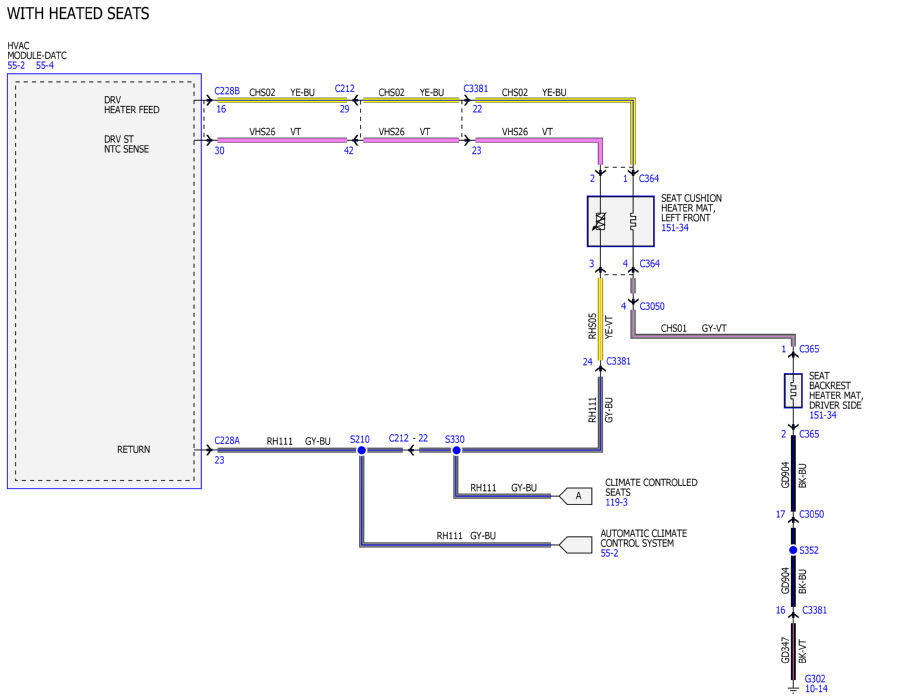

Fig 1: Climate Controlled Seats Wiring Diagram (1 Of 8)
GFDWR31004Courtesy of FORD MOTOR COMPANY

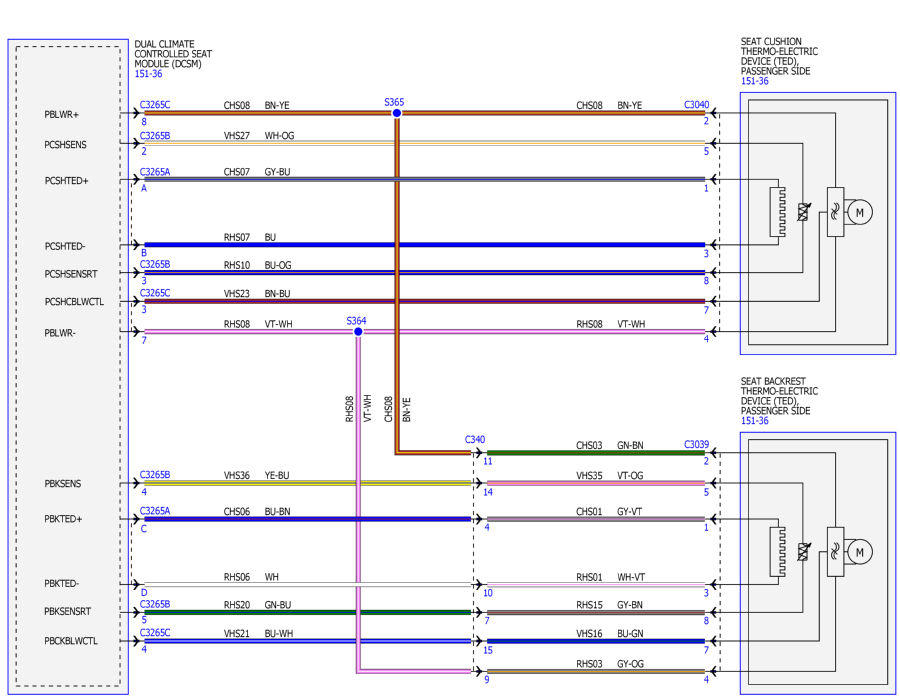

Fig 2: Climate Controlled Seats Wiring Diagram (2 Of 8)
GFDWR31005Courtesy of FORD MOTOR COMPANY

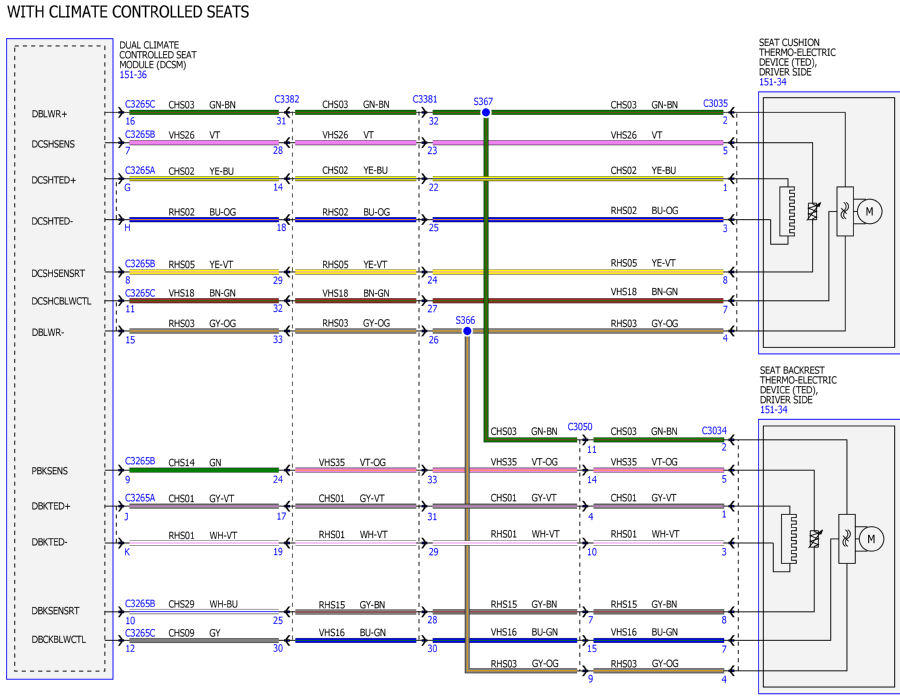

Fig 3: Climate Controlled Seats Wiring Diagram (3 Of 8)
GFDWR31006Courtesy of FORD MOTOR COMPANY

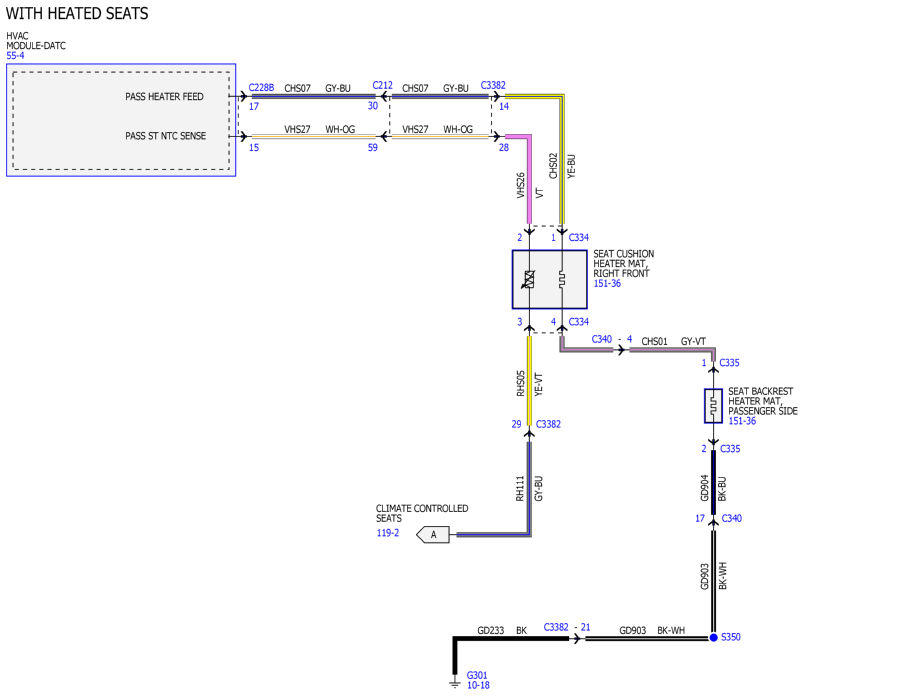

Fig 4: Climate Controlled Seats Wiring Diagram (4 Of 8)
GFDWR31007Courtesy of FORD MOTOR COMPANY

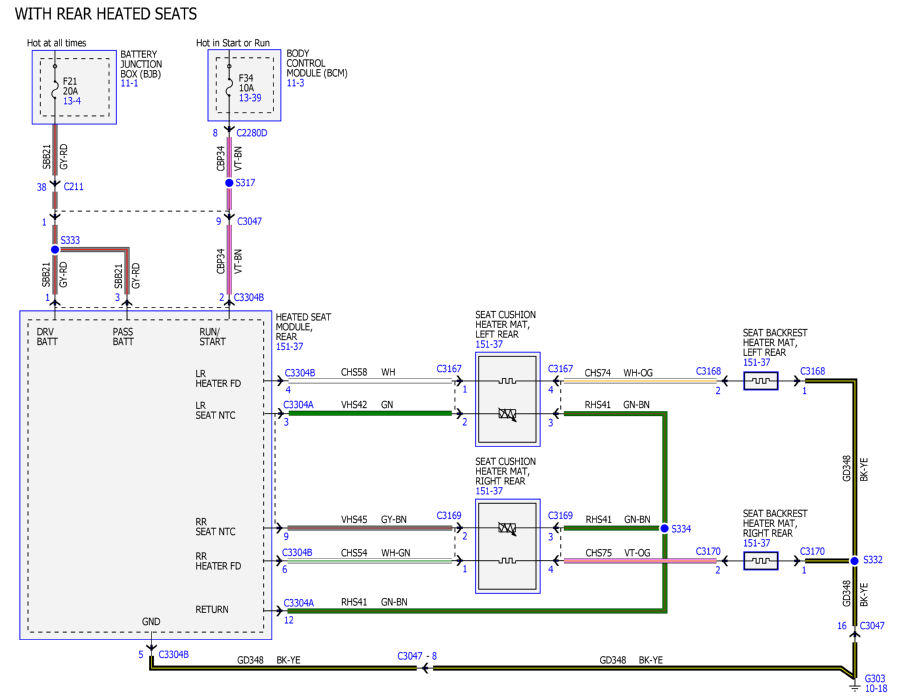

Fig 5: Climate Controlled Seats Wiring Diagram (5 Of 8)
GFDWR31008Courtesy of FORD MOTOR COMPANY

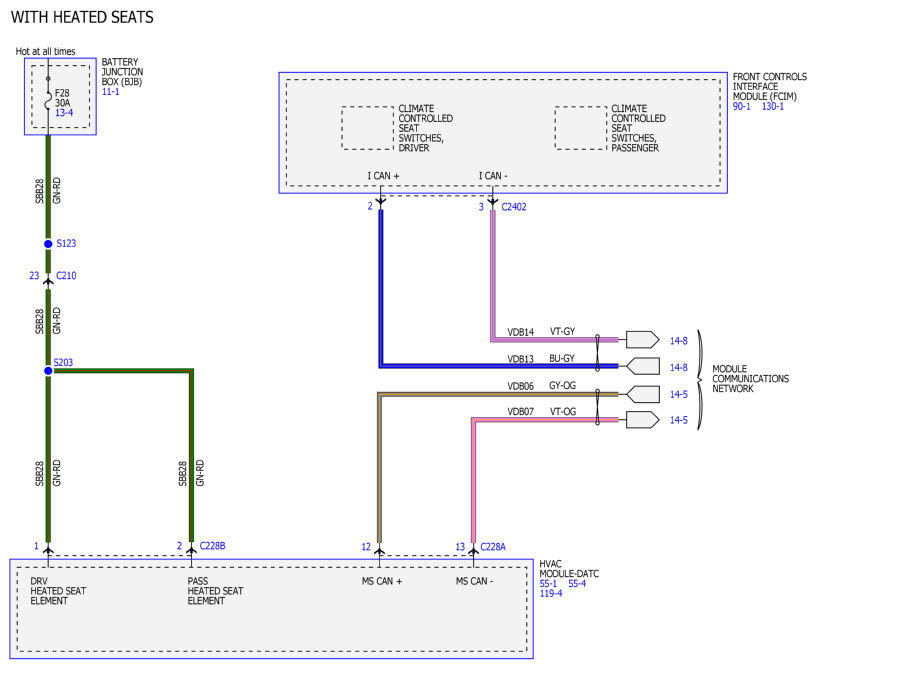

Fig 6: Climate Controlled Seats Wiring Diagram (6 Of 8)
GFDWR31009Courtesy of FORD MOTOR COMPANY

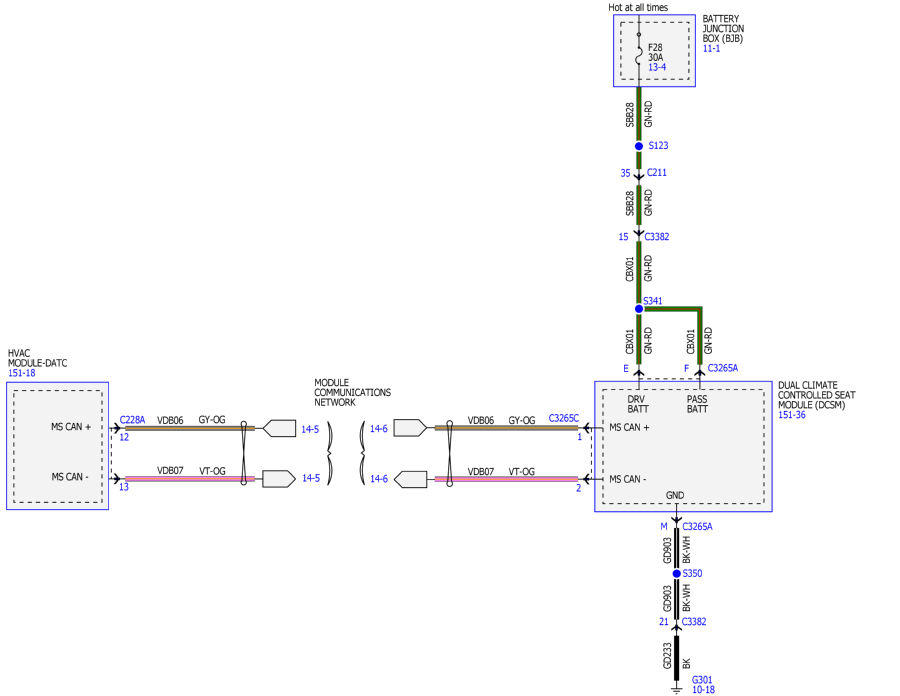

Fig 7: Climate Controlled Seats Wiring Diagram (7 Of 8)
GFDWR31010Courtesy of FORD MOTOR COMPANY

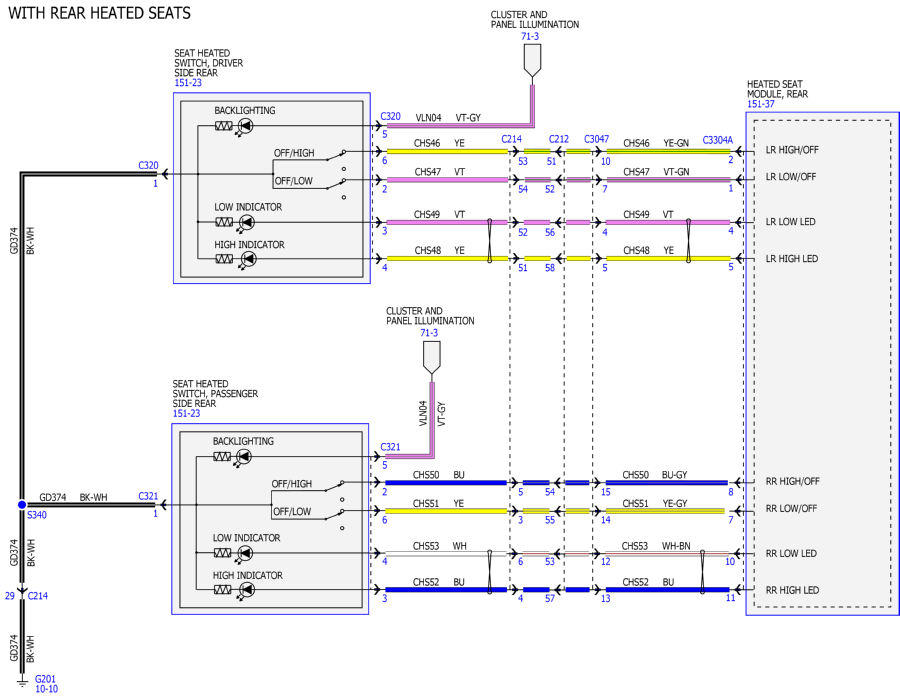

Fig 8: Climate Controlled Seats Wiring Diagram (8 Of 8)
GFDWR31011Courtesy of FORD MOTOR COMPANY
