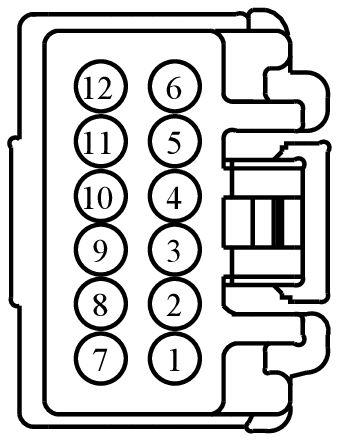

Connector End View (C2998) - JOINT CONNECTOR 11

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2988	JOINT CONNECTOR 11	NA	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-CA|BU5T-14474-ZA	Not Available
BU5T-14474-ZA|DU5T-14474-CA	Not Available
DU5T-14474-CA	Not Available
BU5T-14474-ZA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VDB13 (BU)	26	CTRL MOD. - MULTIMEDIA CAN BUS HIGH	DU5T-14474-CA|BU5T-14474-ZA
1	VDB13 (BU-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS HIGH	SYNC Gen 1	DU5T-14474-CA|BU5T-14474-ZA
2	VDB13 (BU-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS HIGH	SYNC Gen 1	BU5T-14474-ZA|DU5T-14474-CA
2	VDB13 (BU)	26	CTRL MOD. - MULTIMEDIA CAN BUS HIGH	BU5T-14474-ZA|DU5T-14474-CA
3	VDB13 (BU)	26	CTRL MOD. - MULTIMEDIA CAN BUS HIGH	DU5T-14474-CA
4	VDB13 (BU)	26	CTRL MOD. - MULTIMEDIA CAN BUS HIGH	DU5T-14474-CA
5	VDB13 (BU-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS HIGH	BU5T-14474-ZA
6	VDB13 (BU-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS HIGH	BU5T-14474-ZA
7	VDB14 (VT)	26	CTRL MOD. - MULTIMEDIA CAN BUS LOW	DU5T-14474-CA|BU5T-14474-ZA
7	VDB14 (VT-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS LOW	SYNC Gen 1	DU5T-14474-CA|BU5T-14474-ZA
8	VDB14 (VT-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS LOW	SYNC Gen 1	BU5T-14474-ZA|DU5T-14474-CA
8	VDB14 (VT)	26	CTRL MOD. - MULTIMEDIA CAN BUS LOW	BU5T-14474-ZA|DU5T-14474-CA
9	VDB14 (VT)	26	CTRL MOD. - MULTIMEDIA CAN BUS LOW	DU5T-14474-CA
10	VDB14 (VT)	26	CTRL MOD. - MULTIMEDIA CAN BUS LOW	DU5T-14474-CA
11	VDB14 (VT-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS LOW	BU5T-14474-ZA
12	VDB14 (VT-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS LOW	BU5T-14474-ZA
