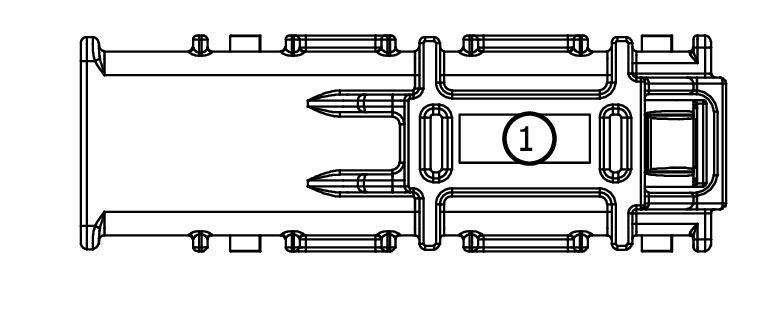

Connector End View (C2298) - BODY CONTROL MODULE (BCM)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2280G | BODY CONTROL MODULE (BCM) | 14290 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BC3T-14474-CB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBF16 (RD) | 06 | FUSE - 16 | BC3T-14474-CB | ||||
