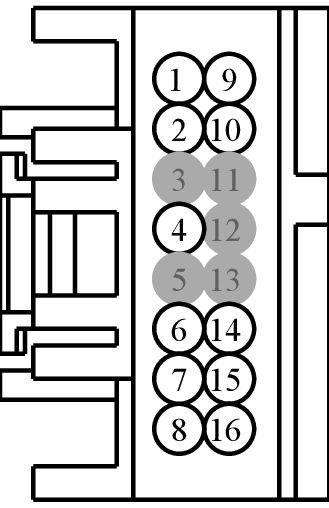

Connector End View (C218B) - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218B	CLOCKSPRING	GY	PIA	14A644	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT	N/A
2	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT	N/A
3	*	*	Not Used	N/A
4	CRH02 (BU-WH)	20	SWITCH - HORN	N/A
5	*	*	Not Used	N/A
6	LX105 (BK-BU)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
6	LX105 (GN-RD)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
7	LX106 (BK)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4	N/A
7	LX106 (GY-OG)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4	N/A
8	RX101 (BU-BK)	20	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)	N/A
9	VLN04 (BN)	20	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
10	RRH02 (WH)	20	GROUND - STEERING WHEEL	N/A
10	RRH02 (PK)	20	GROUND - INSTRUMENT PANEL STRUCTURE	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	LX103 (RD)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
14	LX103 (GN)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
15	LX104 (OG)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
15	LX104 (VT)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
16	RX102 (BU-RD)	20	SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-968

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DPB

Gauge:

18

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Module - Reverse Park Aid (RPA)
• Radio
• Switch - Power Window - Driver
• Switch - Reverse Park Aid
